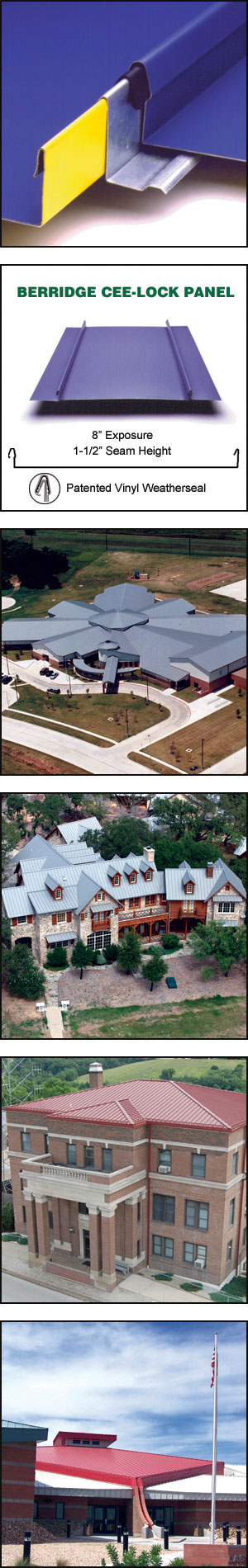

The Berridge Cee-Lock Standing Seam Metal Roofing System is an integral snap-lock panel with a patented vinyl weatherseal inserted into the snap-lock seam to protect from water siphoning and flooding. The Cee-Lock Panel is installed over solid sheathing and may be site-formed in continuous lengths with Berridge's CL-21 Portable Roll Former. Berridge Cee-Lock Panel is available in 24-gauge and 22-gauge in all of Berridge's prefinished colors as well as Satin Finish and Acrylic Coated Galvalume® .
- 16-1/2" exposure with 1-1/2" standing seam height
- Integral snap-lock seam design
- Concealed fasteners
- Patented vinyl weatherseal (optional)
- Continuous length panels when site-formed using Berridge's CL-21 Portable Roll Former
- Wide selection of LEED 2.2 and Energy Star compliant, Kynar 500® or Hylar 5000™ Berridge Colors with 20-Year Paint Finish Warranty
- Consult BMC for Watertightness Warranty availability
- UL 90 Wind Uplift & UL Fire Resistance Listed
- Florida Product Approval: FL 11269.1 R1, FL 11269.2 R1, FL 11269.3 R1, FL 11269.4 R1, FL 11269.5 R1, FL 12457.1, FL 12457.2, FL 12457.3, FL 11241.1 R1,
- ASTM E 1592 Tested
- ASTM Air & Water Tested
- Miami-Dade NOA: 07-0813.09
Visit www.berridge.com for more information including: product data on standing seam metal roofing systems, metal wall panels and other metal products, complete installation details (PDF), CADD details (DWG), color selection information and much more.
