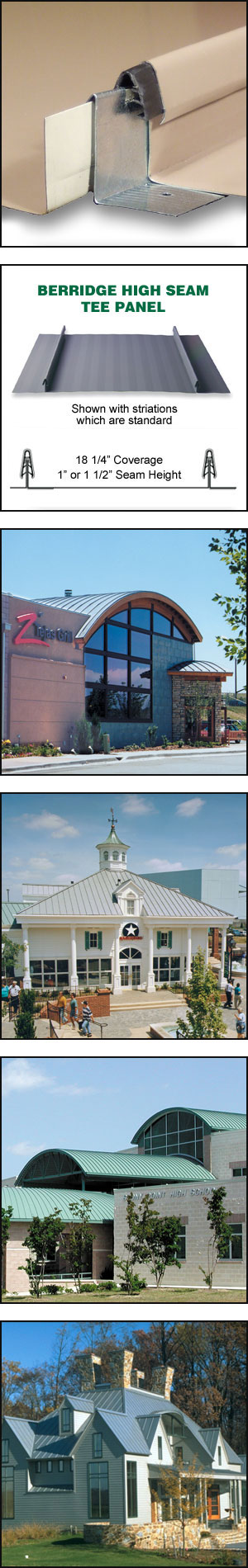

Berridge's High Seam Tee-Panel provides concealed fasteners and uses a patented vinyl weatherseal as an integral part of the Snap-On Seam to protect from water siphoning and flooding. It may be curved on-site using Berridge's SS-1421 Portable Roll Former with standard striations. Berridge High Seam Tee-Panel is available in 24-gauge and 22-gauge in all of Berridge's prefinished colors as well as Satin Finish and Acrylic Coated Galvalume® .
- 18-1/4" exposure with a 1" or 1-1/2" standing seam height
- Concealed fasteners
- Patented, extruded vinyl weatherseal as integral part of the snap-on seam prevents water siphoning or flooding over seam
- Site-form continuous, straight or curved panels using Berridge's SS-1421 Roll Former
- Standard Striated Profile
- Wide selection of LEED 2.2 and Energy Star compliant, Kynar 500® or Hylar 5000™ Berridge Colors with 20-Year Paint Finish Warranty
- Consult BMC for Watertightness Warranty availability
- Florida Product Approval: FL 11422.7, FL 11422.8
- UL 90 Wind Uplift & UL Fire Resistance Listed
- ASTM Air & Water Resistance Tested
- ASTM E-1592 Tested
Visit www.berridge.com for more information including: product data on standing seam metal roofing systems, metal wall panels and other metal products, complete installation details (PDF), CADD details (DWG), color selection information and much more.
