CUBICLE CURTAIN TRACK
19100/ 19200 Series Cubicle Track

Salsbury Industries' cubicle curtain track and carriers are designed to permit quick and quiet movement of privacy curtains. Both the 19100 series and 19200 series track are available in straight pieces (19101S / 19201S) or curved pieces (19101C / 19201C) customized to your requirements. All bends are formed with a 12'' inside radius. Lengths over 16' require the use of a splicer.

The minimum distance between two 90º bends is 36". Both systems are engineered for ease of installation. Approximate shipping weight is 1lb. per 3' of track.

Typical Track Configurations
Track is typically 6" wider across the end of the bed than the spacing along the wall to more closely join the end of a straight track with the radius of the curve on the adjacent track.

19101 track is an anodized aluminum extrusion measuring1-3/8'' W x 3/4'' H and is considered the industry standard.

19103 carriers glide on the inside channels of the track on two 5/8'' nylon self lubricating wheels. The wheels are then attached to 1/8'' nylon axles on the carriage. An attached nickel plated steel bead chain (available in standard or custom lengths) is connected to a 1-7/16'' stainless steel hook.

19105 end stop fittings are made of 16-gauge anodized aluminum and attach to each end of the track to prevent accidental carrier removal.

19106 snap out fittings are made of 16-gauge anodized aluminum. One is required for each run of track for easy insertion and removal of carriers from installed track. The snap out fitting is installed in the 19105 end stop fitting.

19111 splicer fittings are made from anodized aluminum extrusions. They are used to align two pieces of adjoining track. The external splicer is designed to fit around the outside of the pieces of track to be aligned. Track runs longer than 16' require the use of a splicer.

19201 track is an anodized aluminum extrusion measuring 1'' W x 3/4'' H and is a lighter weight alternative to the 19101 track.

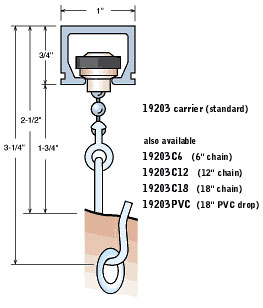

19203 carriers have a self lubricating nylon body that glides along the inside edges of the track channel. It is surrounded by a rubber bumper ring to reduce noise. An attached nickel plated steel bead chain (available in standard or custom lengths) is connected to a 1-7/16'' stainless steel hook.

19205 end stop fittings are made of 16-gauge anodized aluminum and attach to each end of thetrack to prevent accidental carrier removal.

19206 snap out fittings are made of 16-gauge anodized aluminum. One is required for each run of track for easy insertion and removal of carriers from installed track. The snap out fitting is installed in the 19205 end stop fitting.

19211 splicer fittings are made of anodized aluminum. They are used to align two pieces of adjoining track. The internal splicer fits inside the walls of the track. Track runs longer than 16' require the use of a splicer.

Salsbury Industries’ custom made cubicle curtains are fabricated from the finest materials. Curtains are reinforced at stress points to provide extra durability. The width of a curtain is a cut size. The height of a curtain is a finished size. Note that a curtain will not finish the exact size it is specified. It will finish within 3'' of the width and 1'' of the height. There is a normal and legitimate loss of goods in the manufacturing process due to the seaming of panels and the turning of side hems. Curtain widths should be approximately 10% wider than the track to allow for fullness. Curtains typically hang 12-15" above the finished floor.
