Mopec, Inc.
GROSSING WORKSTATIONS

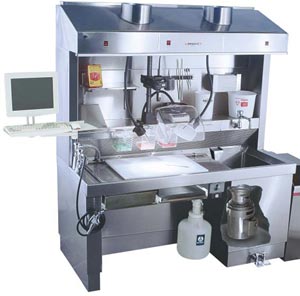

MOPEC’S COMPLETE WORKSTATIONS The "MB" series of Grossing Workstations provide the convenience of a complete work area within a gross dissection/cutting room. Mopec’s "MB" series Grossing Workstations are available in Countertop, Free Standing, and Elevating Models. Mopec’s "MB" series incorporates all necessary pathological functions with the safety of an environment free of toxic formaldehyde fumes. Mopec’s Workstation is constructed of 100% heavy gauge 304 stainless steel with a #4 satin finish. INSTALLATION REQUIREMENTS: The MB-Series Workstations simply set in place. The MB200 will require a hole to be cut into existing countertop to allow the large sink to be recess. This simple procedure can be performed by maintenance personnel. The power supply is a heavy-duty electrical cord that connects to any 115 volt,15 amp electric source. A qualified electrician should be available for installation. A hospital grade plug can be factory installed, at your request, allowing the electrical connection to any standard outlet. MAIN WORK AREA: The main work area has been carefully designed to maximize safety and efficiency. The all stainless steel surface provides a sanitary, easy-to-clean work area. The work surface is sloped slightly into the integral sink to facilitate drainage. The work surface measures 40" long by 19" wide. The Mopec Workstations were designed for the cost-conscious pathology laboratory … but we didn’t compromise the necessary safety features. FUME HANDLING: The Mopec Grossing Workstations have been designed to be flexible to remove formaldehyde fumes by filtration/recirculation or by direct ventilation. The filtration/recirculation system provides an inexpensive method of handling formaldehyde fumes since special ducting is not required. Self-contained fans pull harmful formaldehyde vapors away from the workstation user and through a potassium permanganate filter that eliminates toxic fumes. (As the formaldehyde fumes pass through these screens, they undergo a chemical reaction that turns them into harmless carbon dioxide and water.) POWERFUL FANS FOR FILTRATION/RECIRCULATION SYSTEM: Two fans evacuate the work surface of all harmful formaldehyde vapors into the internal filtering system. Mopec’s Workstation air flow exceeds all required regulations for air movement. This assures your laboratory personnel are not exposed to harmful formaldehyde fumes. DIRECT VENTILATION EXHAUST SYSTEM (No filters required): All of Mopec’s Workstations can be equipped with optional exhaust duct work that connects to the existing ventilation system. Mopec’s engineers will work with your facility’s personnel to make sure you have the proper ventilation to meet required regulations. The duct manifolds will be factory installed and ready to use upon arrival. EASY FRONT FILTER ACCESS – CHANGE FILTERS IN MINUTES! Filters filled with activated alumina impregnated with potassium permanganate (BF001) provide the filtering for the Workstation. The formaldehyde is absorbed on the alumina, then oxidized rapidly by the permanganate into harmless carbon dioxide and water. The filters will last from 6 to 24 weeks depending on your lab activity. CONTROL PANEL The electrical control switches are conveniently located at eye level for quick and easy access. All switches are fitted with a clear covering, protecting them from fluids and moisture. A 115 volt GFCI Duplex receptacle is located under the panel, allowing safe use of electrical devices. ADDITIONAL FEATURES ON MOPEC’S GROSSING WORKSTATIONS • SMALL SPECIMEN SINK
• DEEP SINK
• HIGH INTENSITY LIGHTS:
• DURABLE – WASHABLE RULER:
• CHROME PLATED BRASS WORKSTATION
RINSE:
• ADJUSTABLE SHELF
• COMMERCIAL DUTY 1/2 HP DISPOSAL
• C-FOLD PAPER TOWEL DISPENSER
• MAGNETIC TOOL HOLDER
• FORMALIN CONTAINER
• DICTATION EQUIPMENT STAND
• POLYETHYLENE CUTTING BOARD
• SCALE/BALANCE
HG-SERIES
Dimensions: 60" L x 26" W x 37" H The HG-Series Grossing Workstations are ventilated with Mopec’s Total Down Draft System. This air movement is unique in that it moves air uniformly throughout the work surface. Typical Down Draft systems normally segregate air movement around the perimeter of the drain. Mopec’s Total Down Draft System ventilates the full work area with consistent airflow. The workstation also incorporates a large wash sink, 12" x 12" x 9" deep. The table is provided with the following outstanding features: • Total Down Draft: All Stainless Steel construction with Mopec’s Total Draft Ventilation System. The inner chamber is also equipped with a drain sink. The work surface is a self-supporting perforated grid plate and is fabricated of 16 gauge stainless steel and perforated with 1/2" diameter holes on 1" centers. The grid is designed for easy cleaning with single flanges sealing off any unseen areas that will accumulate bacteria. Hand slots are provided for easy handling. The chamber is also provided with pilot lighted float switch, this warning system will help prevent fluids from entering the ventilation duct. Material finish is a #4 satin finish. • Counter Top: Stainless Steel counters are fabricated with formed edges which are 1-1/4" thick with a marine edge around the perimeter. The counter top is integrally constructed with no parting seams, 12" x 12" x 9" deep sink is fabricated of 18 gauge stainless steel. • Support Pedestal: All Stainless Steel construction. Fabricated of 18 gauge stainless steel, the support pedestal is complete with access doors at each side. The cabinet is fabricated for heavy-duty use. Material finish is #4 satin finish. • Hot/Cold Fixture: The large sink incorporates a hot/cold fixture. • "Perpetual duty" disposal: is air cooled to run continuously. Power switch activates solenoid to continuously feed water to the unit. Stainless steel internal parts prevent corrosion. Swivel impellers ensure the disposal will never jam. Choose from 1/2 HP or 3/4 HP. (optional feature) • Hand spray assembly: features chrome plated fixtures and a high pressure hose with hose hanger. • Sink Rinse Fixture: Opposite the Hot/Cold Fixture is a deck mounted sink rinsing fixture. • Electrical Receptacle: Two, G.F.C.I. protected electrical receptacle, 115/1/60. • Superior construction: TIG welding on all seams and mating sections, ground smooth and regrained to match the #4 satin factory finish. All internal plumbing and electrical lines are factory installed and tested. Utilities hookup is minimal and can be accomplished in minutes. HC-SERIES HC100, HC200, HC300
The HC-Series dissecting table with vent hood is a versatile and economical dissecting table for the pathology and histology lab. This dissecting table is designed to be tied into the existing ventilation system for an efficient and maintenance free ventilated workstation. (Two low profile fluorescent fixtures, waterproof, high wattage. UL listed, NSF listed.) One of its most outstanding safety features is a full length plexiglass splash shield. The safety shield is mounted with a continuous stainless steel hinge and can be pivoted up while placing or removing large tissue samples from the work surface. The work surface is creased toward the sink well for drainage. The sink is normally located in the center but can be located anywhere to suit your needs (please specify if a special location is necessary). Stainless steel type 302 with a #4 satin finish is used throughout unless otherwise specified. The dissecting table with ventilation hood incorporates the design features listed below: • Work Surface: Standard design feature includes a marine edge table top with double flange construction for heavy-duty usage. Sink ledge is flat and independent of the work surface for a neat and sanitary application. Work surface is 14 gauge stainless steel with a #4 satin finish. • Hot and cold water fixture with swing spout faucet complete with convenient wrist blade handles. Vacuum breaker equipped. • A duplex receptacle is provided within the ventilation hood completely wired and ready for use. The receptacle is GFCI type to protect the user. • The frame is constructed of 1-1/2" square tubing, 16 gauge wall. All welded construction with each mating tube having a continuous bead weld, free of burrs and discoloration. Angle gussets located on each corner prevent rocking. Adjustable feet for leveling. • Vent Hood: Fabricated of 18 gauge stainless steel with a #4 satin finish, the hood is complete with vent tie-in collar and full length plexiglass safety splash shield. • Superior construction: Utilizes TIG welding on all seams and mating sections, which are then ground smooth and regrained to match the #4 satin factory finish. • Factory installed Plumbing and Electrical lines: Requires only trade hookup. Mopec, Inc.
|
