Irwin Telescopic Seating Co. P.O. Box 320, US Highway 40 East Altamont, IL 62411 Tel: (618) 483-6157 Toll-Free: (877) 597-1122 Fax: (618) 483-5539 E-mail: sales@irwintelescopicseating.com Web site: http://www.irwintelescopicseating.com

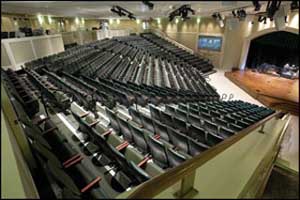

Telescopic Platform Seating Systems PRODUCT PRESENTATION Irwin Seating manufacturers (2) two platform products. The Irwin 4000 series is our most economical platform because it has limited options available. It still offers a heavier duty understructure than typical gymnasium bleachers but its cost savings are achieved through limited options, rises and deck material. Should these limitations not fit the requirements of the facility, the Irwin 5000 series platform will. The series is available as a heavy duty platform that can be customized to fit any need. Both the series 4000 and 5000 have their own specifications. The fold down chair system may be specified with manual, semi-automatic or fully automatic operation. Manual operation permits the raising and lowering of one, two, three or four chair sections. Semi-automatic is spring assisted. The raising and lowering of all chairs per section can be accomplished by a single operator. The locking and hinge system shall be shrouded the entire length of the section. All chairs shall be lowered by the operation of the platform except the first row, which shall be released manually. Fully automatic shall raise and lock all chairs with the operation of the platform. Each row shall rise into the full upright locked and usable position as the platform opens so that partial rows may be used without fully opening all rows. When closing, each row, including the first row, shall close automatically with the operation of the platform. Fully automatic operation allows any operator to open or close the entire system with the push of a button. Standard Dimensions See our catalog in Sweet’s Files or call for standard dimensions. USES and APPLICATIONS Telescopic platforms, with or without attached chairs, are being used to take full advantage of today's multi-use design facilities. Facilities include elementary schools, high schools, drama departments, cafeterias, auditoriums and corporate training rooms, to full event sports arenas. Platform sections can be rectangular or tapered in shape, wall attached, recessed, forward fold, or portable in operation and since they are custom engineered to fit your building needs, they can be provided with special risers and deck materials to meet most any condition.
COMPONENTS and PARTS Quest Chair Irwin Seating manufactures (2) two platform chairs. The Quest chair module is mounted to a folding beam that allows the chair to fold and store on the deck. The chair is furnished with 3/4" safety fold seat and the back articulates forward 4" in the unoccupied position for additional passage. The chairs can be furnished with number and letter plates for identification. They can also be equipped with a folding armrest for added comfort. The chair is available in high-impact one piece, double wall (blow molded) linear polyethylene with the option of padded upholstered seat and back. All types fold to a thickness of 5-1/2" for use on a 10" or greater platform rise. The chair is available in widths of 18"-22" with or without arms, minimum of 19" with arms. Dust covers are furnished on both semi-automatic and fully automatic operation.

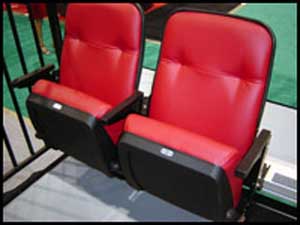

Nose-Mount Marquee Chair The Nose Mount auditorium chair offers the comfort and stability of a fixed auditorium chair with fully upholstered seat and back. The back folds to the rear to allow the platforms to telescope. This is a premium product that offers the very finest in comfort and aesthetics. Contact factory for details. |
