Cubic Mezzanine™ Design Concepts & Options
Cubic Designs offers three basic mezzanine concepts which may be combined or altered to fit your specific application requirements.

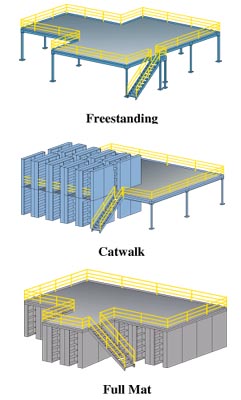

Freestanding
A freestanding mezzanine allows for maximum use of floor level space and full utilization of the mezzanine level. Freestanding mezzanines are available with spans up to 40 feet and more.

Catwalk
Catwalk mezzanines are ideal for increasing the capacity of shelving or rack storage areas. In many cases, existing shelving uprights provide adequate support for framing members. When shelving uprights are inadequate, Cubic columns are used to support the framing members.

Full Mat
Full Mat mezzanines combine features of both freestanding and catwalk styles. The second level open area can be used for bulk storage, office space, employee cafeterias and a number of other applications. Full mat mezzanines can be installed over existing shelving or rack uprights.

Cubic Mezzanines™ Can Be Designed to Include:
Shelving
Rack
Vertical Lifts
Carousels
Flow Rack
In-Plant Offices
Powered Conveyors
And More

Deck Surfaces
Cubic Mezzanines are available with a variety of deck surfaces:

Roof Deck With Plywood Floor
The most economical choice. Comfortable walking surface.

Roof Deck With High Density Wood
Ideal for pallet jacks or other heavy wheel loads.

Roof Deck With Polytexture Floor
When appearance and easy clean-up are important issues.

Heavy-Duty Steel Bar Grating
Catwalks, exteriors or when light & airflow are important.

Roof Deck With Steel Floor Plate
Fire resistant and durable. Ideal for heavy point loads.

Roof Deck With Concrete Floor
Washdown areas. Heavy manufacturing.

Paint Colors & Finishes

• Cubic Mezzanines feature a powder coated paint finish available in 14 standard colors.
• Galvanized and epoxy finishes are also available.
• Custom colors and paint finishes available upon request.

• Designed and manufactured per IBC, UBC and BOCA Codes, using the 7" rise/11" tread standard.
• Stair railing is factory welded to the stair structure to eliminate excess movement caused by a bolted connection.
• "Knockdown" design allows for easy packaging to prevent damage during shipping.
• The Cubic stair design reduces the number of people and the size of equipment required for installation.
• Typical stair widths can vary from 37" to 48" using the standard design. Special stair widths are also available.
• Closed risers are available for modesty. Modesty panels can also be applied for the stair railing.

• Patented railing systems with multiple rails are available to meet your customer's safety requirements as well as all building codes.
• Cubic Mezzanines can also be equipped with swing or sliding gates that offer unique features to address total safety and operational efficiency.
