SRS® Structural Standing Seam Roof Systems

CENTRIA SRS Roof Systems provide clean, unbroken lines, minimum of exposed fasteners, continuous transitions. Long panel lengths eliminate transition flashing and enhance weather resistance.


SRS 2 - Structural Standing Seam Roof System

Description
The CENTRIA SRS 2 Structural Standing Seam Roof System is a mechanically seamed standing seam roof featuring an integral batten. It can be roll-formed in the field for continuous long panel lengths and provides excellent weathertightness and an attractive appearance in a wide range of industrial, commercial, and architectural applications.

Features

  • 2" nominal height
  • 12", 16", and 18" panel widths available
  • Field-formed continuous lengths available
  • Factory formed panel lengths to 45'-0"
  • Standard planked pan; Optional pencil beads
  • Integral, mechanically-seamed batten
  • 20, 22, and 24 gages available
  • G90 Galvanized base material, optional Galvalume®;*
  • One-piece or two-piece attachment clips
  • Minimum slope 1/2:12 without endlaps, 1:12 with endlaps
  • UL 580 Class 90 Wind Uplift Rating; Tested in accordance with procedures established ASTM E 1592
  • Available in full CENTRIA color palette, the industry's widest selection of colors.

*Galvalume is a registered trademark of BIEC International, Inc.


SRS 3 - Structural Standing Seam Roof System

Description
The CENTRIA SRS 3 Structural Standing Seam Roof System is a mechanically seamed roof system that features a separate, continuous batten. It can be field-formed for long panel lengths and is used in a wide range of architectural, industrial, and commercial roof applications.

Features

  • 3" nominal height
  • 12", 16", and 18" panel widths available
  • Factory-formed lengths available to 45'-0"; Field-formed continuous lengths available to 220'-0"
  • Standard planked pan
  • Separate continuous batten
  • 18*, 20, 22, and 24 gages available
  • G90 Galvanized base material, optional Galvalume®*
  • One-piece or two-piece floating attachment clips
  • Mechanically seamed
  • Minimum slope 1/2:12 without endlaps, 1:12 with endlaps
  • UL 580 Class 90 Wind Uplift Rating; Tested in accordance with procedures established ASTM E 1592
  • FM 1-90 approval over open purlins or isoboard and deck
  • Dade County Approval
  • Available in full CENTRIA color palette, the industry's widest selection of colors.

*18GA panels require 20 0122 G8 batten.


Curved SRS 3 - Structural Standing Seam Roof System

Description
CENTRIA's curved SRS 3 Structural Standing Seam Roof System lets you add "curve appeal" to any project. Its striking lines, smooth and unbroken, let you explore dramatic roof designs that transcend the everyday.

Versatile. Beautiful. Enduring. With its proven record of long-term performance, the SRS 3 system offers more than just the enhanced aesthetics of a standing seam roof -- it offers versatility, simplified installation, maximum weathertightness and improved life-cycle costs over competitive systems. Its 3" standing seam creates a bold look while the separate, mechanically seamed batten provides exceptional resistance to weather and severe wind conditions.

Features

  • Clean, unbroken, symmetrical lines with concealed clips and continuous transitions
  • Crimp-free curving process provides smooth sight lines
  • Long panel lengths eliminate endlaps and improve weather resistance
  • 16 gage, two-piece clip and panel interlock design allows unimpeded thermal movement
  • On-site mechanical seaming ensures weather resistance, enhances appearance
  • 20 gage panels available for use in areas where wind loads may be extreme
  • Walk-down curves available in 22 gage steel to a radius of 200' or greater
  • Machine curves available in 0.040" aluminum and in 24, 22 and 20 gage galvanized or galvalume steel with a minimum radius of 20' for aluminum, 30' for steel and 40’ for stainless steel. Consult CENTRIA about other substrates.
  • 12", 16" and 18" widths
  • Roof panel curving performed on-site or in the plant, using CENTRIA supplied equipment
  • Available in full CENTRIA color palette, the industry's widest selection of colors.

Installation

  • SRS 3 curved roofs are fast and easy to install, helping you save time and money.
  • Concealed clips hold roof securely in place while permitting thermal movement
  • Long span capabilities can reduce support steel requirements
  • Continuous long-length panels available to eliminate endlaps

Test Results
CENTRIA SRS 3 roof panels meet or exceed testing guidelines for the following performance tests:

  • UL 580 Class 90
  • FM 1-90
  • UL 263 for fire resistance
  • ASTM E-1680 for air infiltration
  • ASTM E-1646 for water infiltration
  • ASTM E-1592 for wind uplift

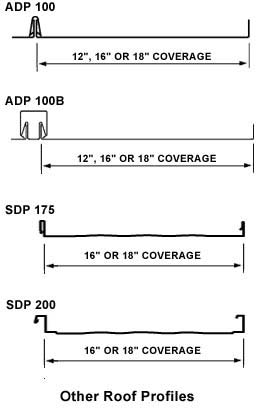

Other Roof Profiles
CENTRIA Architectural Design Panels (ADP) for Roofs
CENTRIA's family of ADP Systems for roofs provide an economical solution to a wide range of standing seam roof applications in architectural, commercial, and industrial applications. They are ideal for mansards and fascia and are available with striated or flat surfaces to match a variety of design and aesthetic requirements.

ADP Systems feature snap-on battens which reduce installation time and cost, and their non-mechanically seamed design requires no special crimpers or installation tools. Three designs are available for installation on roofs with a minimum 3:12 pitch.

SDP Panels
Also illustrated at right, are the CENTRIA SDP 175 and SDP 200 structural standing seam roof panels. Visit our website, www.centria.com for more information.


Ventilation Systems

Description
CENTRIA vents efficiently exhaust high volumes of air from industrial environments. All ventilation products are available in any standard CENTRIA material and coating, and are subject to the same strict quality and performance requirements as all CENTRIA products.

CENTRIA Continuous Ridge Ventilators (CRV) are energy-saving products that use gravity to provide maximum air flow.

  • Throat openings from 2'-0" to 20'-0"
  • Weathertight, low-maintenance, self-cleaning
  • Accessories include dampers, screens, and operators

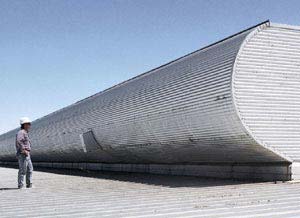

CENTRIA Continuous Clamshell Ventilators (CSV) function like CRVs while offering increased capacities.

  • For extreme heat areas, throat opening of up to 32'-0" are possible using double CSVs on a monitor roof
  • Throat openings from 8'-0" to 16'-0"

CENTRIA Small Streamline Ventilators (SSV)

  • Factory assembled in 10'-0" sections
  • Fixed or operable dampers

CENTRIA's Technical Service Team is available to perform site analysis, taking into consideration building size and heat load, to help you determine proper vent size and location.
