Exposed Fastener Panels

Description
CENTRIA's field assembled exposed fastener panel systems are the most versatile and widely utilized metal panel systems for wall and roof applications. They are used on virtually every type of structure, from mills and warehouses to schools and office buildings.

Insulated and uninsulated systems are available in a wide range of designs and colors. When insulated, the system is comprised of an exterior profile panel and an interior liner panel.

Features

  • Exceptional versatility enables use as exterior or interior walls, roofs, liners, or soffits.
  • Horizontal or vertical rib designs for varied visual profiles
  • Insulation availability to meet many different levels of thermal protection
  • Strong 24-18 gage, G90 galvanized steel construction for various load and span requirements. Aluminum, Galvalume and stainless steel are available as options.
  • Outstanding span capability which reduces structural framing requirements
  • Curved architectural panels (the CENTRIA CAP System®) are available to meet unique design requirements. CENTRIA Econolap-3/4", Econolap-1/2” CR56 smooth curved panels, and CENTRIA crimp curved ribbed panels let you create smooth, flowing lines and give shape to your boldest wall panel designs.
  • Excellent negative wind and live load capacities help ensure structural stability
  • All-weather installation capability minimizes delays and permits fast-track scheduling
  • Stucco embossed or smooth finishes
  • A wide variety of coatings, colors, and substrates
  • Lengths to 40'-0"

For accessory products and design options, see the “Profile Series Accessory Products” Profile.

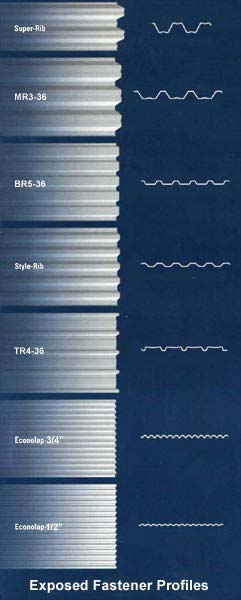

Exposed Fastener Panel Profiles
Super-Rib Exposed Fastener Panel Systems feature the boldest profile of any CENTRIA exposed fastener panel. The system is extremely versatile, strong, offers outstanding span capability, and can be installed as an uninsulated or insulated system to meet a many different requirements for thermal protection and efficiency.

MR3-36 Exposed Fastener Panel Systems are the most economical panel, gage for gage, of all CENTRIA's offerings. They feature long span capability and 36" wide coverage to provide excellent service in a variety of wall and roof applications.

The CENTRIA BR5-36 Exposed Fastener Panel System features a profile with five box-shaped ribs and narrow reveals. It imparts a bold, distinctive look to wall and roof applications.

The CENTRIA Style-Rib Exposed Fastener Panel System features five symmetrical ribs and can be used in a wide variety of wall and roof applications.

The CENTRIA TR4-36 Exposed Fastener Panel System features four 1-1/2" deep ribs on 9" centers which gives an attractive, standing rib appearance and can be used in a wide range of wall and roof applications.

The CENTRIA Econolap-3/4" Exposed Fastener Panel System features a corrugated panel with a depth of 3/4". It is suitable for use in a wide variety of wall and roof applications.

The CENTRIA Econolap-1/2” Exposed Fastener Panel Systems feature a corrugated panel with a depth of 1/2". They are an excellent choice for use in a wide variety of wall and roof applications.

Exposed Rib Panels - Technical Summary

Substrates

  • Standard 24-18 gage G-90 galvanized steel
  • Galvalume® steel aluminum or stainless steel optional

Surface Finish

  • Smooth or Embossed surface texture

Joinery

  • Lock joint design of IW10A-IW41A

Panel Widths

  • 12”

Panel Lengths

  • Up to 40’

Panel Depths

  • Varies
