Now CENTRIA has expanded your options even further with Formawall Dimension Series'
new integrated Construction Specialties Inc. C/S Louvers, C/S Sunshades,
and Patterned Stainless Steel finishes. And for those who prefer
the look of precast our new Duracast® finish will dazzle
you. Explore all of Formawall Dimension Series' options and you'll discover why
it's simply the most versatile building system available.
CENTRIA Formavue windows are specifically designed to provide a high performance
window/panel interface with CENTRIA Formawall Dimension Series panels. They completely
eliminate the problems of coordinating window and metal panel system intersections.
Formavue window systems are attractive, weather resistant and feature a standard
thermal break for enhanced thermal performance. There are four Formavue systems
to choose from, visit our web site to learn more.

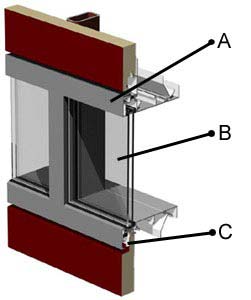

– see drawing at
right
A – Formavue window design eliminates receptor channels,
provides faster jobsite coordination and eliminates interference problems.
B – Inside or outside glazing options allow easier access
for installation, repair or glass replacement.
C – Advanced, thermally-improved design features a thermal
barrier that minimizes through-metal conductivity, enhancing energy efficiency
and providing a more comfortable interior.
- Proven performance from Construction Specialties Inc., a world leader and
innovator in air movement technology
- Fully integrated with Dimension Series joinery, sealing systems and sight
lines
- Simplified installation and framing requirements
- Full line of fixed, drainable and storm resistant louvers
- Location Smart® design service ensures the most economical system solution
- Designed to install easily with CENTRIA Formawall Dimension Series panels
and Formavue® windows.
- Common joinery and design elements provide a seamless exterior package that
is tested to meet your specific wind, rain, air movement and aesthetic requirements.
- Louver designs have been tested to meet or exceed AMCA (Air Movement and Control
Association) performance requirements and/or BSIRA (Building Services Research
and Control) testing standards.
- Designs can also be furnished to meet the stringent requirements of the Dade
County, Florida, Building Code.
- C/S Integrated louvers are available in the same range of CENTRIA finishes
as our Dimension Series panels and Formavue windows. CENTRIA's Colorstorm®
palette offers more than 100 colors, the industry's widest selection.
C/S integrated louvers are available in 4", 6" and 7" depths, in
fixed, drainable and storm-resistant designs. Storm-resistant designs are up to
100% effective in stopping rain from entering a building or equipment enclosure,
and ten times more effective than drainable louver designs.
All Construction Specialties Section 10200 louver specifications conform to
the Masterspec 2000 format.
Contact CENTRIA for specific model availability and performance data.
- Fully integrated with Formawall Dimension Series® Panels, sealing systems
and thru tube structural supports
- Single source responsibility
- Specially designed integral connection
- Broad selection of blade and fascia shapes
- Proven performance from Construction Specialties, Inc. - a world leader and
innovator in passive solar control
- Dimension Series Vapor Barrier/Liner is kept in tact to provide complete air
and water resistance.
- Dimensions Series thru tube structural supports carry the loads.
- Specially designed aluminum castings provide for a seamless thermally broken
connection.

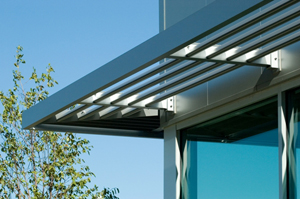

Standard C/S Integrated Sunshades are available in a broad range of fascia and
blade shapes. The sunshades are available in spans up to 10’0” and
cantilevers up to 5’0”. Contact CENTRIA for other options, complete
designs and specifications.
|
