CENTRIA Formawall Dimension Series is the only wall system that provides both advanced thermal efficiency and moisture control in a single panelized component. This extraordinary performance, combined with integrated wall components—such as windows, louvers and sunshades—and the system's ability to provide designers virtually unlimited possibilities in form, color and texture, make Formawall Dimension Series today's preferred metal wall system.
Compared to traditional multi-component wall construction—typically requiring several separate components including: a rainscreen, an air barrier, exterior gypsum sheathing, fiberglass insulation and a vapor barrier—Formawall Dimension Series only requires one component to create a wall with superior thermal efficiency and moisture control in any environment.
- May be installed horizontally or vertically
- Available in a variety of interchangeable reveals, thickness and profile configurations
- Concealed clips, fasteners and sealants plus vertical dry gaskets provide a clean, uninterrupted appearance
- Factory foamed-in-place core to ensure no insulation gaps within the panel
- Panels integrate with CENTRIA Formavue™ window systems and are compatible with most other glass wall and window systems
- Pressure-equalized horizontal joinery to help prevent water infiltration
- Extruded aluminum or factory-formed metal trim available
- Optional Pressure Equalized Vertical Seal Plate
- Panels can be easily curved
- Mitered panels permit clean, sharp corners, beam and column wraps
- Trimless ends eliminate overlapping trim at panel end details
- Thermal break between face and liner offers efficient panel R-values
- High strength panels offer increased span capability and save support costs with less framing required
- Lightweight- as low as 2.7 psf- easy to handle and install and minimizes foundation load
- Aluminum, stainless, striated, smooth, embossed and precast-like surface treatments available
- Cradle-to-Cradle Silver Certification
- Integrated louvers and sunshades available
- Standard 22/26 gage G-90 galvanized steel face and liner with HCFC-free polyurethane or polyisocyanurate foam-insulated core
- Optional gages available- consult CENTRIA
- Optional stainless steel face sheet, 304 stainless steel, 22 or 20 gage, smooth, embossed or striated
- Optional .040"[1mm] Aluminum Face (2"[51mm] thick only), flat embossed or smooth striated
- Horizontal oriented panel- Rainscreen, pressure-equalized and drainable joinery, 1/2" [13mm], nom. joint- standard
- Vertical oriented panel- Double tongue-and-groove, 1/8" [3mm] nom. joint- standard
- Optional PE Vertical Seal Plate
- Exterior- Non-directional embossed flat or striated; smooth or flat striated
- Interior- Non-directional embossed planked or flat; smooth planked
- Advanced Fluorofinish PVDF, metallic and mica color coatings in standard and custom colors
- Duragard and Duragard Plus premium high build architectural coatings
- Duracast®- a natural appearing textured finish
- New Versacor Ultra Premium Multi-Layered Coating System

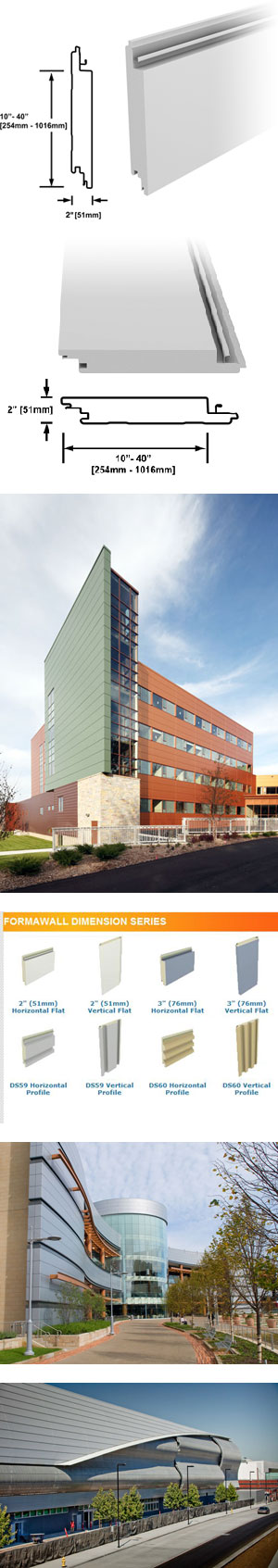

- Available from 10" [254mm] to 40" [1016mm]
- Smooth- 16' [4.88m] max.
- Embossed Striated – 37' [11.28m] max.
- Embossed – 37' [11.28m] max.
- Smooth Striated- 20' [6.10m] max.
- Duracast – 28' [8.53m] max.
- 2" [51mm] with 1-3/16" [30mm] deep reveal- standard
- 3" [76mm] with 2-3/16" [56mm] deep reveal
- 2" [51mm] panel with 1/2" [13mm] reveal- R14
- 3" [76mm] panel with 1/2" [13mm] reveal- R21
- BOCA Report, 95-40, 97-42
- SBCCI Report No. 9609
- Fire Tests
- UL Tunnel Test, Subject 723, ASTM E84
- Flame Spread 25 max.
- Smoke Developed, 450 max.
- UL Room Corner Test, UL 1715
- Factory Mutual Approval: FM 4880; 50' High Large Scale Corner Test for Unlimited Height Approval for Walls and Ceilings
- SwRI: ASTM E108 Fire Test
- SwRI: Multistory Fire Test, UBC 26-4
- ASTM D2015; BTU Content Test
- ASTM D 1929; Ignition Properties
- UL Fire Wall Designs: 1 hr., 2 hr., 3 hr., U017,U617, U040, U645, U605
CENTRIA Formawall Dimension Series panels have been tested in accordance with requirements of BOCA National Building and ICBO Uniform Building Codes. Contact CENTRIA for more information.
CENTRIA's new Smart-R™ Wall Solution is a systems that integrates the following architectural design facets into one innovative wall: 3" Formawall®T insulated metal wall panel, FV-600 Formavue® window, Formawall® IMV insulated metal vertical joint.
In-house architectural and structural design professionals are equipped to assist from project inception through completion. Assistance with design specifications, coating selection and engineering enables customers to take full advantage of the design flexibility of CENTRIA products. Installation services are through CENTRIA's certified nationwide distribution network.
