MR-24® Roof System

The MR-24® roof system is specified twice as often as any other standing seam roof system—with over two billion square feet installed since 1969 and lifecycles of 40 years have been achieved. It is the standard by which other metal roof systems are judged.

The MR-24 roof acts like a single steel membrane to protect your entire building with exclusive features that ensure weathertightness—factory punching, a 360 degree Pittsburgh double-lock standing seam and staggered endlaps. All accessories and integrated panels are also engineered for an exact fit.

The MR-24 system offers complete design flexibility and can be used in conventional steel structures using:

  • Z-purlins
  • Truss purlins
  • Bar joists
  • Retrofit subsystems

Available with the best roof warranty in the industry—25 years against weathertightness as well as perforation—the MR-24 roof system is the best insurance for the long life of your building.


Profile:
  • 24" wide
  • 2 major 2" high corrugations
  • Cross flutes on 6" centers reduce wind noise and improve walkability
  • Roof slope minimum 1/4" in 12"
  • 24, 22 gauge
Key Attributes (MR-24):

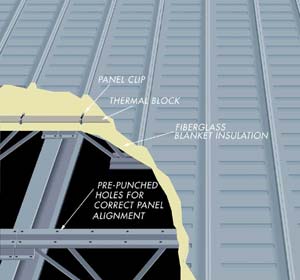

  • Factory punching ensures precise alignment
  • Mechanically seamed 360°
  • MR-24 roof clip is super-secure, yet allows roof movement
  • Splices over supporting steel for strength
  • Staggered panel splices prevent exposed seams
  • Butler Scrubolt™ fasteners have twice the pullout strength of self-drillers
  • Optional purlin insulation avoids 'thermal short circuit' between purlin
    and roof panel.

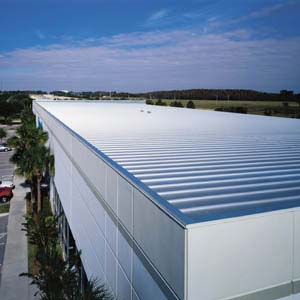

Applications:
  • Large retail
  • Gymnasiums
  • Warehouses
  • Airplane hangars
  • Manufacturing plants
  • Other larger structures
  • Schools

Meets all performance standards
  • UL Class 90 Uplift Rating
  • US Army Corps of Engineers Unified Facilities Guide Specifications (UFGS) for Structural Standing Seam Metal Roof (SSSMR) Systems
  • FM Global Roof Panel System
  • Miami-Dade County, Florida approved
Finish choices
  • Unpainted Galvalume®
  • Butler-Cote™ finish system of 70% Kynar 500® or Hylar 5000® fluoropolymer coating guaranteed not to blister, peel, crack, chip or experience material rust-through for 25 years.
  • Standard colors, custom colors and cool roof color options available

FM Global and UL ratings may result in lower insurance premiums for your new building.

The best roof warranty in the industry

Top engineering and superior construction means we can offer a 25-year warranty, for weathertightness as well as perforation. With reasonable care and maintenance, it is your 25-year solution to roof problems.
