Tectum Acoustical Walls

Tectum interior panels offer an effective, permanent and attractive solution for any kind of activity that produces undesirable noise levels within an enclosed space. They are abuse resistant and are able to withstand the impact of thrown or kicked balls in gyms, yet are lightweight.

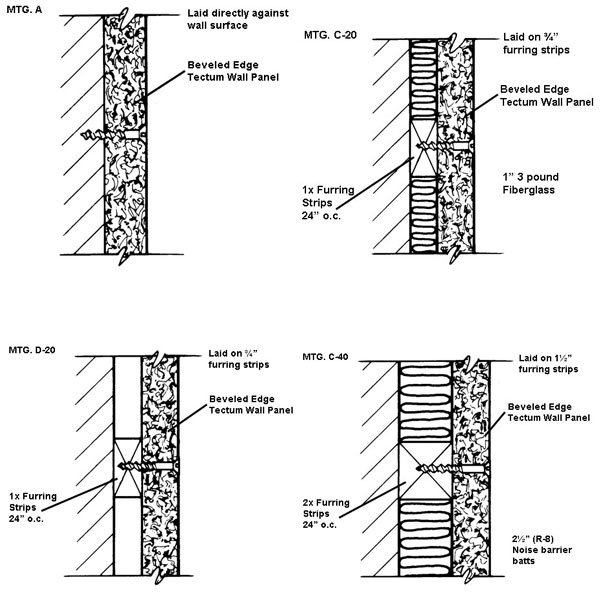

Tectum acoustical panels are easy to install in new construction and in existing buildings for effective sound control. Up to 1.00 NRC can be achieved. Furring strips installed horizontally (when using vertical panels) are recommended and should be a maximum of 24" o.c.

Tectum interior panels are available 1", 1 1/2" and 2" thick in widths of 23 3/4", 31 3/4" and 47 3/4" with long edges beveled. 1 1/2" and 2" panels are also available with T&G edges in widths of 23", 31" and 47" for interlocking continuous paneling. 4' to 12' lengths are available in 12" increments. Tectum interior panels are available in natural, painted white or custom colors, and can easily be field painted without losing their acoustical efficiency.

Kerfed and V-Line Wall Panels offer extra value and installation ease plus all the features you expect from Tectum acoustical products. Both are available in natural, factory-painted white, or custom color painted finishes.

Installation of 1" thick Kerfed Wall Panels is fast and economical. Mounting occurs using the concealed attachment method. By inserting the furnished vinyl splines into the kerf, then fastening the splines to the wall or other structure, you have successfully installed your Kerfed Wall Panel. Kerfed panels are not to be used in high-impact areas.

V-Line Interior Panels attach directly for a continuous installation without a seam being visible. The "V" groove is 1/4" deep to match the beveled edges, and the design divides the 2' or 4' wide panel into equal segments approximately 8" wide. Lengths from 2' to 14' are available in 1", 1 1/2" and 2" thicknesses.
