Extra-Heavy Duty Floor Expansion Joint Covers

New to Existing

This Heavy Duty System is Available with a Serrated Cover Plate or Plain Cover Plate; Specify XH4FS / XH4FVS for Serrated or XH4FP / XH4FVP for Plain.

FEATURES

Sliding Aluminum Center Plate with Aluminum Side Cover Plate – Standard Mill Finish
Extruded Aluminum Sub-Channel (6063-TS) Standard Mill Finish
Floor Construction – By Others
Available as 2 Hour Rated System – Balco Fire Barrier Systems are Tested in Accordance with ASTM E 1966 and are Listed with Omega Point Laboratories, Inc. (Contact Balco for Additional Fire Ratings) Movement Capabilities – 100% and 50%

OPTIONAL COVER PLATE MATERIALS

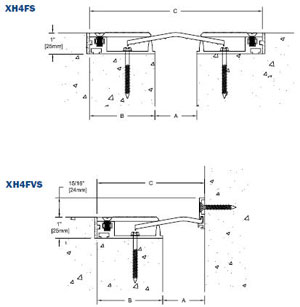

XH4FS / XH4FP / XH4FVS / XH4FVP
Series Floor Cover are Also Available with Stainless Steel and Architectural Bronze Cover Plates. (Base Members are Aluminum Extrusions) Specify SSXH4FS/SSXH4FP/SSXH4FVS/ SSXH4FVP for Stainless Steel, BXH4FS/ BXH4FP/BXH4FVS/BXH4FVP for Bronze.

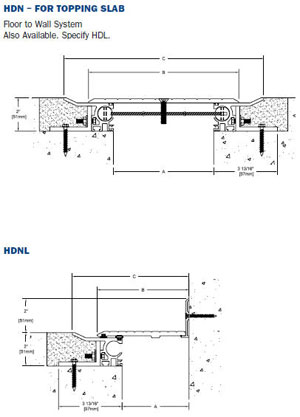

HDN – FOR TOPPING SLAB

Floor to Wall System Also Available. Specify HDL.

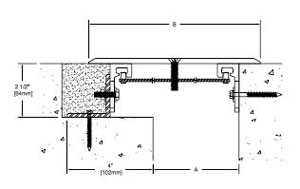

HDNE – HEAVY DUTY FLOOR TO FLOOR / NEW TO EXISTING

Also Available Floor to Wall. Specify HDNEL.
