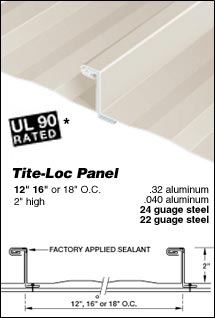

TITE-LOC and TITE-LOC Plus Standing Seam Metal Roofing TITE-LOC Panels combine structural panel performance with architectural panel aesthetics. TITE-LOC Panels are corrective leveled to provide superior panel flatness. A factory-applied sealant bead is applied for additional weather resistance. (minimum panel length is 4 feet) TITE-LOC Panels feature a 2" leg height that requires mechanical field seaming after installation. Panels include a concealed-fastener floating clip system designed to allow for thermal expansion/contraction. For further details, please contact PAC. TITE-LOC Panels are factory-formed to length and field seamed to a 90º lock. Tite-Loc panels have been designed for application on roof slopes as low as 1/2:12 pitch. As an additional labor-saver, the Tite-Loc seamer has been designed to travel both up and down slope during installation. Tite-Loc panels are available in 12, 16 and 18" widths. Materials available include 22 and 24 gage steel; .032 and .040 aluminum. TITE-LOC Panels are produced in a labor-saving one-piece design. TITE-LOC Panels are available with striations. TITE-LOC Panels are available with factory cut eave notching.

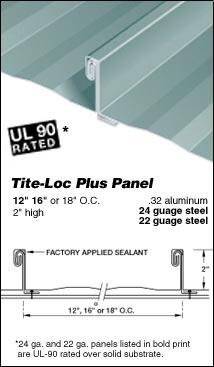

Tite-Loc Plus Panels Tite-Loc Plus Panels are factory-formed to length and designed to be field-seamed to 180º. The panel combines an attractive thin-rib profile with superior structural performance. Tite-Loc Plus panels are designed for application over a wide variety of substrates in slopes as low as 1/2: 12 pitch. Tite-Loc Plus panels are available in 12", 16" and 18" widths. Materials available include 22 and 24 ga. steel; .032 aluminum. Installation TITE-LOC Panels are intended for use in architectural and structural roofing. Substrates may include 5/8” (min.) plywood, nailboard insulation or equal with an underlayment of 30# (min.) roofing felt applied horizontally from eave to ridge. Other substrates may include metal decking, purlins or rigid insulation in conjunction with bearing plates. A minimum 1/2:12 roof pitch is required. Contact Petersen for further detail assistance on projects. Consult a local architect/engineer for compliance with local codes and conditions. UL and FM Designations TITE-LOC Panels carry a UL 90 classification over a wide variety of substrates and assemblies including 5/8” plywood, purlins, and rigid insulation in conjunction with bearing plates (ULConstruction No. 90, 176, 180, 238B, 437, 449, 451, 452, 487). For further details, contact Petersen Aluminum Corp.
TITE-LOC Panels meet the full performance requirements of the ASTM E283/1680 air infiltration test and the ASTM E331/1646 water penetration test. TITE-LOC Panels have been tested for structural performance under uniform static air pressure differences per ASTM E1592. Please contact Petersen Aluminum Corporation for complete test results. Materials
All flashing and trim will be fabricated by manufacturer or qualified fabricator. Flashing shall be PAC-CLAD aluminum (.032-.063 gauge as specified) or PAC-CLAD steel (24 ga. or 22 ga. as specified). A 20 year, non-prorated finish warranty shall be supplied covering finish performance. Petersen Aluminum Corporation |
