Ceiling Suspension Grid: Designer

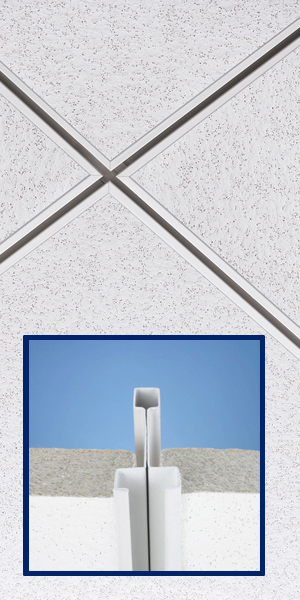

Ultraline 3500 (stab) / 3550 (stab) / 3600 (stab)

Applications
Upscale offices, retail, high bay areas.

Features

• 9/16" width, reveals of 1/8" (3600) and 1/4" (3500/3550)
• Custom module and color available.
• Industry standard for compatibility: acoustical panel, light fixtures and air diffusers.

Benefits

• Cost and visual control
• Sound, fire and seismic performance
• Smooth, monolithic surface plane

Physical Data

Material:
Body – galvanized steel / Cap – n/a

Size:
9/16" W x 1-5/8" H

Fire (3550 only):
Class A fire rated

Performance:
Heavy duty per ASTM C 635 (3500/3600 only)
Intermediate duty per ASTM C 635

Seismic:
Zones – 3, 4
Categories – D, E, F

Warranty:
40 year limited

Sustainability:
Minimum 25% post consumer recycled content, 100% locally recyclable, global/regional manufacture.

Drawings
