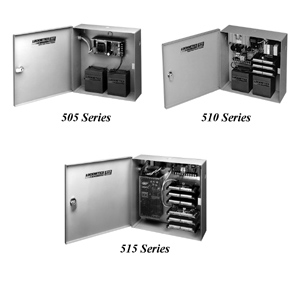

Locknetics Modular Power Supplies are designed to make it easy and cost effective
to power an electrical locking system. The 505, 510, and 515 Series all feature
low voltage DC, regulated, Emergency Interface Relay, filtered power supplies
with a built-in battery charging circuit. A NEMA 1 approved enclosure is universal
throughout the line, measuring 12” (305mm) x 12” (305mm) x 4”
(102mm). Plug-in dual control modules (two independent stations per module), relay
control modules (two independent stations per module), and adjustable relock time
delay modules are features on the 510 and 515 Series. Emergency interface relays
are available on all models for connection to fire alarm systems.
|
| • |
12/24 VDC output voltage |
| • |
Field Selectable |
| • |
1A @12V |
| • |
1A @24V |
|
| • |
12/24 VDC output voltage |
| • |
Field Selectable |
| • |
3A @12V |
| • |
2A @24V |
|
| • |
12/24 VDC output voltage |
| • |
10A @12V |
| • |
5A @24V |

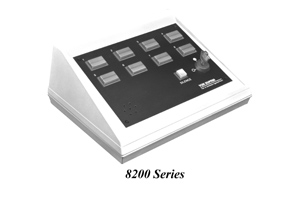

The 8200 Series Consoles provides door control and monitoring for up to eight
zones. The 8204 is used for one to four zones and the 8208 for one to eight zones.
Field installable switches allow for console expandability. Pushbuttons control
and monitor assigned zones and a signaling horn provides an audible alert of any
condition change that is associated with the red indicator lamp. Console control
can be disabled with the security keyswitch.
116 Locknetics’ Universal Controllers provide off-line access control
intelligence to products such as electromagnetic locks, electric strikes, electrified
locks, electrified exit devices, cabinet locks, elevators and doors. When the
Locknetics Universal Controller is coupled with one of these locking products,
and an access credential reader or keypad, a dynamic electronic access control
system is created. The Universal Controller is available in hardwired versions
– CT1000 and CT500 and a battery-powered version – CM500.
| • |
Computer managed with either LockLink or LockLink Express |
| |
|
| • |
Hardwired |
| • |
SmarTime standard |
| • |
1000 users, 1000 event audit trail |
| • |
Supports codes, iButtons,, Mag Stripe cards and HID Proximity credentials |
| |
|
| • |
Hardwired |
| • |
500 audit trail events optional |
| • |
500 users |
| • |
Supports codes, iButtons, Mag Stripe cards and HID Proximity credentials |
| |
|
| • |
Battery-powered |
| • |
500 users, 500 audit trail events |
| • |
SmarTime standard |
| • |
Supports codes, iButtons, and Mag Stripe cards |
