Your Hand Is Your Key Handkey II Access Control Reader HandKey® is the reliable, cost-effective biometric alternative to outdated access control systems. By measuring the unique shape of a user's hand, the HandKey HandReader ensures that only authorized personnel are allowed to enter your secured area. It's quick, convenient and flexible. As a replacement for card and key based systems, HandKeys eliminate the expense of issuing and managing cards or keys. HandKeys may also be used in conjunction with cards to increase security and ease of use. With HandKey, you also have the peace of mind of knowing you've chosen the biometric system that's already proven its reliability in the real world. To learn more, visit handreader.com or call (408) 341-4100. The No-Compromise Solution Recognition Systems, Inc. brings the true security and convenience of biometric technology easily within reach of most access control applications. The HandKey II utilizes field-proven hand geometry technology that maps and verifies the size and shape of a person's hand all in less than one second. The benefits of biometric security were once reserved for high-security applications, but the HandKey II changes that. Tens of thousands of HandKeys are already installed in applications that range from health clubs and day care centers to laboratories and prisons. Its ease of use and reliablity have made the HandKey the biometric standard for the access control industry. The lower cost of the HandKey II now makes the chose even easier. Real security at a resonable price The HandKey II provides the security and convenience you need at a price you can afford, even when compared to card-based systems. Because your hand is your card, HandKey II allows access only to authorized people without the hassles of a card or key. By eliminating cards, you reduce administrative costs while greatly increasing the level of security. Users appreciate the convenience of never worrying about keeping track of a card or key. REAL security
Door Control and Monitoring The HandKey II's design provides the ultimate in system reliablity. Each HandKey II is a complete door controller providing door lock operation, request for exit, and alarm monitoring. All information, including biometric data and decision-making capability resides locally. This ensures your doors are secure and will continue to operate properly even if all communications to the main access control computer are lost. Features of the HandKey II include:
Stand Alone or Fully Integrated Operation
In a network (see diagram), RSI's HandNet for Windows® software links a virtually unlimited number of HandKey units into an integrated door access control system. All alarms and transactions report back in real time to the central computer, making door and alarm monitoring easy and efficient. Activity, user, and system reports can be easily generated. The central computer handles all hand template management automatically, allowing supervised enrollment at any reader and system-wide deletions. An optional internal modem lets you include remote site operations. Ethernet communication is also available. HandKey II Product Specifications Part Number: HK-2 Size: 8.85 in. (22.3 cm.) wide, 11.65 in. (29.6 cm.) high, 8.55 in. (21.7 cm.) deep Weight: 6 lbs. (2.7 kg) Power: 12 - 24 VDC; or 12-24 VAC 50/60 Hzv Operating Temperature Range: 0° C to 45° C (32° F to 113° F) Non-Operating / Storage Temperature Range: -10° C to +60° C (14° F to 140° F) Operating Relative Humidity Range: 20% to 80% Non-Operating / Storage Relative Humidity Range: 5% to 85% Verification Time: Less than 1 second Template Size: 9 Bytes User Capacity: 512 Users (Standard); Internally expandable to 32,512 Users Memory Retention: Up to 5 years via standard internal lithium battery Transaction Storage: 5,187 transactions ID Number Length: 1 to 10 digits Communications: RS-485 (4 wire and 2 wire) RS-232 Serial printer support or network communications Baud Rate: 300 - 28.8K bps Door Controls:
Card Reader Input: Proximity, Wiegand, Magnetic, Stripe, or Barcode Card Reader Emulation Output: Wiegand, Magnetic Stripe, or Barcode Duress Code: 1 digit, user definable Time Zones: 62 User definable time zones; Unlimited Holidays Options:

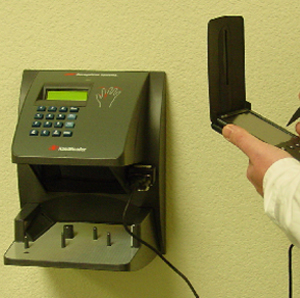

Handkey CM Access Control Reader Get Network Benefits In A Stand Alone System. Recognition Systems' HandKey CM HandReader provides an easy, economical and convenient way to manage multiple access points, multiple users and collect an audit trail without expensive network wiring. The HandKey CM is a stand-alone door controller that can be programmed with LockLink™ or LockLink Express access control management software. It allows users to download information directly to and from the HandReader using a personal digital assistant (PDA) running Windows CE. Benefits
Power Supply and Battery Backup Alternatively, Locknetics 510 and 515 power supplies can provide power and battery backup for both the HandReader and the locking components, yielding a more elegant, cost-effective system solution. Select the Locknetics power supply that provides sufficient output current for all connected components. The HandKey CM uses 0.4A at 12V (0.2A at 24V). Weigand Control Module (WCM) Auxillary Outputs Recognition Systems, Inc. |
