COR series coordinators are designed to coordinate the closing of a pair of
doors. Mounted on the stop strip, the active door level holds the active door
open until the inactive door closes, allowing the active door to close. Structural
steel components are housed in a durable aluminum channel.
- All units feature adjustable holding power, override feature which prevents
damage to doors and frames, and are compatible with Ives Flush Bolts. Units
are available with filler bars, designed to cover the remaining portion of
the stop strip.
- UL/cUL listed for use on pairs of fire doors and have passed rigid testing,
far exceeding industry standards.
- Allows stop mounted hardware to be properly installed without damaging the
COR series coordinator.

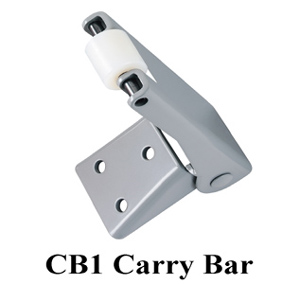

- For those installations where it is possible to open the inactive door before
the active door. The carry bar, mounted on the inactive door, prevents damage
to the doors and other hardware. Nylon roller ensures quiet operation.
- Brass construction. Gravity action arm. Provides effective coordination
for door pairs with astragals on either or both doors.
- Both versions are UL listed for use on pairs of labeled fire doors.

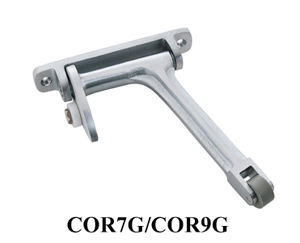

- The COR7G projects 7" (177.8 mm), the COR9G projects 9" (228.6
mm).
