Porter Athletic Equipment Company
2500 South 25th Avenue
Broadview, IL 60155
Tel: (708) 338-2000
Toll-Free: (800) 947-6783
Fax: (708) 338-2060
E-mail: porter@porter-ath.com
Web site: http://www.porter-ath.com

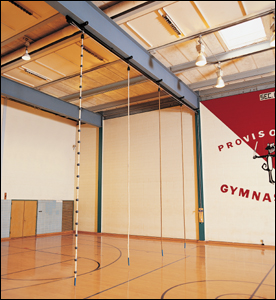

Climbing Rope Storage Track System
Specify No. 90117
Unique rope storage track provides a convenient and neat system for support and
storage of up to four climbing ropes. Each rope is supported by four-wheel ball
bearing carriers (3" dia.), which operate inside an enclosed, heavy-duty
13-gauge track support system. Climbing ropes (4 maximum) may be padlocked in
storage position with optional climbing rope wall lock system.
Gym Floor Cover Installation and Storage System
Specify No. 2400
An economical way to use your gymnasium as a multi-use facility. Protects your
floors and helps reduce maintenance and refinishing expenses. Vinyl-coated floor
cover is a heavy-duty (20.5 oz per sq. yd.) polyester-reinforced fabric with superior
wearability. A 60/40 vinyl coating distribution provides a smooth topside wear
surface and a grid underside for stability on finished floors. Vinyl has a flame
resistance to meet NFPA 701, UL-214 and the California State Fire Marshall Requirements.
Cover material has a seven-year warranty against defects in materials or workmanship.
Contact Porter for more information on cart sizes and optional accessories.
Hemp Climbing Ropes
This 1-1/2" diameter rope contains 12% to 18% special rope lubricant for
long life and is securely attached within a heavy-duty steel fitting for years
of durability. If ordered with rubber knots, the knots are securely anchored every
12".
Soft Dacron Ropes
Porter’s no-twist spun dacron material is easier on the hands than hemp
ropes, while giving just the right feel for a comfortable grip.
Hemp Collegiate Rope
This rope has a special 9" vinyl boot on the end and is custom made to allow
42" of our prime soft hemp to lie on the floor allowing rope to be well secured
as climbing takes place.

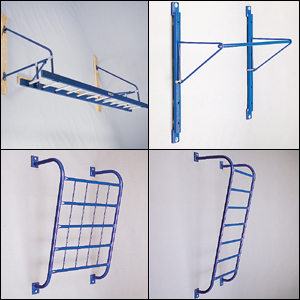

Adjustable Wall Chinning Bar
Specify No. 00197-100
This rugged chinning bar is adjustable for all age groups. A unique design incorporates an adjustment system with spring loaded latch mechanisms for quick and easy height adjustments over an 18" range. Heavy-duty 1-1/16" diameter bar is 3'-6" in length which may be easily removed from the wall for storage or safety purposes. Frame is provided with heavy wall mounting plates and finished in dark blue enamel.
Wall Chinning Bars
Specify No. 00197-200 – 3'6" Long Chinning bar (1-1/16" dia.)
Specify No. 00196-010 – 10' Long chinning Bar (1"dia.)
Specify No. 00196-110 – Continuous Chinning Bar (1" dia. add-on sections
in 10' increments)
The 3'-6" chinning bar offers the same size, features and rugged design as
the No. 00197-100 adjustable chinning bar minus the adjustment feature. The 10'
long bar (No.00196-010) provides a three-position station and allows for continuous
chinning bar installations in10' long increments with the add-on section (No 00196-110).
Blue powder-coated support frames provide a flush mounting to the wall. Bar is
1" diameter solid steel with a durable zinc plated finish.
Wall Attached Ladder
Specify No. 00125-100
Designed to encourage participants of all age levels to develop strength and coordination.
Fabricated of 12' dark blue steel contoured side rails with 12 plated steel rungs.
Complete with wood pads and mounting hardware.
Muscle Grid Climber
Specify No. 00191-100
Heavy-duty construction of fully welded tubular steel. The 30" x 30"
climbing face can be marked for sequence or pattern work. Overall 30" x 44"
frame is provided with heavy wall mounting plates and finished in dark blue enamel.
Arm Ladder
Specify No. 00190-100
Designed for upper body development. Fabricated of heavy-duty fully welded tubular
steel and finished in a dark blue enamel. The rungs are 20" long, 8"
apart allowing total climb of 5'. Design slopes away from wall for added safety.
Stall Bars & Incline Board
Formed steel upright with hardwood rungs with square ends to prevent turning.
Sections are 8' high, 3' wide and are anchored to floor and wall. Ideal for many
types of exercises.
Specify No. 02335-000 Stall Bar Start Section
Specify No. 02335-100 Stall Bar Add Section
Specify No. 02335-200 Stall Bar Start Section with 20" Extended Top Rail
Specify No. 02335-300 Stall Bar Add Section with 20" Extended Top Rail
Specify No. 00133-000 Incline Board
Rope Hoist
Specify No. 00104-000
An important option for all gyms equipped with climbing ropes. This hoist is complete
with wall brackets, ceiling attachment, heavy-duty cord and weight. Installs with
ease and is ready to use.
SportSpec® — Writing a specification has never been easier!
Contact: porter@porter-ath.com for more Information.
