PANEL & SYSTEM DESCRIPTION

PRODUCT NAME:
EnviroGuard™ OSB
Sanitary Wall & Ceiling Panels

OVERVIEW:

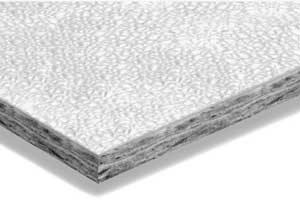

EnviroGuard™ OSB is a composite panel for interior use made by laminating a fiberglass reinforced plastic (FRP) or high density polyethylene (HDPE) skin to a substrate of oriented strand board (OSB). EnviroGuard™ OSB is attached to the substrate (or studs) using construction adhesive in the field of the panel and mechanical fasteners around the perimeter. The system is completed with one piece or two piece plastic (PVC) trim moldings.

BASIC USES & APPLICATIONS:
EnviroGuard™ panels are designed to provide an easily maintained surface for interior wall and ceiling applications. Durable fiberglass reinforced plastic or high density polyethlene skins make these panels ideal for use in kitchens, restrooms, locker rooms, food processing plants, animal shelters, temporary educational facilities or as well as any other application where a washable, low maintenance surface is desired.

GENERAL LIMITATIONS:
EnviroGuard™ panels are intended for interior use as wall or ceiling panels only. Panels may be eligible for consideration as a structural element of a wall assembly depending upon fastening schedule. Other limitations to the installation of EnviroGuard™ OSB panels depends on the specific application.

SYSTEM FINISHES:
EnviroGuard™ OSB panels are offered in either fiberglass reinforced plastic (FRP) or high density polyethylene (HDPE) skins. Both options are available in textured or smooth finishes and as well as a variety of thicknesses. Standard color for all panels is white. However, other colors are available if desired. Minimums may apply. Standard color for PVC moldings is also white.

INSTALLATION OVERVIEW

CONCEALED FASTENERS:
EnviroGuard™ OSB offers a variety of attachment systems depending on the appearance desired (including one piece and two piece moldings). Typically, panels are fastened to the substrate (or studs) using mechanical fasteners around the perimeter of the panel. Construction adhesive is used at the intermediates and in the field of the panel. The joints are finished with PVC moldings that are either snapped or tapped in place, adhered to the face of the panel, or fastened to the panel using small brads (depending on the type of molding selected).

TABLE 1. COMPOSITION & MATERIALS¹:
Component
Standard (in)
Metric (mm)
Fiberglass Reinforced Plastic (FRP)
(or) High Density Polyethylene (HDPE)
Oriented Strand Board (OSB)
.035”
.030”
7/16”
.890mm
.762mm
11.1mm
¹ Listed above are the most common materials selected. FRP skins are available in thicknesses ranging from .035”-.120”. HDPE skins are available in thicknesses ranging from .020”-.250”.

FEATURES & BENEFITS:
As a complete interior cladding system, EnviroGuard™ OSB offers a number of benefits to the building owner, architect, and installer including:

Non-Progressive
Several different options for face applied and one piece moldings allow for easy removal and replacement of panels should damage occur.
Easy Installation
Simple sheets/trim concept easy to understand. Standard carpentry knowledge and tooling is all that is required for installation.
Low Maintenance
Little or no maintenance is required and most grease, dirt, oil, and other foreign material can be easily cleaned from the surface using mild detergents.
Durable
An impact resistant OSB core and a tough plastic face makes these panels ideal for areas which are exposed to heavy abuse and traffic.
Economical
Combining the substrate and the finish into one panel system saves time, as well as labor and material costs for installing contractors. Along with initial budget savings, the easily cleaned surface also saves in long term maintenance costs for facility managers.

TABLE 2. PANEL WEIGHT & THICKNESS:

Component	Standard (in)	Metric (mm)
Panel Weight¹ Nominal Thickness	1.67 lbs/ft² 7/16”	8.15 kg/m² 12mm

¹ Panel weight is based upon an .035” Fiberglass Reinforced Plastic (FRP) face skin.

MATERIAL TOLERANCES:		SIZES AVAILABLE:
Thickness:	±1/32” (±0.79mm)	48” x 96”	(1219mm x 2438mm)
Length Dim:	+0, -1/8” (+0, -3.18mm)	48” x 120”	(1219mm x 3048mm)
Width Dim:	+0, -1/8” (+0, -3.18mm)	48” x 144”	(1219mm x 3658mm)
Squareness:	1/64” (0.4mm) per
	lineal foot	Cut-to-size panels are also available in virtually any size up to 48” x 144”.


EnviroGuard™ OSB is supplied with clean, machine trimmed edges.

PANEL FINISH SYSTEMS:

Available in textured or smooth fiberglass reinforced fiberglass (FRP) or textured or smooth high density polyethylene (HDPE).

STANDARD WARRANTY:

EnviroGuard™ OSB panels are warranted for a period of one (1) year.

CODE CERTIFICATION:

All colors are USDA (United States Department of Agriculture) approvable for incidental food contact. White (standard) panels are approvable for direct food contact.
