PERF-O GRIP^® Grating helps to cut accident rates by providing a safer walking and working surface. The unique surface of large debossed holes and perforated buttons provides maximum slip protection. In addition to providing safety, the resilient surface of PERF-O GRIP^® Grating cushions the impact of footfalls thereby lessening worker fatigue and increasing efficiency.

High load capacity, long life, and high strength to weight performance is achieved through depth of section and structural design. Formed plank with integral side channels support loads with minimum transverse and longitudinal deflection. There are no rivets or pressure joints to break or loosen.

Large Open Area (38% of surface area depending on product size) permits free flow of air, heat and light. Often eliminates need for sprinklers under catwalks and platforms.

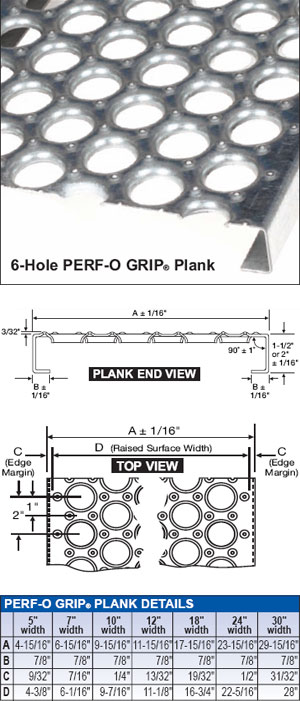

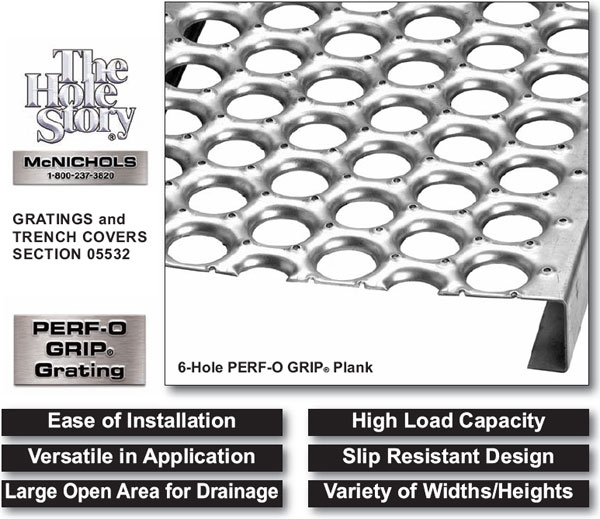

PERF-O GRIP^® Plank Grating

CONSTRUCTION:
Plank with large debossed holes and perforated buttons.

MATERIAL:

Plank:
11 or 13 ga. Galvanized Steel
11 or 13 ga. Plain Steel (special)
16 ga. Stainless Steel 304 (special)
.125" Aluminum 5052-H32

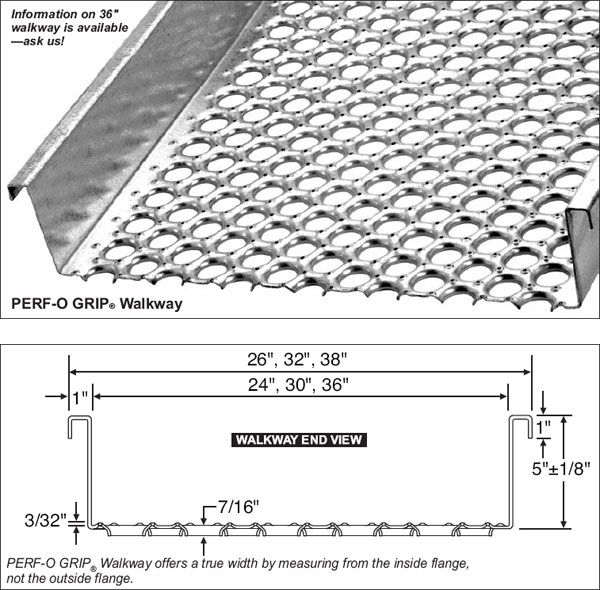

Walkway:
11 ga. Galvanized Steel

HEIGHTS:

Plank:
1-1/2", 2" (3" or 4" special)

Walkway:
5" depth

WIDTHS:

Plank:
5", 7", 10", 12", 18" (24" & 30" special)

Walkway:
24", 30", 36"

LENGTHS:

Plank:
12' (longer by special order)

Walkway:
12'

OPEN:
38% of surface area

AREA:
depending on product size

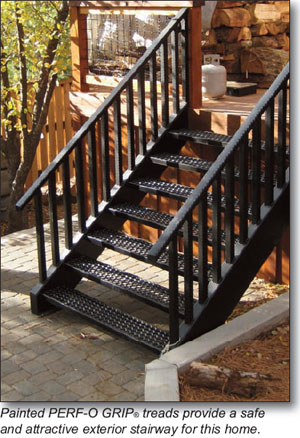

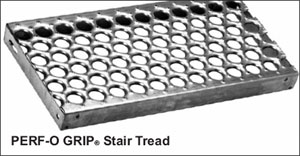

PERF-O GRIP^® Stair Tread

MATERIAL:
11 or 13 gauge Galvanized Steel 11 or 13 gauge HRPO Steel

HEIGHTS:
1-1/2" or 2"

WIDTHS:
5", 7", 10", 12"

LENGTHS:
24", 30" and 36"
