Every year industrial accidents – falls, tripping over debris, slipping
on wet or greasy surfaces – cost millions of dollars in lost man-hours
and production. By reducing accidents, insurance costs can frequently be

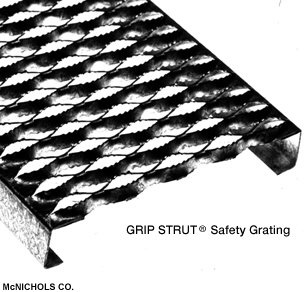

decreased. GRIP STRUT Safety Grating helps reduce accident rates by providing
a safer walking-working surface than any other available grating
product. Its serrated surface gives maximum slip protection and performance
under practically all conditions and in every direction.
In addition to safety, the resilient surface of GRIP STRUT cushions
the impact of footfalls thereby lessening worker fatigue and increasing
his efficiency. GRIP STRUT is your best safety buy. These cost-cutting
and production-improving advantages spell out why.
These non-slip GRIP STRUT surfaces are ideal for inside or outside
locations where mud, ice, snow, oil and detergents can create hazardous
walking conditions. Openings are small enough to catch most falling tools
and other dangerous objects.
Permits quick drainage of fluids, chips, grease and mud. Any ice accumulation
shears easily under normal foot pressure. Open design allows convenient
access for cleaning.
High strength-to-weight performance is achieved through depth of section
and structural design. Bridged struts with integral side channels form
a plank that can support loads with minimum transverse and longitudinal
deflection. There are no rivets or pressure joints to break or loosen.
This sturdy construction provides the advantages of heavy load carrying
capacity with minimal deflection, rugged durability with longer-lasting
performance.
With 4-1/2 inch high side channels, GRIP STRUT Walkways meet OSHA requirements
for toeboards on elevated structures.
Light, easy-to-handle planks make installation simpler and quicker.
They can be handled by one man. Most sections are rapidly bolted, clamped
or welded into place, easily field cut at virtually any angle, or fabricated
to adapt to field conditions.
In addition to low material cost and nominal erection cost, GRIP STRUT
also saves with its long-lasting, rust-resisting materials. Standard mill-galvanized
finish resists corrosion. High-strength aluminum and Types 304 and 316L
stainless steel are available to provide maximum corrosion resistance.
Black unpainted steel available for installations requiring hot dipped
galvanized finish after fabrication. These light-weight but brawny panels
permit substantial reduction in structural steel requirements.
A variety of standard widths and channel heights combine with numerous
non-standard shapes and sizes. One piece construction – no welds or rivets
to fail – minimizes need for plant fabrication.
Steel 12 & 14 gauge (mill galvanized before fabrication)
Aluminum .080" 5052-H32 or .100" 5052-H32
Carbon steel (unpainted and oiled steel) 12 & 14 gauge
Stainless steel 304 16 gauge (316 L special order)

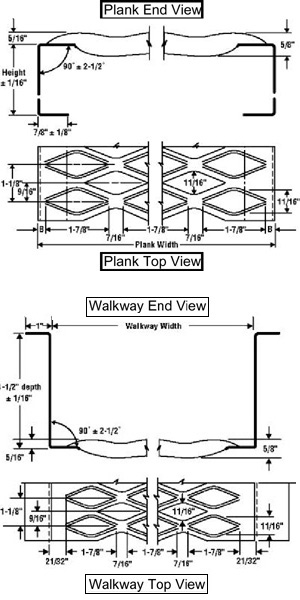

Plank: 1-1/2", 2", 2-1/2", 3"
Walkway: 4-1/2" (depth)
Plank: 4-3/4", 7", 9-1/2", 11-3/4", 18-3/4", 24"
Walkway: 24"
10' or 12'
Cut-to-size
Now available in lengths up to 24'
- Plank
- Stair Treads
- Walkway
- Ladder Rungs
- Billboard Walkway
- Bridge Decking
- Catwalks
- Fifth Wheel Platforms
- Industrial Flooring
- Ladder Rungs
- Mezzanines
- Mining Operations
- Observation Decks
- Offshore Drilling Rigs
- Overhead Storage Space
- Petroleum Processing
- Platforms
- Pollution Control Walkways
- Ramps
- Rooftop Walkways
- Sign Boards
- Skywalks
- Stair Treads
- Walkways
"For the safest walking-working surfaces!"
Simply call 1-800-237-3820, and we will be ready to help you with your
order. We can process your inquiry or order faster, if you have the following
information ready when you call.
- Application or use of product
- Physical requirements
a. loading
b. open area
c. slip resistance
- Quantity number of pieces or planks required
- 5. Material:
Pre-Galvanized Steel 14 or 12 gauge
Black (plain) Steel 14 or 12 gauge
Aluminum 5052 .080" thick (12 ga.) or .100" (10 ga.)
Stainless Steel-Type 304 16 gauge
Stainless Steel-Type 316L 16 gauge (special order)
- Width:
Ladder Rung* - 2-1/2" – 1-Diamond*
Plank -
4-3/4" – 2-Diamond
7" – 3-Diamond
9-1/2" – 4-Diamond
11-3/4" – 5-Diamond
18-3/4" – 8-Diamond
24" – 10-Diamond
Walkway - 24" – 10-Diamond
*Also available as reverse diamond by special order.
- Height:
Ladder Rung – 1-1/8"
Plank – 1-1/2", 2", 2-1/2", or 3"
Walkway – 4-1/2" depth
(all heights are not available for all gauges/widths-please inquire)
- Length:10' or 12' or cut to size
(special lengths to order up to 24')
- Surface: Serrated is standard, non-serrated by special order
- Special requirements or fabrication (e.g., flat stock, forming, reconditioned material, etc.) if any
- Specify any required accessories such as clamps, splice plates, etc.
- Catalog number: Generally 5-6 digits, may have a prefix or suffix
1st numeral denotes number of diamonds to width or plank
3 = 3-diamond (32012)
5 = 5-diamond (52012)
10 = 10 diamond (104512 in this case the first 2 numerals)
2nd & 3rd numeral denote height-plank or depth-walkway
15 = 1-1/2" height
20 = 2" height and so on
45 = 4-1/2" depth (walkway only)
4th & 5th numeral denote gauge
16 = stainless steel
14 = galvanized steel or plain steel
12 = galvanized steel or plain steel or .080" thick aluminum
10 = aluminum .100" thick (10 ga.)
"T" = Stair Tread
"H" = Heavy Duty
"N" = Tread with Abrasive Nosing
"B" = Black (plain steel)
"A" = Aluminum
"S" = Stainless Steel Type 304
"SL" = Stainless Steel Type 316L
"U" = Walkway
32012 = 3-Diamond Plank 2" height 12 gauge galvanized steel
32012-B = 3-Diamond Plank 2" height 12 gauge black (plain) steel
32012-A = 3-Diamond Plank 2" height .080" (12 gauge) aluminum
42016-S = 4-Diamond Plank 2" height 16 gauge stainless steel
type 304
104512-U = 10-Diamond Walkway, 4-1/2" depth, 12 gauge, galvanized
steel
T-32012-N = 3-Diamond Tread with abrasive nosing, 2" height,
12 gauge, galvanized steel
