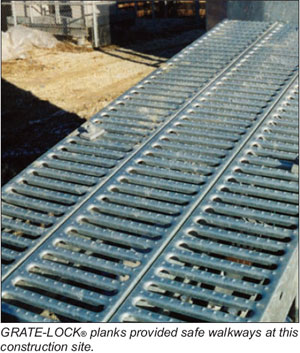

GRATE-LOCK® Grating is an easy-to-install system of interlocking grating planks, treads and accessories that provides safe, sturdy footing for mezzanine floors, platforms, walkways and other applications where non-slip performance is required. Hundreds of solegripping dimples insure a safe surface in all kinds of weather and environments.
GRATE-LOCK® Grating is available with a non-skid textured surface for a safer working surface or a smooth surface for rack decking or wheel traffic.


GRATE-LOCK® Plank Grating

MATERIAL:
Steel 18 & 14 gauge, mill galvanized before fabrication (16 gauge by special order)

HEIGHTS:
1-1/2", 2-1/2", 3", 4"

WIDTHS:
6", 9", 12" (3" Solid filler plank available, FM interlock only)

LENGTHS:
12' (all heights)
20' or 24' (2-1/2", 3", 4" heights only)
Special lengths to order Stair Treads also available

SURFACE:
MS Smooth
MG Traction Grip

HOW TO ORDER/SPECIFY

Simply call 1-800-237-3820 and we will be ready to help you with your needs. Your inquiry or order will process more quickly if you have the following information available when you call.

CONSIDER:
  1. Application or use of product
  2. Physical requirements
    1. Loading requirements
    2. Open Area
    3. Slip resistance
PLEASE SPECIFY:
  1. "GRATE-LOCK® Grating"
  2. Quantity: number of planks or pieces required
  3. Material:
    1. Metal: available Hot Dip Pre-Galvanized Plain Steel
    2. Finish: mill galvanized before fabrication
    3. Gauge: 14 gauge, 18 gauge steel or 16 gauge (special)
  4. Section Width: 12", 9", 6", or 3" filler panel
  5. Height:
    1-1/2", 2-1/2", 3", or 4" (4" supplied FM flange only)
    (3" & 4" heights are available by special order)
  6. Length: 12', 20' or 24' (other lengths to order)

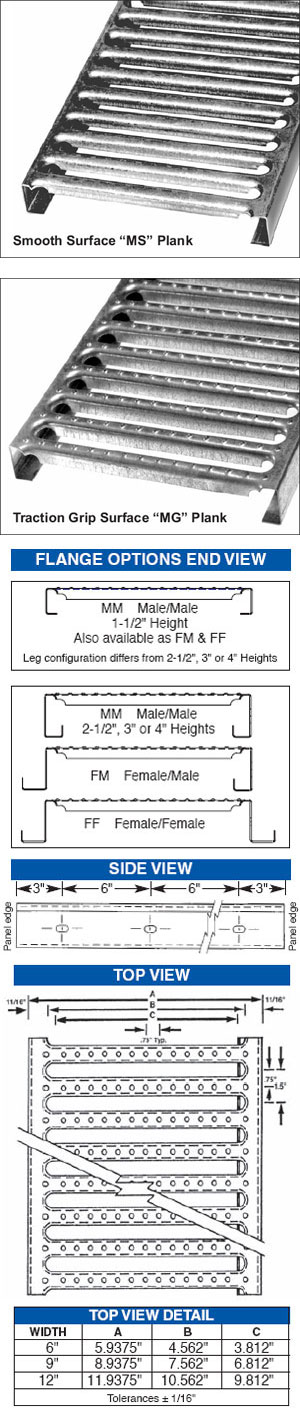

  7. Flange option:
    FM (female/male), MM (male/male), or FF (female/female)
  8. Surface:
    MG (traction grip) or MS (smooth-available by special order)
  9. Special requirements or accessories, if any (accessories are shown on page 73.)
  10. Give catalog number as follows:

    EXAMPLE:
    MG-122516-FM
    MG = Traction Grip surface
    12 = width
    25 = plank height
    16 = gauge
    FM = interlock detail-female/male

    Prefix:
    "MG" = Traction Grip Surface
    "MS" = Smooth Surface
    Suffix:
    "FM" = Female/Male
    "MM" = Male/Male
    "FF" = Female/Female
