DJTE - Overhead Door Gas Heaters

DoorJet Heaters

APPLICATIONS

STOPS OPEN DOOR CHILLS

• Car Washes
• Warehouses
• Manufacturers
• Auto Body Shops
• Distribution Centers
• Maintenance Facilities
• Marine Repair Facilities

Mighty DOORJETs blast hot air to maintain employee comfort.Productivity improves. Energy dollars are saved.

DOORJET heaters stop the chills and wasted energy that occur when outside bay doors are opened in car washes, industrial plants and distribution centers. The DOORJETs heat surge tempers the in-rushing cold air, keeping employees working in the area comfortable and saving energy dollars.

Fully automatic operation – You don’t have to turn the DOORJET on!

Solaronics DOORJETs operate via a trip switch that starts the fan and burner automatically as the door is raised. A “jet” of heated air is directed toward the door instantly. When the door closes, the fan and burner turn off immediately.

In car wash applications, DOORJET heaters can also be placed at vehicle drying stations to increase the efficiency of the drying cycle.

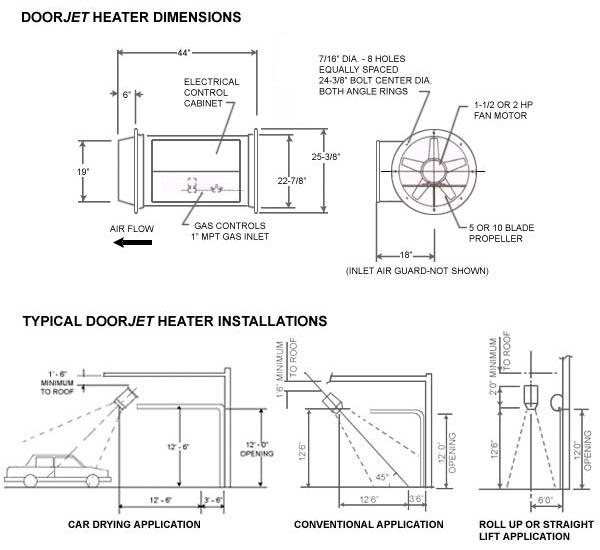

Easy installation for all door types.

Solaronics DOORJETs are installed with the angle of air discharge from vertical to horizontal. Vertical mounting directs the heat straight down for roll up or straight lift doors. For conventional doors, horizontal or angled placement may be utilized. Connections to electrical source, gas supply and door limit switch complete the installation.

Key Features and Benefits:

• Watertight enclosure: All gas and electrical controls prewired and sealed
• Fully assembled and factory tested to ensure safe and dependable long life operation
• 16 Gauge 304 Stainless Steel casing with two reinforced angle rings
• Stainless steel burner baffle
• Heavy duty axial flow fan
• Vertical or angle mounting
• Economical Natural Gas operation: Also LP/Propane and other gaseous fuels options
• 500,000 to 950,000 BTUH input ratings to fit most buildings
• Instant heat: No warm-up period required
• Special “Jet” type burner
• Corrosion resistant manifold
• Hanging holes

Gas Fired Stainless Steel Heaters With Controls Totally Enclosed

DOORJET Controls

• Remote control with On-Off switch and control circuit fuse
• 1 ½ or 2 HP TEFC ball bearing 3-phase motor
• Magnetic motor starter
• Air flow switch
• Control transformer
• High temperature limit switch
• Remote summer-winter switch
• Electronic ultraviolet sensor
• Gas pressure regulator up to ½ PSI
• Modeling gas valve/temperature control
• “Hot” spark ignition
• Options: Door limit switch and roller arm; Inlet air guard; High pressure gas regulator over ½ PSI; Single phase motor.
