Rmax TXS-8500 Rigid Thermal Wall Insulation Board for Exposed Applications

For Metal, Agricultural and Light Commercial Applications
Rmax's TXS-8500 Thermal Insulation Board is designed for use without a thermal barrier in metal buildings and other light commercial structures, as well as, for basement and interior walls, agricultural, post frame and cold storage applications where local building codes will allow. It has been tested per UL1715. A variety of thicknesses and lengths are available for ease of application. TSX 8500 applications and specifications are further described in ICC-ES report ESR-1864. TXS-8500 Thermal Insulation

Call 1-800-527-0890 or email ramx@ramxinc.com for samples.

Product Description
TXS-8500 Thermal Insulation Board is a rigid thermal insulation board composed of environmentally sound, closed cell, polyisocyanuate foam core bonded to a glass fiber reinforced 1.5 mil aluminum foil facer on the exposed side f the board. It is designed and tested for use without a thermal barrier (UL1715) in pre-engineered metal buildings, laminate panel products and other similar applications. TSX-8500 Thermal Insulation Board utilizes a new, HCFC free, blowing agent.

Applications

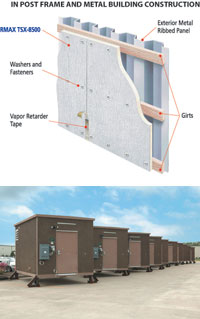

TXS-8500 Thermal Insulation Board is an excellent product for use in insulating basement walls in residential construction,, provides insulation for pre-engineered metal buildings, and may be used as an exposed finished insulation system in agricultural, farm and other light commercial structures. It is also suitable for use under metal roof panel systems fastened through the insulation to a roof deck and structure below the insulation. Refer to specs sheet for specifications on securing TXS-8500 Thermal Insulation Board.

Compliances
Product Specification – ASTM C1289 Type I Class I
Tested to comply with UL1715
TSX-8500 Thermal Insulation Board meets the requirements as a nonstructural insulative sheathing board of the International Building Code (ICC) Chapter 26 Section 2603 Foam Plastic.
ICC Evaluation Report -- ESR-1864

Standard Sizes and Packaging
Width: 48"
Length: 96" – 240"
