TGA 225 RIBBON WINDOW WALL
THERMAL-BAR® RIBBON WINDOW SYSTEM
PRE-GLAZED IN FACTORY
TGA-225 is a shop glazed system, with the individual panels assembled in the controlled environment of our fabrication facility. The heart of the system is the structural silicone seal at the interior face of the glass. This seal provides superior protection against air and water infiltration. All anchors are located behind the glazing pocket, eliminating the possibility of leaks through the anchor holes. Weep holes in the continuous sill channel direct any water penetrating the exterior gasket out to the exterior. These design elements create a glazed wall which offers unprecedented resistance to air and water infiltration, and the efficiency of a thermally broken system. Structural performance exceeds normal standards.
KEY SYSTEM BENEFITS

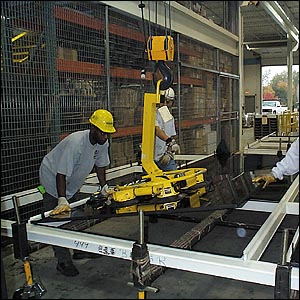

PRE-GLAZED SYSTEM
Trainor Glass pre-glazes all of its TGA 225 window walls for better quality control. By pre-glazing, Trainor Glass also guarantees "NO LEAKS" for our system.

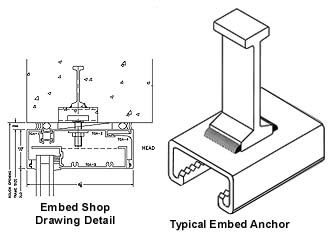

EMBEDS
Trainor Glass works from "Day 1" with the pre-cast engineers to make sure that when the time comes for the window wall to be installed, no time delays are incurred. They accomplish this by supplying the embed drawings, and coordinating the layout of the embeds with the engineers.
THERMAL-BAR
The most innovative insulation system available today
UNLIMITED DESIGN FLEXIBILITY
- Variable widths in the same aluminum extrusion
- Two finish capabilities
- Anodize or painted surfaces
- One coat interior finish and high performance exterior
SUPERIOR STRUCTURAL STRENGTH
- One integral profile for window or wall sections
- High tensile strength with tension pull resistance
- Excellent shock resistance
CONTINUOUS THERMAL AND SOUND INSULATION
- By design, noise transmission is reduced dramatically over solid mass barriers.
- Up to 50% better thermal insulation is achieved depending on the bar size.
SYSTEM TESTING
RANGE OF TESTING COMPLETED:
- AIR INFILTRATION TEST PER ASTM E283
Test Conditions:
Test pressure at 1.57 psf
Test pressure at 6.24 psf
Test Conclusions:
PASS
- WATER INFILTRATION PER ASTM E331
Test Conditions:
Test pressure (0.15Pd) = 10.00psf
Test duration = 15.00 min.
Spray rate = 5.0 gal / (ft²·h)
Test Conclusions:
PASS
- STATIC LOAD TEST PER ASTM E330
Manufacturer Specified Design Pressures:
Test Conditions:
Inward acting design pressure = 35.00 psf
Outward acting design pressure = 25.00 psf
Conversion to Equivalent Test Load:
Maximum inward acting test load = 52.50 psf
Maximum outward acting test load = 37.50 psf
Test Conclusions:
PASS
THERMAL AND CONDENSATION MODELING AVAILABLE
Trainor Glass can also provide thermal and condensation modeling for a specific job application to help the architect coordinate the glazing system with the building HVAC package to improve energy efficiency.
| EXAMPLE OF THERMAL
MODELING Using clear Insulated Glass, Argon filled with Low-E Coating. |
|
| U-Value (Center of Glass) | 0.24 |
| U-Value (Complete Window) | 0.40 |
| Shading Coefficient (SC-Center-of-the-Glass) | 0.43 |
| Solar Hear Gain Coefficient (SHGC - Complete Window) | 0.35 |
| Visible Light Transmittance (VT-Center-of-Glass) | .70 |
| Inside Glass Surface Temperature | 57.2 |
| Luminous Efficacy (ke) | 1.6 |
| Relative Heat Gain (RHG-Center-of-the-Glass) | 8.9 |
TRAINOR GLASS COMPANY
P.O. Box 11325
1101 13th Street West
Riviera Beach, Florida 33404
(561) 863-7078
FAX (561) 863-7088
11901 S. Austin Avenue,
Alsip, Illinois 60803
(708) 388-5700
FAX (708) 388-9359
148 Enterprise Blvd.
Atlanta, Georgia 30336
(404) 699-7020
FAX (404) 699-2080
New Jersey Glass (A Division of Trainor Glass Co.)
134 N. 11th St., P.O. Box 7010
Newark, NJ 07107
(973) 484-5277
FAX (973) 484-5644
Look for our TGC 2250 Impact Resistant Ribbon Window in Section 08505.
Look for our TCW 250 Impact Resistant Curtain Wall in Section 08900.
