 LATICRETE INTERNATIONAL, INC.
1 LATICRETE Park North
Bethany, CT 06524-3423 USA
Telephone: +1.203.393.0010, ext. 235
Toll Free: 1.800.243.4788, ext. 235
Fax: +1.203.393.1948
E-mail: technicalservices@laticrete.com
Web site: http://www.laticrete.com
United States Invention Patent No.: 6881768 (and other Patents)

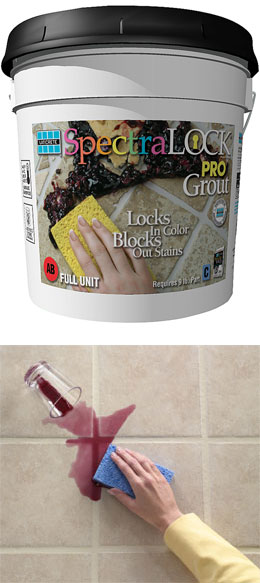

LATICRETE SpectraLOCK PRO Grout offers the high performance, color uniformity, durability and stain resistance of epoxy grout with extraordinary ease of use. - Ceramic tile, glass tile and stone applications, residential and commercial.
- Interior and exterior.
- Floors and walls.
- Ideal for re-grouting applications.
- Swimming pools, fountains and other wet area applications.
- Meets performance requirements of ANSI A118.3-1999.
- 80 minutes working time at 70°F (21°C).
- Inhibits the growth of stain-causing mold and mildew in the
grout joints with Microban® antimicrobial product protection.
- Ideal for installations at wide temperature ranges.
- Uniform color—no blotchiness or shading.
- Easy to maintain, cleanable to the original color.
- Stain resistant.
- Tough, durable, and crack resistant.
- Outperforms cement based grout.
- Non-sag formula for walls and floors.
- High fashion with Dazzle component.
Unit Size | Yield | Parts A & B | Part C Color Powder | Mini | 0.2 US gal (0.7 l) | A: 0.32 lb (0.14 kg)
B: 0.32 lb (0.14 kg) | C: 2.25 lb (1.0 kg) | Full | 0.8 US gal (3.0 l) | A: 1.28 lb (0.6 kg)
B: 1.28 lb (0.6 kg) | C: 9.0 lb (4.0 kg) | Commercial | 3.2 US gal (12.0 l) | A: 4 x 1.28 lb(0.6 kg)
B: 4 x 1.28 lb (0.6 kg) | C: 4 x 9.0 lb (4.0 kg) |
Coverage
Refer to Coverage Chart located on Data Sheet 254.3 HC.
Actual coverage will vary depending on job site conditions, actual tile size and installed grout joint size. Add 10% for waste, spillage and clean-up, and another 10%-15% when grouting unglazed quarry tile. Expanded coverage tables at www.laticrete.com/coverage. Shelf Life
Factory sealed containers of this product are guaranteed to be of first quality for two (2) years* if stored at temperatures greater than 32°F (0°C) and less than 95°F (35°C).
* High humidity will reduce the shelf life of bagged product. Limitations- Not for use in areas subjected to harsh chemicals, or areas exposed to aggressive cleaning regimens (e.g. steam
cleaning). Not for use on floor and base areas in veterinary clinics,
kennels, or in applications exposed to high concentrations of food and mineral acids or areas exposed to high temperatures.
For these areas LATICRETE recommends using grout that meets ANSI A118.5 such as LATAPOXY® 2000 Industrial Grout.
- Epoxy grout for ceramic tile and stone is not a replacement for a waterproofing membrane. When a waterproofing membrane
is required, use a LATICRETE Waterproofing Membrane
(see Section 10 FILING SYSTEMS).
- Not for use in areas subjected to enzymatic cleaners and
no-rinse cleaners
- LATICRETE SpectraLOCK PRO Grout should not be used on floors and base in the food preparation or cleaning area of
commercial and industrial kitchen applications.
Cautions- DO NOT add water or any other material to the mixture, or
re-temper with water. This will have an adverse effect on the product and void all warranties.
- Protect finished work from traffic until fully cured.
- LATICRETE® SpectraLOCK®† PRO Grout liquid components might irritate eyes and skin. Avoid contact with eyes and/or
prolonged contact with skin.
- Wear protective gear (gloves, long sleeve shirt, and safety glasses) when applying. Flush thoroughly with water in case of initial contact.
- DO NOT ingest internally. Silica sand may cause cancer or
serious lung problems. Avoid breathing dust. Wear a respirator or dust mask. See MSDS for more information.
- Keep out of reach of children.
- Protect from freezing.
- Light colors may darken and dark colors may fade slightly from direct UV exposure in exterior applications. Consult with LATICRETE Technical Services for specific exterior recommendations.
- LATICRETE SpectraLOCK Dazzle (Glow) not for use in submerged
installations.
- Maximum stain resistance is achieved in seven days at
70°F (21°C). Protect from exposure to acids (such as mustard, salad dressing, etc.) and strong cleaners during this period. Protect grout from dirt, construction debris, and contamination for 7 days @ 70°F (21°C).
- LATICRETE SpectraLOCK PRO Grout is a sanded grout. Use of sanded grouts in joints <1/8" (3 mm) will result in a coarser surface compared to surfaces in wider joints.
- LATICRETE SpectraLOCK Dazzle (Glow) might discolor from strong alkali cleaners and acids. Use a neutral pH solution of soap and water when cleaning LATICRETE SpectraLOCK PRO Grout mixed with LATICRETE SpectraLOCK Dazzle (Glow).
- Some soft polished marble or delicate glazed or glass tile might be scratched by LATICRETE SpectraLOCK PRO Grout
during installation. Apply a small test area to determine results before grouting entire installation.
- In steam rooms, allow LATICRETE SpectraLOCK PRO Grout to cure for seven days before use of room.
- LATICRETE SpectraLOCK PRO Grout is resistant to staining when exposed to most household products and cleaners
(e.g. ketchup). However, long term exposure to any
material without proper cleaning and maintenance will increase the probability of stains.
- Epoxy Resins may affect the color of white or porous stones (such as White Carrara, Thasos White, Royal Danby etc.)
† United States Invention Patent No.: 6881768 (and other Patents)
This product has been GREENGUARD Indoor Air Quality Certified® by the GREENGUARD Environmental Institute under the GREENGUARD Standard for Low Emitting Products in finished form. Total VOC Content pounds/gallon (grams/liter) of product in unused form is 0.00026 lb/gal (0.031 g/l). ANSI A118.3 tested with 1244 Bright White Test/Test Method | Description | Results | | ANSI A118.3 E5.1 | Water Cleanability | Water Cleanable at 80 minutes | | ANSI A118.3 E5.2 | Initial Set Service Strength | > 2 hours < 24 hours | | ANSI A118.3 E5.3 | Shrinkage | < 0.25% | | ANSI A118.3 E5.4 | Vertical Joint Sag | Pass | | ANSI A118.3 E5.5 | Quarry/Quarry Bond Strength | 1,000 psi (tile failure) 6.9 MPa | | ANSI A118.3 E5.6 | Compressive Strength | 3,500 psi (7 days) 24 MPa | | ANSI A118.3 E5.7 | Tensile Strength | 1,100 psi (7 days) 7.6 MPa | | ANSI A118.3 E5.8 | Thermal Shock | 510 psi 3.5 MPa | | ANSI A118.3 | Water Absorption | < 0.50% |
Chemical Name | Splash Exposure
(30 min) | Intermittent Exposure
(24 hours) | Continuous Exposure
(7 days) | | 20 % Sulfuric Acid | R | R* | NR* | | 5 % Lactic Acid (Milk) | R | R | R | | 50 % Tannic Acid | R | R | R | | 50 % Tartaric Acid | R | R | R | | 10 % Oxalic Acid | R | R | R | 5 % Acetic Acid
(Vinegar) | R | R | R | | 5 % Benzoic Acid | R | R | R | | 3 % Formic Acid | R | R | NR | | 5 % Citric Acid (Gatorade Drink) | R | R | R | | 10 % Potassium Permanganate | R* | R* | R* | | 1 % Potassium Permanganate | R* | R* | R* | | 5 % Sodium Hypochlorite (Bleach) | R | R | NR | | 45 % KOH (Cascade) | R | R | R | | Distilled Water | R | R | R |
Chemical Name | Chemical Name | Intermittent Exposure
(24 hours) | Continuous Exposure
(7 days) | | Mineral Water | R | R | R | | Sea Water | R | R | R | | Methanol | R | NR | NR | 10 % Ethanol
(wine, beer) | R | R | R | | 96 % Ethanol (Spirit) | R | R | NR | | Isopropanol (Windex) | R | R | R | | Mek | R | NR | NR | | Chloroform | NR | NR | NR | | Methylene Chloride | NR | NR | NR | | Toluene | R | R | NR | | Xylene | R | R | R |
* Material will stain due to exposure to these items.
R=Recommended NR=Not Recommended. Chemical Resistance determined in accordance with ASTM C267-1982.
NOTES TO SPECIFIER: Use the constant exposure recommendations for intermittent exposure to reagents at temperatures above 90°F (32°C).
Density—15 lbs/gal (1.8 g/ml) Test Standard | Temperature | | | | 40°F (4°C) | 70° (21°C) | 95°F (35°C) | | ANSI A118.3 E-5.1 | Working Time | 120 min. | 80 min. | 30 min. | | LIL-AS-01-110904 | Tack Free Time | 12 hrs. | 4 hrs. | 2 hrs. | | LIL-AS-01-110904 | Ready for Light Foot Traffic | 24 hrs. | 12 hrs. | 6 hrs. | | LIL-AS-01-110904 | Ready for Heavy Foot Traffic | 48 hrs. | 24 hrs. | 12 hrs. | | LIL-AS-02-110904 | Dirt, Stain Resistance, Food Spills, Household Cleaners | 14 days | 7 days | 3 days | | LIL-AS-03-110904 | Full Cure | 28 days | 14 days | 7 days |
Specifications subject to change without notification. Results shown are typical but reflect test
procedures used. Actual field performance will depend on installation methods and site conditions.
See Data Sheet 685.5, How To Install LATICRETE® SpectraLOCK®† PRO Grout, for detailed installation instructions. This document is
available online at www.laticrete.com and is included in all
Part AB units.
† United States Invention Patent No.: 6881768 (and other Patents)
 Availability
LATICRETE and LATAPOXY® materials are available worldwide.
For Distributor information, call:
Toll Free: 800.243.4788
Telephone: 203.393.0010
For on-line Distributor information, visit LATICRETE at www.laticrete.com.
Cost
Contact a LATICRETE Distributor in your area. See 10. FILING SYSTEM
| DS 230.13: | LATICRETE Product Warranty |
A component of:
| DS 230.12: | LATICRETE 10 Year Systems Warranty | | DS 700.12: | LATICRETE Lifetime Residential Warranty |
LATICRETE and LATAPOXY grouts require routine cleaning with a neutral pH soap and water. All other LATICRETE and LATAPOXY materials require no maintenance but installation performance and durability may depend on properly maintaining products
supplied by other manufacturers. For additional information, please refer to the LATICRETE Grout Selection and Maintenance Guide, TDS #400. Technical assistance
Information is available by calling the LATICRETE Technical Service Hotline (hours 8:00 AM to 5:30 PM EST):
Toll Free: 800.243.4788, ext. 235
Telephone: 203.393.0010, ext. 235
Fax: 203.393.1948
Technical and safety literature
To acquire technical and safety literature, please visit our website at www.laticrete.com.
Additional product information is available on our website at www.laticrete.com. The following is a list of related documents:
| DS 230.13: | LATICRETE Product Warranty | | DS 230.12: | LATICRETE 10 Year Systems Warranty | | DS 700.12: | LATICRETE Lifetime Residential Warranty | | DS 634.0: | LATAPOXY 2000 Industrial Grout | | DS 236.0: | LATICRETE 9235 Waterproofing Membrane | | DS 685.5: | How To Install LATICRETE SpectraLOCK PRO Grout | | TDS 400: | LATICRETE Grout Selection and Maintenance Guide |
|
