Commercial/Residential Steam Generators

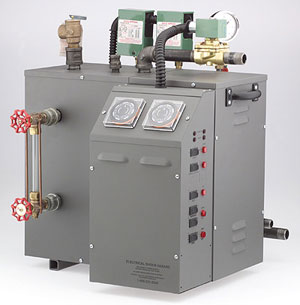

Commercial Steam Generator

Ideal for large steamrooms, the McCoy Commercial Steam Generator is designed for optimum user enjoyment and hands-off, automated operation. The unit is designed for easy on-site maintenance.

• ASME certified low-pressure vessel
• UL listed
• All steel construction with powder coat finish and stainless steel feet to prevent corrosion
• Multiple safety features, including:
• Sight glass
• Three-level water sensing system with low water cutoff
• High pressure cutout on all boilers
• Optional 24-hour/7-day integral clock
• One or two-room operation
• Each room controlled individually with optional low voltage on/off control
• Room "over-temperature shut down"
• Designed for easy serviceability
• Simple service access and control
• Indicator lights with integral diagnostics
• Backed by McCoy's industry leading warranty and technical support
• Optional "Refresh^™" option provides short bursts of steam when desired
• Optional Low Water cut-off with manual reset
• Optional 24 hour 7 day Digital Time Clock with Battery Back Up allows custom time settings and accurate run times, even after power outages. Available as time clock or drain clock
• Optional "Cool Flush: Auto Drain System, on separate clock cools water in tank to 140° F, or less, to prevent damage to plumbing drain system

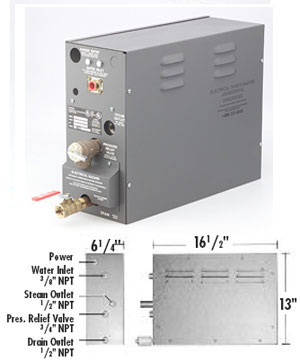

McCoy's AK generators set themselves apart from other residential generators with several unique features.

"Soft Steam" function maintains the ultimate comfort zone. Minimal temperature variations and an even flow of steam are the two most important traits of the perfect steambath. McCoy's engineering provides both traits with its unique "soft steam" function. The AK generator features innovative "soft steam" element switching to maintain a consistent and comfortable steambath environment. The AK uses full power to quickly heat up the steamroom to its preset temperature; then cuts power to half its elements, resulting in a more consistent flow of soft billowing steam and more stable temperature. "Soft Steam" functions only with K30, KT60, and K60 controls (not with R30K).

The single factor most greatly affecting steam bathing comfort is minimal temperature fluctuations. Comparative testing proves the superior performance with the "soft steam" element switching, a feature exclusive to the AK generator.

The innovative K200i Freedom Control from Amerec provides the ultimate steam bathing experience. The wireless remote control allows the bather to operate control functions from virtually anywhere within 50' of the steam shower.

Installation is simplified as there is no need to run control cables inside shower walls or drill large holes through expensive marble, granite or tile wall material.

Available options for the K200i Freedom Control:

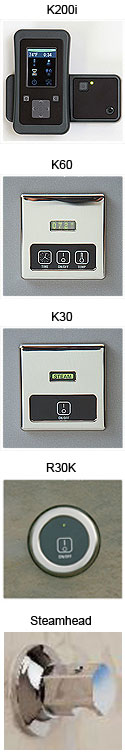

The AK generators now feature five control options: The K60 and KT60 have a three button panel with on/off, temperature setting and time setting which can be adjusted up to 60 minutes. The digital display alternately shows room temperature and time remaining. The display window of the K30 lights up when the generator is on. Both the K60 and the K30 have remotely located thermostats.

These steamheads are specially designed with a reservoir for a perfect mixture of scent and steam. Steamhead has an insulated inner core for additional steambath safety (maximum surface temperature is 125 degrees F). Available in polished chrome, polished brass, polished gold, polished or brushed nickel, oil rubbed bronze, and white finishes.
