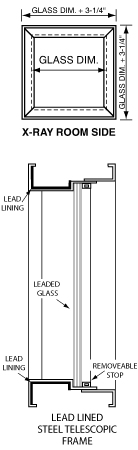

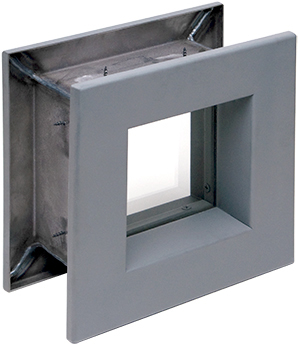

Steel or Aluminum Splayed, Telescopic Lead Lined
Frames with removable stops. Maximum size 48" x 96" without mullion.
Minimum size 8" x 10".
Frames match Hollow Metal Door Frames. Can be manufactured to accept
any thickness of glass or acrylic. Metal Frames can be steel braced for
maximum strength.
NOTE: Don't cut frame opening until frame is at Job site!!

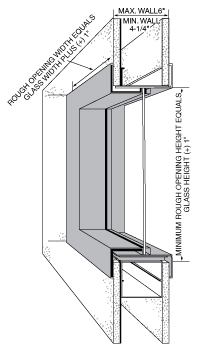

The lead lined Steel/Aluminum frames adjust to wall thickness of
4-1/4" – 6". Voice transmission is standard.
LEAD/SPLAYED CONTROL FRAMES
Manufactured of solid lead 3/16'' thick. Will accept up to 2 inches
of Lead Glass and can have voice passage slot. May be used with overlap
face on walls up to 5-3/8" thick overall with frame 5-3/4". All frames
come with 1/2" removable stops.
Special construction of lead frames available to meet your specifications
(i.e., special steel reinforcement, wider wall thickness, special sizing,
etc.).
Ordering Information
1. Glass Size–width and height
2. Lead Thickness
3. Baffled Voice Passage
4. Wall Thickness
This information is the same for all frames ordered.
Radiation Protection Product's Lead Glass is a light Amber color,
suitable for installation in screens, walls and doors. This allows
for protective viewing of the radiographic procedures.
Standard
| 8" x 10" |
32" x 40" |
60" x 48" |
| 10" x 12" |
36" x 24" |
72" x 36" |
| 12" x 12" |
36" x 30" |
72" x 40" |
| 12" x 16" |
36" x 36" |
72" x 42" |
| 16" x 24" |
48" x 36" |
72" x 48" |
| 18" x 24" |
48" x 40" |
84" x 40" |
| 24" x 24" |
48" x 48" |
84" x 42" |
| 24" x 48" |
60" x 36" |
96" x 42" |
| 30" x 24" |
60" x 40" |
96" x 48" max. |
| 30" x 30" |
60" x 42" |
|
Custom size quoted upon request. Radiation Protection Products will
cut your glass to your exact Specs. However, keep in mind it is always
best to have 1 Supplier for Both your glass & your frame, to assure
a perfect fit.
*ONLY @ Radiation Protection Products, Inc.
RITE LITE PACKAGES
Leaded X-Ray Glass & Telescopic Steel Frame Offered for a Perfect
Fit & Immediate Delivery. Offered in 12 Packages from 12" x 12"
to 36" x 48".
Clear-Pb™ Lead-Acrylic Panels
Available in Lead Equivalence: 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm,
and 2.0mm.
Standard Sizes
| 10" x 12" |
24" x 24" |
48" x 48" |
| 12" x 12" |
30" x 24" |
60" x 36" |
| 12" x 16" |
30" x 36" |
60" x 48" |
| 12" x 18" |
32" x 40" |
72" x 36" |
| 12" x 24" |
36" x 24" |
72" x 48" |
| 12" x 36" |
36" x 36" |
72" x 96" |
| 18" x 18" |
48" x 18" |
84" x 36" |
| 18" x 24" |
48" x 24" |
84" x 48" |
| 18" x 36" |
48" x 36" |
96" x 48" |
| Custom sizes quoted upon Request. |
Radiation Protection Products, Inc.
P. O. Box 862
Wayzata, MN 55391
Toll-Free: (800) 328-3361 / (888) RING RPP
Fax: (952) 476-8445
E-mail: bcohen@rppinc.com
Web site: http://www.radiationproducts.com
|
