Tapered Roof Insulation

Johns Manville offers Tapered E’NRG’Y 2, Tapered ISO 1, Tapered Fesco Foam, E’NRG’Y 2 Plus and Tapered Fesco Panels to provide the roofing system designer, specifier or contractor with a means of creating positive slope to any building structure.

The Tapered Systems Group has a comprehensive service to provide custom designs and takeoffs tailored to the needs of each individual project utilizing JM tapered insulation panels. For more information call 800-343-1283 or 800-341-8032 if you are calling from the Western or Southwestern States.

DiamondBack Tapered Polyiso Pre-Cut Crickets and Miters

Tapered Pre-Cut Miters Tapered Pre-Cut Crickets
The DiamondBack Pre-Cut products are compatible with other types of insulation and virtually all roof covering membranes. They are cut with computerized accuracy, packaged and delivered to the job ready to install. Pre-cut DiamondBack products offer the contractor labor saving and reduced waste disposal. They are available in either 20 or 25 psi and meet the material requirements of ASTM C 1289, Federal Specification HH-I-1972/Gen and HH-I-1972/2. All DiamondBack products are available in E’NRG’Y 2 and ISO 1. ProDiamond and Diamond 45 can also be made with Fesco Foam or E’NRG’Y 2 Plus.

ProDiamond^™ Custom Crickets are professionally designed to divert water to a drain, scupper or low point on a tapered roof system and to meet job specifications and requirements. Standard slopes of 1/16", 1/8", 3/16", 1/4" and 1/2" per foot are available and used in conjunction with JM full 4' x 4' tapered insulation panels.

Diamond 45^™
Pre-Cut Miters are comprised of two separate tapered panels cut at a 45 degree angle to form a hip (outward slope) or valley (inward slope) that directs water to a low point on a tapered roof system.


Tapered Fesco uses only JM Fesco Board, a perlite-based thermal roof insulation designed for use over nailable, non-nailable or metal roof decks. It is especially adaptable to reroofing applications, where both improved thermal insulation and positive drainage must be achieved.

Tapered Fesco is supplied in 2' x 4' (0.61 m x 1.22 m) or 4' x 4' (1.22 m x 1.22 m) boards, custom cut and tapered to 1/16", 1/8", 1/4", or 1/2" per foot (5.2, 10.4, 20.8, or 41.6 mm/m) slope depending on the need. Custom sizes are available.

Advantages

Environmentally Friendly. The minimum recycled content is 25% by weight.

Tapered Fesco Board complies with Environmental Protection Agency Regulation 40 CFR Part 248, Guideline for Federal Procurement of Building Insulation Products Containing Recovered Materials, as a recycled product approved for use on any project using federal funds.

Dimensional Stability. Because of its perlite composition and low water absorption rates, Fesco Board is dimensionally stable over a wide range of weather conditions.

Fire Resistance. Tapered Fesco Board has excellent fire resistance and is approved for use in FM and UL approved constructions. Because of its perlite content, Tapered Fesco offers far greater resistance than conventional wood fiber materials.

Stable R-Value. Tapered Fesco Board has a stable R-value because it is composed of inorganic and fibrous materials.

Labor Savings. Tapered Fesco in 4' x 4' (1.22 m x 1.22 m) panels can offer significant labor savings over 2' x 4' (0.61 m x 1.22 m) panels during application and installation.


Tapered E’NRG’Y 2 is a high thermal roof insulation board consisting of a core of rigid, closed-cell, polyisocyanurate foam, faced with a universal fiber glass reinforced facer. Tapered E’NRG’Y 2 is designed for both new construction and reroofing where ponding water or positive slope is a concern.

Tapered E’NRG’Y 2 is supplied in 4' x 4' (1.22 m x 1.22 m) boards and available in minimum 1/2" (13 mm) minimum to 4.0" (102 mm) thicknesses. Tapered E’NRG’Y 2 is manufactured to 1/16", 1/8", 1/4", or 1/2" per foot (5.2, 10.4, 20.8 or 41.6 mm/m) slope depending on the need. Custom sizes are available.

Advantages

Thermally Efficient. Tapered E’NRG’Y 2 is a highly efficient thermal insulation with high R-value and low installed cost.

Universal Facer. The universal facer on Tapered E’NRG’Y 2 is suited for use in many different membrane systems such as BUR, modified bitumen and single ply applications.

Environmentally Compliant. Tapered E’NRG’Y 2 is produced with 141b blowing agent, an HCFC (Hydrochlorofluorocarbon) chemical currently accepted as a replacement in the CFC phase-out process. Tapered E’NRG’Y 2 is in compliance with EPA requirements governing all materials produced after May 15, 1993. Tapered E’NRG’Y 2 meets the standards of the Clean Air Act Amendments of 1990.

Tapered Fesco Foam is a rigid roof insulation panel composed of a high thermal isocyanurate foam core bonded to a perlite board on one side and a universal fiber glass reinforced facer on the other. Tapered Fesco Foam is designed for both new construction and reroofing where ponding water or positive slope is a concern. When installed with the perlite up, the perlite facer provides an excellent base for conventional BUR and modified bitumen systems.

Tapered Fesco Foam is available in 4' x 4' (1.22 m x 1.22 m) or 4' x 8' (1.22 m x 2.44 m) boards, and in thicknesses of a minimum 1.5" (38 mm) to 4.0" (102 mm). Tapered Fesco Foam is manufactured to 1/16", 1/8", 1/4" and 1/2" per foot (5.2, 10.4, 20.8 or 41.6 mm/m) depending on the need. Tapered Fesco Foam is available with a 1/2" (13 mm) perlite facer. Tapered Fesco Foam is available with a 3/4" (19 mm) perlite facer on special request.

As a composite, Tapered Fesco Foam meets the minimum requirements of the Resource Conservation and Recovery Act.

Tapered Pre-Cut Miters are comprised of two separate tapered panels factory cut at a 45° angle to form a hip (outward slope) or valley (inward slope) that direct water to a low point on a tapered roof system. These panels can be manufactured from either Tapered E’NRG’Y 2 or Tapered Fesco Foam composite panels, and are available in either 20 or 25 psi (138 or 172 kPa) compressive strength.

Using specialized computerized technology, Tapered Pre-Cut Miters are designed, cut, packaged and delivered to the job ready for installation, which saves labor and eliminates waste.

Tapered E’NRG’Y 2 Pre-Cut Miters are available in standard slopes of 1/8", 3/16", 1/4" and 1/2" per foot (10.4, 15.6, 20.8 and 41.6 mm/m). Custom cut multi-slope Tapered E’NRG’Y 2 Pre-Cut Miters are available upon special request. Tapered Fesco Foam Pre-Cut Miters are available in standard slopes of 1/8", 1/4" and 1/2" per foot (10.4, 20.8 and 41.6 mm/m).

Tapered Pre-Cut Crickets

Tapered Pre-Cut Crickets are designed to direct water to a drain or scupper on a tapered roof system. These crickets consist of sloped insulation panels that are professionally designed, factory cut and packaged to your job specifications. These panels can be manufactured from either Tapered E’NRG’Y 2 or Tapered Fesco Foam composite panels, and are available in either 20 or 25 psi (138 or 172 kPa) compressive strength.

Using specialized computerized technology, Tapered Pre-Cut Crickets are designed, cut, packaged and delivered to the job ready for installation. The customized bundle labeling allows for easy onsite identification. This service minimizes field error, increases efficiencies and eliminates waste.

FesCant Plus Cant Strip

FesCant Plus Cant Strips are an excellent way to transition from the deck to the wall of the roof. They are made from JM Cant Board, a high density, laminated board made of high strength fibers and expanded perlite. Because of its high perlite content, FesCant Plus Cant Strips offer far greater fire resistance than conventional wood fiber materials. This feature is important to all roofs, but especially applicable to torch-applied or heat weldable modified bitumen systems and flashing details.

FesCant Plus Cant Strips have at least 35% post-consumer recycled content and comply with the Environmental Protection Agency Regulation 40 CFR Part 248, "Guideline for Federal Procurement of Building Insulation Products Containing Recovered Materials", as a recycled product approved for use on any project using federal funds. FesCant Plus Cant Strips are available in 3", 4", 5" and 5 3/4" (76, 102, 127 and 146 mm) sizes.

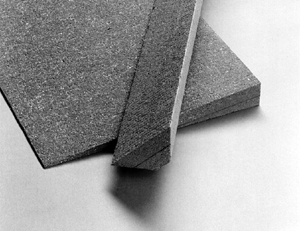

Tapered Fesco Edge Strip

Tapered Fesco Edge Strips are available in standard sizes to meet special needs. They are good for transitioning from membrane to nailer or transi-tioning from a Tapered Fesco, Tapered E’NRG’Y 2 or Tapered Fesco Foam panel to the roof level. Because of its perlite content, Tapered Fesco Edge Strips offer far greater fire resistance than conventional wood fiber materials.

Tapered Fesco Edge Strips have at least 25% post-consumer recycled content and comply with the Environmental Protection Agency Regulation 40 CFR Part 248, "Guideline for Federal Procurement of Building Insulation Products Containing Recovered Materials", as a recycled product approved for use on any project using federal funds.

Tapered Fesco Edge Strips are available in 6", 12", 18", and 24" (152, 305, 457 and 610 mm) sizes.

Johns Manville Tapered Systems Group

The importance of providing a roof with positive slope to drain is well documented. JM’s Tapered Fesco Board, Tapered E’NRG’Y 2 and Tapered Fesco Foam provide the roofing system designer, specifier or contractor with a means of creating positive slope in any building structure.

JM has a comprehensive program to provide customer designs and takeoffs tailored to the needs of each individual project. For detailed information, call the JM Tapered Systems Group.

Typical Drainage Layouts

1. Individualized Design Service.
The JM Tapered Systems Group will work closely with the architect, designer or contractor to prepare a design or plan to achieve positive slope, including crickets, for both new and reroofing applications, with special attention given to complicated older roof problems. This plan, developed from a "walk-through" or from your roof drawings, can then be incorporated into your bid documents.

2. Total System Specification Service.
A JM Tapered Systems Group Specialist can also incorporate the drainage system plan into an overall specification for the complete roofing system package­whether it be a JM built-up, modified bitumen or single ply roofing system.

3. Fully Guaranteed Systems.
The JM Tapered Systems Group uses only genuine JM job-proven Tapered Fesco Board, Tapered E’NRG’Y 2 or Tapered Fesco Foam. The tapered insulation drainage system can qualify for inclusion in the JM roof guarantee program which covers the performance of the entire JM roofing system package with up to 20 year, No-Dollar-Limit protection on both materials and workmanship.

4. Top Quality, Job-Tapered Product.
The JM Tapered Systems Group will supply genuine JM Fesco, E’NRG’Y 2, or Fesco Foam tapered in a variety of standard designs, slopes and shapes to provide positive drainage plus custom-cut and custom-tapered sizes to fit the needs of cricket systems and special applications. The JM Tapered Systems Group will also supply Pre-Cut Miters and Pre-Cut Crickets customized for your individual needs.

5. A Partnership Working for You.
By using the services of the JM Tapered Systems Group, you will gain from personalized, individualized service. Their expertise is backed by the full resources of a company that has been solving roofing problems for well over 140 years.

Contact the JM Tapered Systems Group the next time you need a design or plan to achieve positive drainage in your roofing system. JM has two offices to service your needs. If you are located in the Northeastern, Southeastern or Midwestern Regions, contact the Portland, ME office at (800) 343-1283. If you are located in the Southwestern or Western Regions, contact the Denver, CO office at (800) 341-8032.

Sources For Full Information

For complete information and specifications on Built-Up, Modified Bitumen and Single Ply roofing products and applications, please refer to the JM web site, http://www.jm.com/roofing_systems/132.htm.

Contact the Regional Technical Services Manager who can be reached through the JM Regional Sales Office nearest you, or the Technical Services Specialists at the Guarantee Services Unit. Request JM’s Brochure on Roof Insulation (RS-5070 12-98)
