C.W. Cole & Company, Inc.
2560 N. Rosemead Blvd.
South El Monte, CA 91733-1593
Tel: (626) 443-2473
Fax: (626) 443-9253
E-mail: info@colelighting.com
Web site: http://www.colelighting.com

C. W. Cole & Company, Inc. (Cole Lighting) has been providing solutions to lighting requirements since 1911. The product line includes a wide variety of specialty lighting fixtures for commercial and institutional applications. Custom fabrication capabilities allow modifications to standard products as well as completely unique products for specific job needs.

Product Description:
LIGHTRAIL illuminated handrails offer a flexible system for walkways, stairs, ramps, perimeters, and other locations where proper illumination is needed on the ground with minimal spill to adjacent surfaces and visible glare to the viewer. Requirements for handrails are met with features complying with ADA and other applicable codes. All fabrications are based on architectural drawings for configuration and field dimensions to ensure correct compliance with job conditions.

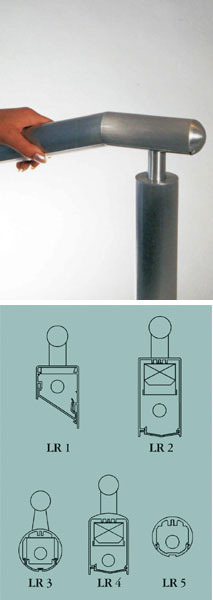

There are five standard designs of LIGHTRAIL, each offering different appearances and performance options, available either as post or wall mounted assemblies. The optional Griprail complies with code requirements for the grip surface.
• LR 1 provides an asymmetric light distribution when the illumination requirement is to only one side of the rail or when a sharp cutoff of light to the backside is required.
• LR 2 provides symmetrical light distribution and, with the ballast above the lamp, maximum light continuity.
• LR 3 has a popular round shape with wide distribution of illumination to both sides. Under certain circumstances, this model can be curved to follow architectural features.
• LR 4 is similar to the LR 2, with a lower profile and no lens visibility when viewed from the side.
• LR 5 is similar to the LR 3, but with an ADA-compliant 1.9" diameter profile featuring a T5 lamp for symmetrical illumination.
Construction:
All LIGHTRAIL models are extruded aluminum construction with high-impact acrylic prismatic lenses. The fluorescent lighting uses T5 or T8 lamps and has integrally mounted electronic ballasts. The rails are provided as complete units, prewired and ready for immediate installation. Long runs are fabricated in the longest length sections practical for fabrication and shipping. The standard finish is polyester powder coating, with anodized finishes also available. Custom models can also be fabricated in stainless steel and bronze.

Products Illustrated:

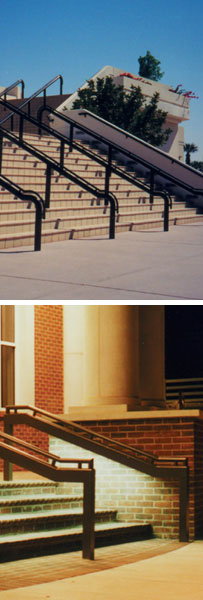

• LR3P-H-RE-EE (top / Marriott Desert Springs Resort, Palm Desert, CA)
• LR4P-H-EE (center / American Music Theater, Lancaster, PA)
• LR5P (bottom)

Other Products:
16520 Exterior Luminaires
