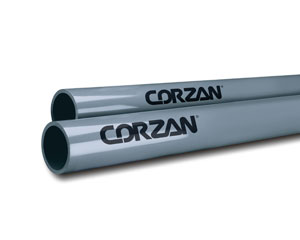

Corzan® CPVC Pipe & Fittings

The preferred choice for commercial plumbing installations.

Bigger projects often require bigger pipe. Corzan pipe and fittings, made of high-performance, corrosion-resistant chlorinated polyvinyl chloride, are available in diameters up to 16". They meet the cell class of 24448, one of the highest on the market today. In fact, these same Corzan products have successfully been used in industrial applications since the 1960s, proving that they offer the mechanical strength, chemical resistance and temperature resistance to endure demanding, highly corrosive environments. That means peace of mind for contractors and building owners.

Corzan pipe and fittings have been successfully installed in a variety of commercial applications around the globe, including hotels, hospitals, college dorms and high-rises, to name just a few. Savvy specifiers choose Corzan pipe and fittings not only for their durability but also because they offer a cost-effective, easy-to-install plumbing alternative that helps to keep commercial projects on-time and within budget.

Manufactured in a variety of Iron Pipe Size (IPS) diameters, Corzan pipe and fittings can handle high water pressures commonly required for commercial applications and are, therefore, ideal for use as risers and mains. A wide array of transition fittings are available to conveniently transition from the larger-diameter Corzan pipe to FlowGuard Gold® CPVC pipe or metal pipe.

Other benefits of choosing Corzan pipe and fittings:

  • Immunity to corrosion, pitting and scaling
  • Long-term reliable, low-maintenance performance
  • Fast, easy and safe installations using readily available, inexpensive tools
  • Lower total installed costs (resulting from stable material costs and reduced labor costs)
  • Proven, reliable solvent cement joints
  • Quiet operation
  • Uncompromised water quality (no copper contamination)
  • Superior antimicrobial performance
  • Energy efficiency from the pipe's natural insulating abilities that help retain heat
  • Reduced condensation
  • Outstanding flame and smoke properties

In addition to these performance and cost benefits, Corzan CPVC plumbing systems can easily be incorporated into eco-friendly designs that qualify for LEED certification.

As is true of all our piping systems, Corzan pipe and fittings are covered by the FBC Building Solutions' Quality Assurance Program, which establishes strict quality control standards in order to help ensure consistent, reliable product quality.

A Corzan plumbing system is just one more innovation made possible by FBC Building Solutions, which offers the industry's most diverse selection of piping solutions—rigid and flexible plumbing systems, as well as fire sprinkler systems. With so many proven products, combined with our more than 50-year track record of service and technical support, it's easy to see why there is no better solution than one from FBC Building Solutions.

Corzan pipe and fittings meet the following standards:

ANSI/NSF Standard 14
ANSI/NSF Standard 61
ASTM D1784
ASTM D2855
ASTM F402
ASTM F437
ASTM F439
ASTM F441
ASTM F493
ATM F656

Availability

IPS Schedule 80 CPVC pipe and fittings 1/2" – 16"

Available at leading wholesalers

Contact your local FBC Building Solutions technical support specialist to locate a supplier in your area. For more information, visit www.fbcbuildingsolutions.com. Or, call 888-234-2436, extension 4477393 to learn more.
