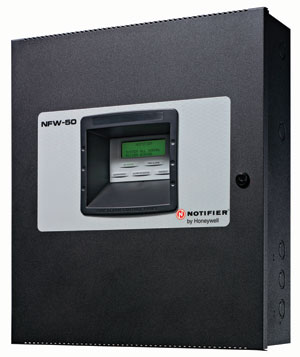

FireWarden Series NFW-50 Fire Alarm Panel – up to 50 Addressable Points

The FireWarden-50 is a UL 864 9th Edition listed addressable fire alarm control panel designed for smaller buildings requiring a minimal amount of initiating and notification devices. While offering all the benefits of addressable technology, the FireWarden-50 is a highly competitive and favorable alternative to conventional fire alarm systems.

• Small applications
• 1 SLC
• Up to 50 addressable points
• UL 864 9th Edition listed

• UL: UOJZ.S635
• ULC: Pending
• CSFM (non-high rise): 7165-0028:239
• MEA: 44-2-06-E, Volume 2

• Signaling Line Circuits (SLCs) 1: Style 4, 6, or 7
• Intelligent Devices – 50: any mix
• Notification Appliance Circuits (NACs): 2 (built in); Class A or B; each rated for 2.5 amps
• Voice Evacuation Available - Yes: requires direct connect to FireVoice 25/50
• Power: 2.7 amps total system power
• Annunciators – Yes; up to 8 LCD type
• Printer Interface – Yes; serial or parallel
