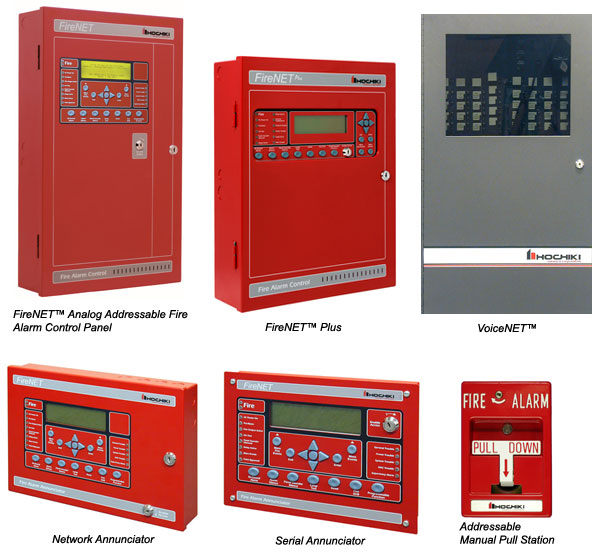

Consists of the analog addressable FireNET™ and FireNET™ Plus Control Panels. Each panel is equipped with 2 SLC loops, and may be expanded to 4 loops. Each loop supports 127 devices in any combination (sensors or modules). In addition, analog sounder bases may be used with each sensor on the loop, for a maximum capacity of 254 points per loop. FireNET™ Plus is an analog addressable control panel suitable for small to mid-sized installations. Each panel has 1 SLC loop, and may be expanded to 2 loops.
| STANDARD FEATURES | FireNET | FireNET Plus | | UL 864 9th edition approved | x | x | |
Analog design using Hochiki\'s advanced DCP protocol for fast and robust
communication | x | x | |
Up to 127 sensors & modules, plus 127 analog sounder bases, for a total of
254 points possible per loop | x | x | | Uses standard wire, no shielded or twisted pair required on SLC loops | x | x | | Supports Class B (style 4) and Class A (style 6 or 7) SLC loops | x | | | 4 on board Class B (style Y) NAC circuits rated at 2.5 Amp each | x | x | | Programmable sensitivity levels per device & automatic day/night
sensitivity modes | x | x | | Automatic daily calibration & drift compensation routine | x | x | | Large 8-line x 40-character LCD display (320 char.) | x | x | | 2 or 4 loop versions (800 addresses/sub-addr. max.) | x | | | 1 or 2 loop option | | x | | Dual RS-485 bus for panel network | option | option | 2 built-in RS-232 interfaces for programming via a PC and
serial printer interface | x | x | | 5 on board programmable Form C relays rated at 1 amp at 30VDC
(Fire1, Fire2, trouble, supervisory, aux.) | x | | | 3 on board programmable form C relays | | x | | 500mA of auxiliary power available rated at 24 VDC | x | x | | Loop Explorer Windows configuration utility | x | x | | *500 network wide software zones | x | x | | Network Capability of up to 64 panels | option | option | | RS485 slave bus for expansion – up to 32 FN-4127-IO boards or up to
15 FN-LCD-S serial annunciators and up to 16 FN-4127-IO boards | x | x | | integrated digital alarm communicator (DACT) option | | option | | Auto-learn feature | x | x | | Built in help and alarm information screens | x | x | | Fire Drill test function | x | x | | Walk Test function | x | x | | Alarm Verification feature | x | x | Powerful & versatile Cause & Effect programming (up to 500 maximum,
network wide) including: *Cause & Effect action,
*Disable function configuration, *Test mode configuration | x | x |
The FireNET™ series is available with a plexiglass window, sometimes called the Denver Door. This window meets requirements for major cities including Denver, CO VoiceNET™ distributed audio control for voice evacuation in high-rise buildings and similar applications
Provides true multiplex 6 channel distributed audio control. Includes integrated fire phone, area of rescue and fan and damper control capability. Live microphone page to any zone. Modular for convenience and cost effectiveness. Built-in alarm and alert signals, and message repeater. Up to 4-minute message capacity. The FireNET Control Panels work with devices including (but not limited to): - Serial and Network Annunciators
- Digital Alarm Communicator
- Analog duct detector
- Analog Addressable Modules for contact monitoring, output and relay function, short circuit isolation
- Analog Sensors – Please see the Detectors Products section for further details
- Bases
- Addressable Manual Pull Stations
- City Tie Module
- Power supplies
- Test Accessories
- FireNET™ Graphix Software Package
- Hand-held programmer for sensors and modules
