Ceco Door Temperature Rated Fire Doors Ceco manufacturers two types of temperature-rise rated fire doors:
Medallion® 450° Fire Doors
A temperature rise rating is not a requirement for qualification as a labeled fire door, but, when required, doors are built to meet this criteria. Ceco manufactures two types of temperature-rise rated fire doors. Medallion 450° is a temprature-rise rated door which allows the unexposed side of the door to reach a maximum of 450° during the first 30 minutes of testing. Fuego is a 250° temperature-rise rated door which will allow the unexposed side of the door to reach a maximum of 250° during the first 30 minutes of testing. Temperature-rise rated Fire Doors allow people to pass by the door safely when fire is on the other side. When an opening is required to retard the transmission of heat from one area to an ajacent area, a temperature-rise rated door is required. These doors are typically required in locations such as stairwell access doors, electrical control rooms, paint storage, etc. Temperature-rise designations indicate the maximum rise in temperature above ambient on the non-fire side of the door during the first 30 minutes of exposure in a standard fire test. Note: Always reference the most recent edition of ANSI NFPA 80 - Fire Doors and Fire Windows Medallion Fire Doors Medallion Fire Doors. Vertically Steel Stiffened core. UL, WH or FM label. Classified for openings rated up to three hours (Class A,B,C,D,E, and 20 minute) with optional 450 degree temperature restrictions. Tested and approved in accordance with UL 10b Ambient Fire Test and UBC 7-2 (97) Positive Pressure Fire Test, UL10C.
Available Options:

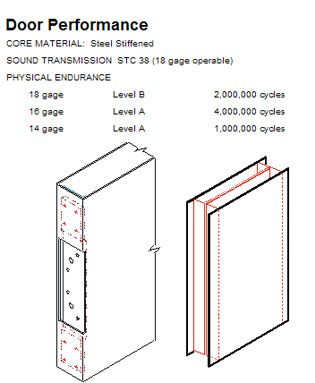

Doors with a Vertically Steel Stiffened Core Features:
|
