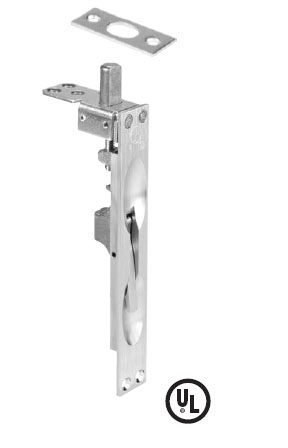

Material: Brass
Finishes: 605 - Bright Brass, 606 - Dull Brass, 612 - Dull Bronze, 613 - Antiqued Bronze, Oiled, 625 - Bright Chromium, 626 - Dull Chromium
Fastener: 8 ea. #8 x 3/4 FH Combo Screws
Features:
- Fits ANSI A115 door and frame preparation.
- 3/4" bolt throw
- 12" rod length
- 1-1/2" adjustment for doors and strike clearances
- Non-Handed
- Conforms to Positive Pressure Standards UL 10C & UBC 7-2 (1997)
Options:
- Other size rods available are 18", 24", 36", 48".
- Extra long bolt head - 2-1/2"
- Use DPS Series Dust Proof Strike(shown on page 2) to to eliminate dust or debris in the bottom strike.
| No. |
Size |
Weight |
ANSI A156.16 |
| FB01M |
Face Plate: 1" x 6-3/4"
Strike: 15/16" x 2-1/4"
Guide: 1" x 2"
|
1.5 lbs./2 |
LO4251 |
| FB01M-5 |
Face Plate: 1-1/4" x 6-3/4"
Strike: 15/16" x 2-1/4"
Guide: 1" x 2"
|
1.7 lbs./2 |
LO4251 |
| |
(Note: Extra Long Head Bolt not available on FB01M-5) |
Material: Cast Brass
Finishes: 605 - Bright Brass, 606 - Dull Brass, 612 - Dull Bronze, 613 - Antiqued Bronze, Oiled, 625 - Bright Chromium, 626 - Dull Chromium
Fastener:
- 2 ea. #8 x 1" FH Combo Screws
- 6 ea. 8-32 x 1/2 FH MS
- 4 ea. #8 Counter Sunk Washer
Features:
- 3/4" bolt throw, 3/4" backset; door strength maintained by corner reinforcing plate.
- Non-Handed
- Conforms to Positive Pressure Standards UL 10C & UBC 7-2 (1997)
Options: - Use DPS Series Dust Proof Strike (shown on page 2) to eliminate dust or debris in the bottom strike.
McKINNEY Products Company
225 Episcopal Road
Berlin, CT 06037
Toll-Free: (800) 346-7707
Fax: (800) 541-1073
Email: customerservice@mckinneyhinge.com
Web site: www.mckinneyhinge.com
|
