Full Mortise Anchor

All anchor sets consist of the top anchor and two 5" x 4-1/2" (127 x 114) three knuckle full mortise heavy weight hinges. Anchor sets are handed. Anchor hinges are used in abusive areas in which the door, jamb, and hinges experience unusual strain.

* Recommended for doors where door holders, door closers, or other hardware present mounting conflicts with the standard hinge anchor plate.
+ NRP furnished on set as standard. (Set consists of one anchor and two heavy weight full mortise three knuckle hinges.)

NOTE: Anchor hinges are handed and swaged for either square edge or beveled (hinge side) edge.

				Square Edge Door		Beveled Edge Door
Type	Size, In. (mm)	Gauge	Application	Steel	Non-Ferrous	Steel	Non-Ferrous
3 Knuckle	5 x 4-1/2 (127 x 114)	190+	Anchor plate for top of door only	TA791	TA391	TA5791	TA5391
			Anchor plate for top of door and frame header	TA792	TA392	TA5792	TA5392
			Anchor plate for frame header only	TA793	TA393	TA5793	TA 5393
			Anchor plate for top of door and frame header * Door plate is 4” (102)	TA794*	TA394*	TA5794*	TA5394*

All anchor sets consist of the top anchor and two 5" x 4-1/2" (127 x 114) three knuckle full mortise heavy weight hinges. Anchor sets are handed. Anchor hinges are used in abusive areas in which the door, jamb, and hinges experience unusual strain.

* Recommended for doors where door holders, door closers, or other hardware present mounting conflicts with the standard hinge anchor plate.
+ NRP furnished on set as standard. (Set consists of one anchor and two heavy weight full mortise three knuckle hinges.)

NOTE: Anchor hinges are handed and swaged for either square edge or beveled (hinge side) edge.

Full Mortise Institutional

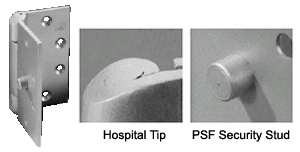

Full mortise institutional hinges (prefix HTB or ICHTB) are designed especially for maximum security installations including hospitals, high security schools, institutions, and prisons. Institutional hinges are available in either steel, stainless steel, or cast stainless steel and are supplied with (1/2 x 12-24) Torx pin head (suffix TXS)* security machine screws. The one piece nonremovable pin is held intact by the insertion of two sets of dowels held in double shear into an internally constructed shelf. Knuckles with tapered hospital tips prevent tampering and removal of pins.

To further enhance its security, this hinge is available with an optional prison safety feature (suffix PSF). Single studs projecting from the back of each leaf fit into the hinge reinforcement on jamb and door to prevent shearing of screws. Consult the factory for additional information regarding our security hinge line which includes additional sizes and electrification of hinge (magnetic monitoring not available with PSF security stud). Additional finishes are available in steel. Ball bearings are supplied as a standard on institutional hinges.

NOTE: PSF = prison safety feature
* Cast stainless hinge is drilled, countersunk and provided with 1/4-20 Torx pin head security machine screws
