2-Inch Deep Standard Performance Extruded Aluminum Louvers

E2JS Standard Blade is a 2" deep thin line louver with a standard blade. This louver style is ideal for a clean architectural appearance at a low cost. If you are intending the louvers to be used for general ventilation or air exhaust, this is the right choice. Deeper framed models are also available (E4JS). Louvers with a higher performance rating - more free area and lower pressure drop - are also available (E4JP, E6JP).

• Made to order in sizes 8" wide x 8" high up to unlimited size
• Made from heavy gauge 0.063" thickness aluminum extrusion
• Stock Louvers - check stock on this louver in a variety of sizes and shapes
• 2" frame depth, channel frame
• 2" blade spacing
• Standard blade
• Internal Screen (Bird Screen)

• 48.7% free area for a 48" wide x 48" high louver
• 725 fpm first point of water penetration
• 30 psf wind load rating

• A variety of metal finishes including paint and anodizing
• Insect Screen (replaces bird screen)
• Mounting: flange frame, glazing channel frame, "J" channel frame
• Special shapes for architectural appeal
• Higher wind load ratings

E2KS Storm Blade is a 2" deep thin line louver with a storm (baffle) blade. This louver style is ideal for a clean architectural appearance at a low cost. If you are intending the louvers to be used for general ventilation or air exhaust, this is the right choice. Deeper framed models are also available (E4KS). Louvers with a higher performance rating - more free area and lower pressure drop - are also available (E4KP, E6KP).

• Made to order in sizes 8" wide x 8" high up to unlimited size
• Made from heavy gauge 0.063" thickness aluminum extrusion
• 2" frame depth, channel frame
• 2" blade spacing
• Storm (baffle) blade
• Internal Screen (Bird Screen)

• 48.7% free area for a 48" wide x 48" high louver
• 725 fpm first point of water penetration
• 30 psf wind load rating

• A variety of metal finishes including paint and anodizing
• Insect Screen (replaces bird screen)
• Mounting: flange frame, glazing channel frame, "J" channel frame
• Special shapes for architectural appeal
• Higher wind load ratings

E2DS Drainable Blade is a 2" deep thin line louver with a drainable blade feature to channel water away from the blades. This feature allows higher air intake velocities before entraining water. If your application is air intake, consider this or other drainable louvers first. If this louver will not handle your intake velocities, consider a deeper louver or a wind driven rain louver instead (E4DS).

• Made to order in sizes 8" wide x 8" high up to unlimited size
• Made from heavy gauge 0.063" thickness aluminum extrusion
• 2" frame depth, channel frame
• 2" blade spacing
• Drainable blade
• Internal Screen (Bird Screen)

• 49.4% free area for a 48" wide x 48" high louver
• 889 fpm first point of water penetration
• 30 psf wind load rating

• A variety of metal finishes including paint and anodizing
• Insect Screen (replaces bird screen)
• Mounting: flange frame, glazing channel frame, "J" channel frame
• Special shapes for architectural appeal
• Higher wind load ratings

4-Inch Deep Standard Performance Extruded Aluminum Louvers

E4JS Standard Blade is a 4" deep louver with a standard blade. This louver style is ideal for a clean architectural appearance at a low cost. If you are intending the louvers to be used for general ventilation or air exhaust, this is the right choice. Louvers with a higher performance rating - more free area and lower pressure drop - are also available (E4JP, E6JP).

• Made to order in sizes 12" wide x 12" high up to unlimited size
• Made from heavy gauge 0.081" thickness aluminum extrusion
• 4" frame depth, channel frame
• 5" blade spacing
• Standard blade
• Internal Screen (Bird Screen)

• 50.4% free area for a 48" wide x 48" high louver
• 888 fpm first point of water penetration
• 30 psf wind load rating

• A variety of metal finishes including paint and anodizing
• Insect Screen (replaces bird screen)
• Mounting: flange frame, glazing channel frame, "J" channel frame
• Special shapes for architectural appeal
• Higher wind load ratings

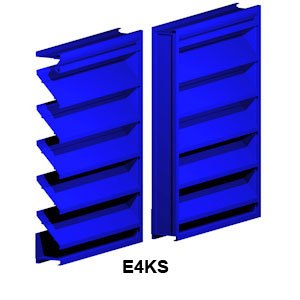

E4KS Storm Blade is a 4" deep louver with a storm (baffle) blade. This louver style is ideal for a clean architectural appearance at a low cost. If you are intending the louvers to be used for general ventilation or air exhaust, this is the right choice. Louvers with a higher performance rating - more free area and lower pressure drop - are also available (E4KP, E6KP).

• Made to order in sizes 12" wide x 12" high up to unlimited size
• Made from heavy gauge 0.081" thickness aluminum extrusion
• 4" frame depth, channel frame
• 5" blade spacing
• Storm baffle blade
• Internal Screen (Bird Screen)

• 50.4% free area for a 48" wide x 48" high louver
• 888 fpm first point of water penetration
• 30 psf wind load rating

• A variety of metal finishes including paint and anodizing
• Insect Screen (replaces bird screen)
• Mounting: flange frame, glazing channel frame, "J" channel frame
• Special shapes for architectural appeal
• Higher wind load ratings

E4DS Drainable Blade is a 4" deep louver with a drainable blade feature to channel water away from the blades. This feature allows higher air intake velocities before entraining water. If your application is air intake, consider this or other drainable louvers first. If this louver will not handle your intake velocities, consider a deeper louver, a high performance louver, or a wind driven rain louver instead (E4DP, E6DP, E6WH).

• Made to order in sizes 12" wide x 12" high up to unlimited size
• Made from heavy gauge 0.081" thickness aluminum extrusion
• 4" frame depth, channel frame
• 4.25" blade spacing
• Drainable blade
• Internal Screen (Bird Screen)

• 56.0% free area for a 48" wide x 48" high louver
• 930 fpm first point of water penetration
• 30 psf wind load rating

• A variety of metal finishes including paint and anodizing
• Insect Screen (replaces bird screen)
• Mounting: flange frame, glazing channel frame, "J" channel frame
• Special shapes for architectural appeal
• Higher wind load ratings
