Ecophon® Master™ Solo S High Density Fiberglass Ceilings


New Overview Image

It is our aim to help create superior environments pleasing to the eye, the ear and mind. The diverse design and installation potential of CertainTeed Ecophon® Master Solo S allows nearly limitless options in ceiling spaces.

CertainTeed Ecophon® Master Solo S, a free-hanging, sound absorption class A unit, which combines easy installation with an attractive appearance. The panel has no visible profile and the edges are painted to match the surface coating. The panel is ideal for applications requiring local noise level reduction and can be used to create different patterns and design combinations. The panels can be installed as single units, multi-units, or in combination with an Ecophon ceiling system.

When the conditions are right, the only limit is your own imagination. Master Solo S can be used to create stylish environments where acoustics and lighting contribute to the identity of the room.


New Overview Image

Acoustical, free-hanging unit for limitless design options

Features & Benefits:

  • Free-hanging unit with superior sound absorption
  • Sophisticated hanging components for ease of installation
  • Simple integration of lighting components
  • Laminated front and back with fully painted edges
  • Akutex FT white finish has perfect light diffusion (+99%)

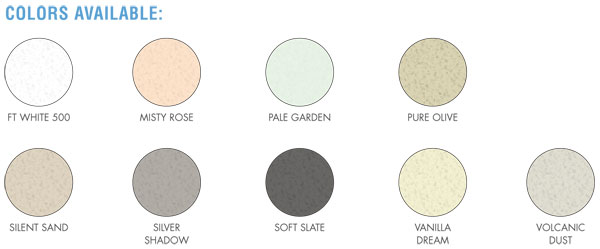

  • Available in 9 colors
  • Moisture Resistant
  • Recommended by Swedish Asthma and Allergy Association

Applications:

  • Auditoriums
  • Education
  • Restaurants
  • Offices

Warranty:
This product comes with a 10-year Ecophon Warranty


New Overview Image
New Overview Image

Green Information:
Ecophon® Master Solo S is a free-hanging fiberglass ceiling panel. It offers a high-recycled content (75% total, 70% post-consumer, 5% pre-consumer). The LEED calculation for this products recycled content is 73%. The acoustical performance of this product may contribute to points for a LEED project per that U.S. Green Building Council system.

Energy and Atmosphere (EA)
Credit 1 Optimize energy performance
Our ceiling panels with high light reflectance (above 0.82 according to ASTM E1477) can reduce lighting demands and subsequently the energy required to operate them. 1-10 points

Materials & Resources (MR)
Credit 4.1 Recycled content 10% (post-consumer + 1/2 pre-consumer)
Credit 4.2 Recycled content 20% (post-consumer + 1/2 pre-consumer)
CertainTeed Ceilings panels can contribute to the project recycled content. 1-2 points

Indoor Air Quality (EQ)
Prerequisite 3 (LEED for Schools only) Minimum acoustical performance
CertainTeed Ceilings high sound absorption ceiling panels can contribute to achievement of reverberation time goals (per ANSI 12-60-2002)

Indoor Air Quality (EQ)
Credit 2 (LEED for Healthcare only) Acoustic environment: exterior noise, acoustical finishes & room noise levels
CertainTeed Ceilings high sound attenuation panels can contribute to acoustic privacy goals and high sound absorption ceiling panels can contribute to those performance goals. 1-2 points

Indoor Air Quality (EQ)
Credit 4 (LEED for Schools only) Low-emitting materials (ceiling & wall systems)
CertainTeed Ceilings panels are certified low-emitting products (per Collaborative for High Performance Schools / adopted by Greenguard Children & Schools). 1 point


New Overview Image

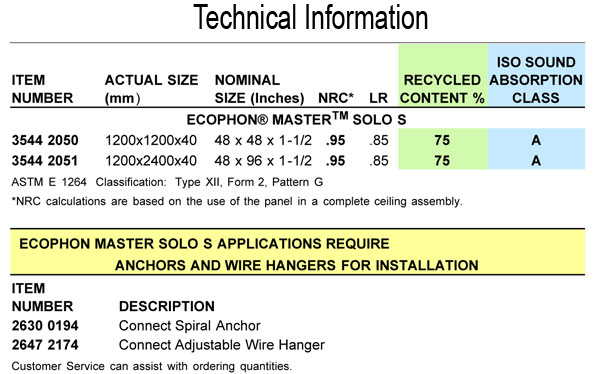

Ecophon Master Solo S is manufactured from high-density fiberglass and has a high recycled content of 75 percent. The product features Class A sound absorption and a 0.95 noise reduction coefficient (NRC), allowing them to enhance acoustic control in a space.  In addition, the visible surface of the ceiling panel has an Akutex™ FT surface finish, which offers 85 percent light reflectivity and 99 percent light diffusion. This helps create a pleasant, energy-efficient interior environment, with more natural distribution of lighting. The panels also can be combined with a wide variety of light fixtures that can either be integrated into or suspended through holes easily cut into the center of the panels.

Ecophon Master Solo S ceiling panels can be used as the basis of 3D installations as well. By using the panels in different levels and angles, the designer can make the ceiling the focal point of the space. The panels are available in nominal sizes 48 inches x 48 inches and 48 inches x 96 inches.  For more information, including an Ecophon Master Solo S installation video, visit www.certainteed.com/ceilings.
