Thin Veneer Stone Installation Details

Open Stud Wall

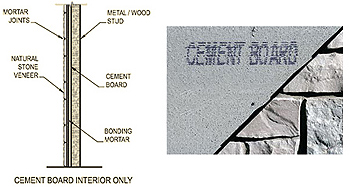

Cement Board Interior Only

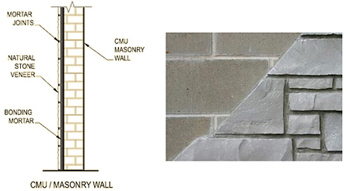

CMU / Masonry Wall

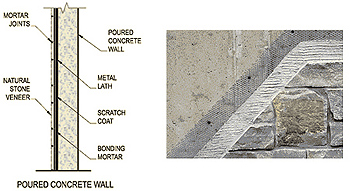

Poured Concrete Wall

Flat and Corner Packaging

Flats

• 10 Sq. Ft. per Box (approx)
• 180 Sq. Ft. per Crate ( approx)

*Olympia is packaged 165 Sq. Ft. per Crate

Corners

• 10 Lineal Feet per Box (approx)
• 100 Lineal Feet per Crate (approx)
• Ledgestone Collection is packaged for tight fit installation.
• All other collections packaged using a 1/2" mortar joint.
• NSVI recommends a thin set mortar meeting ANSI 118.4 on any exterior dry stack installation.
• Images shown in this catalog are intended to be as accurate as depictions of color and texture can be on the printed page. Because NSVI is a natural stone product shades may vary.
• For best results of color and texture, work from as many packages as possible.
