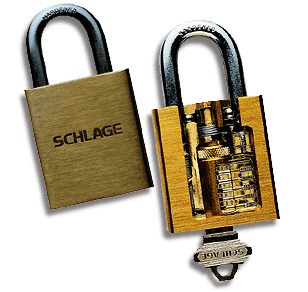

PL-SERIES PADLOCKS

Schlage PL-Series padlocks provide quick and easy integration into Schlage key systems. Separate keys for padlocks are no longer needed. Schlage gives you single key convenience. PL-Series padlocks can be masterkeyed into new or existing Schlage key systems, eliminating the need for more than one key. This integration allows you to standardize security hardware throughout any building or security area. The PL-Series padlocks are also available with Primus® High Security cylinders for applications that require extra security.

PL1000-SERIES
Body: Solid Brass 1-3/4"w x 2-1/8"l x 3/4"t
Shackle: 5/16" diameter, hardened steel, lengths available: 1-1/8", 2", 3" clearance
Cylinder: Schlage 6-pin solid brass
All Schlage keyways available. Primus High Security cylinders available.

PL2000-SERIES
Body: Solid Brass 2"w x 2-1/8"l x 3/4"t
Shackle: 3/8" diameter, hardened steel, lengths available: 1-1/8", 2", 3" clearance
Cylinder: Schlage 6-pin solid brass
All Schlage keyways available. Primus High Security cylinders available.

PL3000-SERIES
Body: Solid Brass 2-1/4"w x 2-3/8"l x 7/8"t
Shackle: 7/16" diameter, hardened steel,lengths available: 1-1/8", 2" clearance
Cylinder: Schlage 6-pin solid brass
All Schlage keyways available. Primus High Security cylinders available.

PL4000-SERIES (Interchangeable Core)
Body: Solid Brass 2"w x 2-1/4"l x 7/8"t
Shackle: 3/8" diameter, hardened steel, lengths available: 1-1/8", 2", 3" clearance
Cylinder: Schlage 6-pin solid brass
All Schlage keyways available. Primus High Security cylinders available.
