Beacon steel bollards and column guards are designed to protect workers and equipment. These products include steel pipe bollards, protective dome covers for bollards, high profile machine guards, structural rack guards, rack protectors and slim column protectors. The steel pipe bollards prevent equipment damage to moving vehicles. Protective dome covers for bollards prevent accidents caused by workers tripping over raised bolts. Column protectors help to protect pipes, tubing and columns from damage.
Description: The Beacon steel pipe bollard is ideal for use indoors and outdoors to protect work areas and personnel. The Beacon steel bollard and guard helps prevent equipment damage to moving vehicles. Bollards assist in the increase of traffic safety and are ideal for parking lots, warehouses and many other industrial areas.
Construction: Heavy-duty welded steel.
Size: Various heights ranging from 24" to 42". Outer diameters range from 1¾" to 5½".
Standard: Base plates include four pre-drilled mounting holes.
Color: Powder coated with a safety yellow finish.
Description: Beacon triple elbow wall corner bollard protects corners of buildings and machinery from damage caused by fork trucks or other mobile equipment. The 90-degree bend of this corner bollard fits snuggly around corners to provide optimum protection.
Construction: Welded steel construction.
Size: 24", 36" or 42" heights and in 24" or 30" lengths. Outside diameter of 4½" and a base plate size of 8" x 8".
Color: Powder coated safety yellow.
Description: Beacon column guards feature a two-piece design for protecting in-plant columns and other vertical supports.
Construction: Heavy-duty welded steel construction.
Service Range: Columns and vertical supports with measurements up to 19" x 19".
Size: 24", 36" and 48" heights. Inside width of 20" and an inside length of 20".

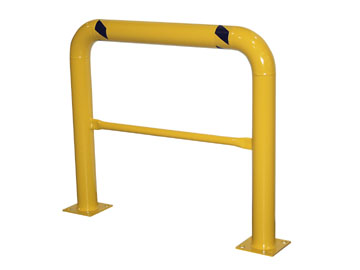

Description: Beacon high profile security bollard is designed to help enable fork truck and mobile equipment safety. They are ideal for protecting building walls, racks and many different types of expensive equipment. They feature 2 base plates, each of which has 4 pre-drilled mounting holes.
Construction: Heavy-duty welded steel.
Size: Range in height from 24" to 42" and come in lengths of either 36" or 48". The units have outside diameters of 1⅝" or 4½"
Color: Powder coated safety yellow finish.

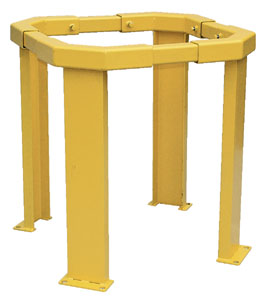

Description: Beacon modular column guard systems protect columns, racking, machinery and many other items frequently found in industrial settings. They are designed for quick assembly and are available in different railing lengths and heights to fit nearly any application. The modular guard railing sections are secured to each steel guard post with a single bolt. These protective post models are available in either corner post units or straight post units. These models also come in either single-rail or double-rail style. All components are sold separately.
Construction: Heavy-duty 3" square steel tubing.
Size: Available in effective lengths ranging from 48" to 144" and in overall lengths ranging from 56" to 152". The steel guard post units are 36" high.

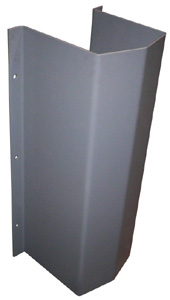

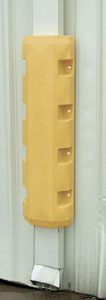

Description: Beacon pipe guard and downspout protectors safeguard pipes and downspouts from damage caused by impacts from mowers, fork trucks and similar work vehicles. The downspout pipe guard fits downspouts up to 5" in diameter. Installation hardware is not included with this downspout protector.
Construction: Steel or polyethylene.
Size: The polyethylene downspout pipe guard has an inside size of 5" wide x 5" deep and an overall size of 12" wide x 6" deep x 42" high. The steel downspout pipe guard has an inside size of 6"x 6" and an overall size of 10" wide x 6" deep x 42" high.
Description: Beacon structural column protectors give wrap-around protection from damage to columns, tubing or pipes. These structural column protectors can be stacked two high.
Capacity: 7,000 lbs. at 6 mph.
Construction: UV-protected polyethylene.
Size: The light duty column protectors have an outside width of 12" and an overall height of 42". The heavy-duty column guards have an outside width of 26" and an overall height of 42".
Color: Safety yellow.

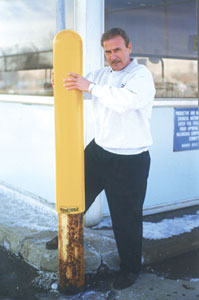

Description: Beacon plastic bollard covers increase the lifespan of bollards and keep them looking good with no need for repainting. Bollard coverings eliminate the need to hassle with scraping and maintenance on bollards. Bollard covers are ideal for indoor or outdoor applications and are perfect for warehouses, distribution centers and other industrial settings.
Construction: Molded from ¼" thick low-density polyethylene thermoplastic.
Size: Available with a height of 24", 36" or 42" with inside diameters of 4¾" or 5¾".
Installation: The bollard covers require no installation hardware; they are slipped by hand over the existing bollard.
Color: Safety yellow.
Description: Steel Pipe Guards are an asset to the protection of your building or garage pipes. By protecting pipes with these guards, your facility pipes remain safe from vehicle accidents or damage.
Construction: Heavy duty galvanized steel.
Size: Accommodate 6" or 8" pipe. (Note: special sizes available)
Description: Beacon pour in place traffic bollard safeguards personnel and work areas, both indoors and outdoors. The traffic bollard is designed specifically to be both set in and filled with concrete, enabling them to become permanent protective fixtures with maximum strength and durability. These steel and concrete bollards are extra long, allowing them to stand at optimum height after their bottom portion has been set in concrete. They feature welded anchoring tabs on their bottom portion, helping to ensure that the units remain permanently and securely anchored in the concrete. A removable cap allows the concrete to be poured in.
Construction: Heavy-duty steel.
Size: Overall heights ranging from 34" to 58" and usable heights ranging from 24" to 48". All bollard models have an outside diameter of 5½".
Color: Powder coated safety yellow for maximum visibility.
Description: Features an attractive look while efficiently protecting employees and work areas. For added strength and longevity, this steel bollard may be filled with concrete by removing the unit's black plastic cap. The mounting plate of this safety post is pre-drilled with four
½" diameter holes for installation.
Construction: Heavy-duty steel finished with bright chrome plating.
Size: 48" high and 4" in diameter. Its base plate diameter is 8".

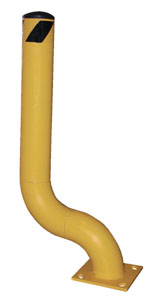

Description: Beacon offset steel bollard guard, with their curved base plates, are designed so that they will not interfere with vehicle traffic. These steel bollard guard has a removable rubber top cap, their base plates feature 4 pre-drilled mounting holes and come standard with black/yellow safety tape.
Construction: Heavy-duty welded steel.
Size: 4½" outside diameter, 10" x 10" base plate and heights of 35", 47" or 53".
Color: Powder coated safety yellow for maximum visibility.
Description: Beacon removable bollard is practical, efficient barrier equipment for work areas that have considerable vehicle traffic. It is held in place with a sleeve that is set in concrete. The removable bollard is designed to be lifted out of the sleeve when access to the area is needed and then later put securely back in place. The sleeve is included with each bollard.
Size: Usable height of 36", 42", or 48". Overall height of 46", 52", or 58". Diameter is 5½".
Color: Powder coated yellow.

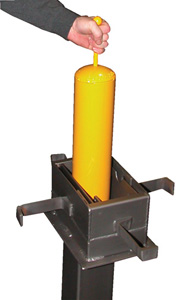

Description: Beacon self storing bollard system is excellent for areas that have a good deal of vehicle traffic. The bollard system slides down to floor or ground level and out of the way when not needed. These safety posts come with a sleeve that can be set into concrete. The bollard features a handle on its top portion that allows it to be lowered and later raised. The unit also features a locking tab to be used with a padlock (padlock not included) to safeguard the bollard against unauthorized operation.
Construction: Heavy-duty steel.
Size: 5½" diameter and a 45" sleeve height. It has a usable height of 42" and a collapsed height of 1½".
Color: Powder coated yellow finish for maximum visibility.
Description: Beacon orange or gray colored traffic barricade is ideal when barriers are needed but appearance also is important. The traffic barricade is highly efficient both for crowd and vehicle control. The traffic barricade is lightweight, hollow and may be filled with water or sand for added weight. The barriers have a 2 inch drain and a 4" fill cap.
Capacity: The fill capacity is 60 gallons.
Size: 35" high, 16" deep and 72" long.
Description: Removable Bollards are designed as ornamental bollards to secure your parking or traffic areas while allowing the versatility to remove the bollards when the need arises. The Beacon Removable Bollards feature an attractive ornamental bollard design and finish and securely lock into a socket fastened into the ground.
Size: 40" high and 6" diameter.
Operation: Bollards lock into the socket which is cemented into the ground. When the bollard is to be removed, a seal covers the hole which is flush to the surface area.
Power: Powder coated black finish.
Description: Self Storing Bollard Posts with Door and Lock are designed to store in the ground when not needed. Each bollard post includes a sleeve which is to be set in the ground or concrete and houses the bollard. Bollard Posts have an easy to lift handle on the top of the bollard that enables convenient raising and lowering of the posts.
Construction: Steel
Size: 42" high and 5
½" diameter.
Operation: Bollard posts twist and lower into the ground and twist and raise for a locked upright position.
Color: Safety yellow powder coat finish.
|
