Soundmaster – Accordion Partitions – Electric and Manual Operation

PRODUCT PRESENTATION

When both durability and finish selections are important, Modernfold's Soundmaster accordion partitions fit the bill.

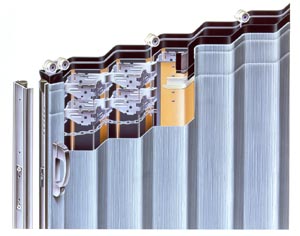

LONG-TERM STRENGTH AND DURABILITY results from Soundmaster's three-dimensional welded steel frame and heavy-duty track system. Extra-strength pantograph hinges provide added support, while giving Soundmaster its uniform appearance.

ACOUSTICAL PERFORMANCE – up to 40 STC – is provided by Soundmaster's steel sound liner and three-ply top and bottom sweeps.

EASE OF OPERATION is assured by a trouble-free ball bearing trolley system.

Soundmaster partitions can be acoustically enhanced for sound absorption with the Quiet-Wall (carpet) option. This option offers high aesthetic appeal in a strong, yet easy to care for finish. Quiet-Wall offers an acoustically absorbent, vertically ribbed non-woven carpet in a variety of attractive colors. Quiet-Wall can achieve NRC ratings of up to .85.

Vinyl-clad steel, vinyl-clad wood, woven fabrics, carpet and vinyl fabrics comprise the largest selection of standard finishes in the industry. Every finish offered by Modernfold caries a Class "A" flame spread rating.

Soundmaster – Manual Operation

• Configuration: Fabric Accordion
• Manual Operation
• Stack Profile: 12.63”
• Max Height: 16’-0”
• Max Width: 60’-0”
• Max Area: 360 SF
• Hanging Weight: 5.5 PSF
• STC: 40
• Quiet Wall Option: NRC .60

• Configuration: Fabric Accordion
• Electric Operation
• Stack Profile: 12.63”
• Max Height: 16’-0”
• Max Width: 60’-0”
• Hanging Weight: 5.5 PSF
• STC: 40
• Quiet Wall Option: NRC .60

1. Furnish and install accordion folding partitions as indicated on drawings.
2. Manufacturers wishing to bid products other than the product specified herein, shall submit to the architect 10 days prior to bidding a list of three (3) past installations of products similar to those listed. Complete catalog data, along with deviations from the product specified shall be noted in the submittal to the architect. The manufacturer guarantees the proposed substituted product to comply with the product specified and as detailed on the drawings, unless the deviations are so noted in the submittal for approval.
3. Complete shop drawings shall be provided prior to fabrication, indicating construction and installation details. Shop drawings shall be submitted within 60 days after receipt of signed contract.
4. Related work by general contractor (and/or specified in other sections).
1. Paint or otherwise finishing all trim and other materials adjoining head and jamb of folding partitions. See section___________.
2. All header, blocking support structure, jambs, track enclosures, surrounding insulation, sound baffles and trim as required for installation of the folding partition. See section___________.
3. Prepunching of support structure in accordance with approved shop drawings.
4. Prepare the opening to dimensions specified, plumb, level and in accordance to building practices.

1. Product shall be Soundmaster Model SM 12, as manufactured by Modernfold and furnished and installed by an authorized Modernfold distributor.
2. Operation shall be manual or electric (select) top supported.
3. Frame construction shall consist of steel hinge plates, welded to .18" (4.6) diameter vertical steel rods. Single row at bottom, intermediate rows approximately 42" (1067) on center, single row at top (over 12'-0" (3658) high, double-truss row at top). Trolley pin of high tensile alloy steel, to be encased in structural hinge plate channel.
4. Options: (See page 4 of 4).
5. Finish: Outer covering shall be (select one): (heavy-duty, 27oz., textured vinyl with woven polyester backing.) (Standard fabrics) (Quiet-Wall option vertically ribbed wall carpet.) Color shall be selected from manufacturer's current color line. Finish shall be class "A" rated in accordance with ASTM E84. Outer covering shall be independent of sound insulation. Laminated coverings will not be accepted.
6. Suspension System shall consist of continuous C Channel shape track, connected to the structural support. Frame shall be supported by ball bearing trolley assemblies.
7. Sound Seals shall be pairs of triple layer flexible sweep strips at top and bottom. Vertical female sound channel shall be polyurethane-foam lined.
8. Air Release System: Air trapped within the partition shall be released during entire stacking operation, through .38" (10) diameter holes, which comprise a minimum of 5% of lead post face area.
9. Sound Insulation: 22 ga., V-grooved steel panels and heavy duty flame resistant acoustical membrane. Each panel attaches to the frame with steel leaf fasteners.
10. Laboratory Acoustical Performance of the folding partition shall have been tested in an independent acoustical laboratory, in accordance with ASTM E90 test procedure, and shall have attained an STC rating of no less than 40. A written test report, by the test facility, shall be available upon request.

With Quiet Wall option, the folding partition shall have been tested in an independent acoustical laboratory in accordance with ASTM C423 test procedure, and shall have attained a noise reduction coefficient (NRC) of no less than .60. A written test report by the test facility shall be available upon request.

11. Grip Type Hand Pulls shall be die cast zinc, powder coat paint finish, and include a thumb release latch mechanism. Extruded aluminum or plastic hand pulls will not be accepted.

1. Preparation of opening shall be by the general contractor. Any deviation or site conditions contrary to approved shop drawings shall be called to the attention of the architect.
2. Delivery to the job site shall be coordinated by the general contractor. Proper storage of doors before installation and continued protection during and after installation shall be the responsibility of the general contractor.
3. Installation shall be by a local Modernfold authorized factory trained installer. Installation shall be in accordance with approved shop drawings and in accordance with ASTM E557.
4. Installation shall be guaranteed for one (1) year against defects in material and workmanship.

1. Electrical Operation: Electrically operated Soundmaster Model SM 12 shall be operated in 11 ga. steel track with flanged steel ball bearing trolleys. Drive mechanism shall be roller chain type. All auxiliary equipment for electrical operation including track with integral chain guides, roller chain, drive unit and motor key operated control, overload safety device, and drive sprocket assemblies shall be supplied by partition manufacturer. Power supply circuits, wiring and electrical connection shall be work by the electrical contractor. (B. Product, Item 2, Operation)
2. Jamb-Lock: Backpost to be secured to the wall by the "Jamb-Lock" mechanism concealed within the backpost, to provide a quick means of releasing and re-attaching the partition for cleaning and decorative purposes. (B. Product, Item 4, Options.)
3. Locks: Powder coated paint handpulls with (select: manufacturer's standard locks, or master-keyed locks). Master-keyed cylinders furnished by others. Locks shall be an integral part of the pull. (B. Product, Item 4, Options); manually operated partitions only.
