Acousti-Seal Models 931 / 941 / 911 Operable Walls – Single Panels

PRODUCT PRESENTATION

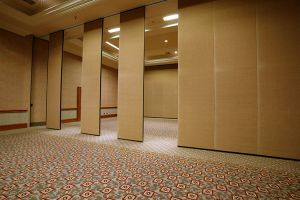

Single Panel Systems
Single panel systems provide the ultimate in versatility and flexibility. Each panel is moved independently into position. Single panels are ideal for applications that require especially tall panels because each panel is supported by two carriers. Single panels also offer the widest choice of bottom seals to accommodate different job site conditions. Single panels are often used in multi-purpose rooms, exhibition halls and commercial buildings where maximum flexibility is required.

Modernfold's suspension system used with single panels permits the use of track with switches, curves, and right-angle turns. That makes possible multiple room setups, changes in the location of pass doors and work surfaces, and remote storage. And speaking of storage, Modernfold's programmable trolley and automatic panel position system make storage especially easy.

Acousti-Seal 931

  • Single Panels – 3" Thick
  • Manual Operation
  • Top Support
  • Max Height: 28’-2” (custom solutions available beyond maximum height)
  • Max Width: Unlimited
  • STC Range: 41 to 52
Acousti-Seal 941
  • Single Panels – 4.25" Thick
  • Manual Operation
  • Top Support
  • Max Height: 28’-2” (custom solutions available beyond maximum height)
  • Max Width: Unlimited
  • STC: 55
Acousti-Seal 911 with 1-Hour Rating UL-10B
  • Single Panels – 3" Thick
  • Manual Operation
  • Top Support
  • Max Height: 28'-2"
  • Max Width: Unlimited
  • STC Range: 45 to 52
Note: Height limits vary with STC specified. Custom designs to greater heights also possible.

STC Ratings (ASTM E90) and Weights (average)
Non-Steel Skin:

41 STC: 6.5 PSF
47 STC: 7 PSF
50 STC: 8 PSF

Steel Skin:
28 STC: 6 PSF
45 STC: 8 PSF
50 STC: 8 PSF
52 STC: 11 PSF
55 STC: 13 PSF

Pocket Doors
Pocket Doors to match the construction of all Acousti-Seal Operable Walls are available from Modernfold. Please call Modernfold for technical assistance and refer to the specifications attached to this Product Profile.

USES, APPLICATIONS

Modernfold is the right choice for projects large or small. Modernfold built the operable partition for Chicago's McCormick Place Expansion, a moveable wall nearly 830 feet long and four stories tall with a 2-hour fire rating (ASTM E-119). Regardless of the size of the project Modernfold will assist in finding the right partition for the job. Modernfold partitions are used extensively in schools, commercial buildings, hotels and churches around the world.

TECHNICAL SUPPORT


Specs for Models 931, 941 and 911: Please refer to the formatted architectural specifications attached to this Product Profile.

Details for Model 931:
Please refer to the CAD Library details attached to this Product Profile.

OPERATION, MAINTENANCE

Modernfold Service Centers are the only coast-to-coast network of factory trained certified technicians for operable walls and accordion partitions. Regardless of the brand, Modernfold Service Centers are ready to maintain or repair the partitions. Call 1-800-869-9685 to locate the nearest Modernfold Service Center.
