Basketball Backboards

Limited Lifetime Warranty on all Basketball Backboards Incorporating EZ Fold Goal Brace

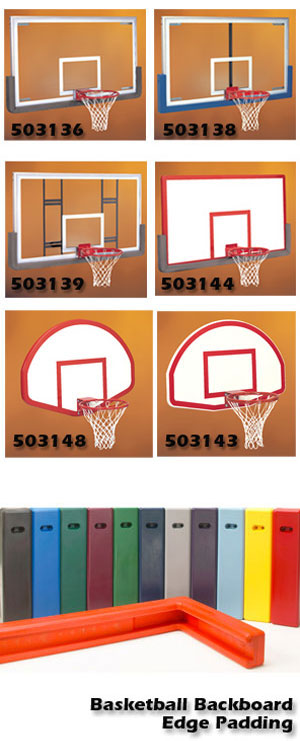

503136 Rectangular Glass 72" × 42" Basketball Backboard

Fully tempered 1/2" glass with official white target and border permanently fired into glass. Frame constructed of extruded brushed aluminum. Used only for backstop structures with Goal Brace direct goal attachments. Indoor use only

Same features as 503136 in a compact size for smaller gymnasiums. Indoor use only

Same features as 503136 with additional vertical strut to relieve stress on glass during slam dunks. Goal is bolted to a plate welded to bottom of strut for maximum strength. Used only for backstop structures with four-corner backboard mounting. Indoor use only

Designed to replace fan shaped backboards. Same features as 503136 with all required conversion framework attached to backboard. Incorporates a horizontal member which bolts to goal for maximum strength. Indoor use only

White backboard is fabricated with double 3/16" shell over resin-treated honeycomb core. Orange border and target are applied with a high gloss gel-coat. Steel attachment T-nuts and goal attachment holes are through solid plastic blocks encased between the shells. Indoor or outdoor use

Finest wood backboard available. 55 PCF density solid laminated wood core with eggshell white polyurethane face to resist abrasion. Inner panels are thermally fused. Border and target markings are part of laminate to prevent wear. Indoor use only

Constructed of one-piece 12 ga. steel reinforced with formed steel channel sections at goal and mounting points. Finished with primer and two coats of outdoor white enamel. Fan mounting center. Indoor or outdoor use.

Constructed of high strength aluminum frame and 1/2" fully tempered glass. Official white target and border are permanently fired into glass. Indoor use only

Constructed of high quality resins and fiberglass for years of maintenance-free service. Target and borders are screened on for lasting durability. Indoor or Outdoor use.

White, solid die cast aluminum with reinforcing ribs for added strength. White powder coat finish and lifetime warranty. Includes orange border and target. Indoor or Outdoor use.

Natural finish—Same construction as A0135 in natural aluminum finish. Lifetime Warranty. Outdoor use only

Ideal for windy areas. The 11-gauge steel skin is perforated with1/4" holes in a pattern to form border and target. Backboard includes a tubular sub-frame for added strength. Not for use with 3-1/2" O.D. or 4-1/2" O.D. posts. Outdoor use only

Ideal for windy areas. The 11-gauge steel skin is perforated with1/4" holes in a pattern to form border and target. Backboard includes a tubular sub-frame for added strength. Not for use with 3-1/2" O.D. or 4-1/2" O.D. posts. Outdoor use only

Gives the look of glass without the potential for breakage. Constructed with 1/2" thick clear polycarbonate that is framed with aluminum extrusions and steel corner brackets. Includes a steel tubular sub-frame for added strength. Silk-screened white border and target. Not for use with 3-1/2" O.D. posts. Outdoor use only

This backboard features the same construction as the 503035 but in a larger competition size. Not for use with 3-1/2" or 4-1/2" O.D. posts. Outdoor use only

503253 A 2" gray safe-edge, glue-on padding made from an open cell foam material, for use with glass backboards.
503264 A 1-1/2" gray safe-edge, glue-on padding made from an open cell foam material suitable for fiberglass, wood, aluminum and steel backboards.
5032XX Bolt-on padding for indoor backboards, available in 12 colors.

For more information check out our website: http://www.draperinc.com/go/BBallBackboard.htm
