BUILDERS FENCE COMPANY, INC.
HEAVY GUARDIAN True to its name. Guardian provides unsurpassed protection in ornamental iron fencing for the high-security facility. Its handsome, curved pickets appear imposing and impenetrable - yet are more enduring than unsightly barbed wire. The standard 3/4" pointed pickets extends twelve inches above the top rail, bending forward to make climbing almost impossible. The pickets are securely welded to the front side of the rails, and are available in your choice of standard or customs spacing. Each panel is fabricated to the most exacting quality standards. It is designed for easy installation and maximum life expectancy...with the use of the most modern and effective rust inhibiting agents. Fencing: GUARDIAN BY BFC Rails: 1-1/2" x 1-1/2" 14 GA. tube steel. Swing Gates: Framework as required for size, but not less than that of panels. Hardware as required. Trussing and heavier post may be necessary. Note: All swing gates must open in the direction opposite of the "bend" side. Slide Gates: 2" x 2" 11 GA. tube steel top rail and end verticals.
Bottom rail shall be 2" x 4" 11 GA. tube steel with wheel housings.
Materials: Structural tubing per ASTM A500.
Fabrication: Shop drawings to be submitted prior to fabrication. Paint Preparation: After fabrication, materials are to be power washed in a phosphoric acid solution, rinsed, dried and receive a paint finish selected from the finish options. Installation: All fence panels and gates are delivered prepared for welded installation (if other methods of installation are required, please specify). After installation, all welds and abrasions are to be ground if necessary, thoroughly cleaned, reprimed, and touched up with same paint as applied at factory. Note: Sizes, frames, gauges, spacings, finishes, and configurations listed are standards only and can be modified according to specific needs.
BFC HEAVY FENCE STYLES WELDED STEEL CONSTRUCTION PROVIDES OPTIMUM STRENGTH BFC Heavy and Extra-Heavy Grade Iron Fencing continues to be the first choice of specifiers of true security fencing. BFC’s all-welded construction ensures durability and rigidity that "erector-set" type fence can not produce. BFC gladly modifies any of these styles to meet clients’ custom requirements.

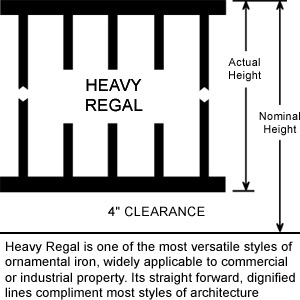

FENCE PANELS REGAL • ARISTOCRAT • GUARDIAN STANDARD SIZES: REGAL & ARISTOCRAT:Heights: 5’, 6’, 7’, and 8’. Lengths: 94", 118"GUARDIAN: Heights: 7’, 8’, 9’, and 10’. Lengths: 94" RAILS: 1-1/2" x 1-1/2" 14 GA. steel tube
GATES SWING GATES: Framework as required for sizes, but not less than that of panels. Pickets to match panels. Hardware as required. Trussing and heavier posts may be necessary. SLIDE GATES: 2" x 2" x 11 GA. steel tube top rail and verticals. Bottom rail shall be 2" x 4" x 11 GA. steel tube with wheel housings. Ground track to be angle iron (sized per requirements) with #4 rebar hooks welded at 24" O.C. Wheels shall be 6" diameter V-Groove type with grease fitting and needle bearings. Upper guides to be BFC roller assemblies with 2" diameter hard rubber rollers, 1/2" axle, and bronze bushings. Guide posts and safety posts to be minimum 4" sq. 11 GA. steel tube. XTRA-HEAVY REGAL: 2" rail (14 GA.) - 1" pickets (16 GA.) - 5"
O.C. or 6" O.C. STYLE & FINISH OPTIONS RECOMMENDED FINISH GALVA-GUARD I Pre-Galvanized Tubing and Polyurethane Painted FOR EVEN MORE PROTECTION GALVA-GUARD II Hot-Dipped Galvanized and Polyurethane Painted Both the GALVA-GUARD I and GALVA-GUARD II provide long lasting beauty and superior corrosion protection. BFC polyurethane coatings can match any color specified. In addition to our recommended finish, stated above, BFC also offers the following more economical finishes for use in dry, non-corrosive environments. BFC POLY-PRO + Polyurethane Painted. After fabrication, materials are power washed in an iron phosphate solution and receive one spray coat high solids polyurethane primer and one spray coat high solids gloss black polyurethane paint. Polyurethane Paint is a high solids aliphatic two-component polyurethane coating system where exterior durability and color control are essential.
TWO COAT ENAMEL After fabrication, materials are power washed in an iron phosphate solution and receive one spray coat shop primer and spray coat gloss black enamel. POLYESTER POWDER COATING After fabrication, materials are power washed in an iron phosphate solution and receive one coat polyester powder. ONE COAT ENAMEL After fabrication, materials are power washed in an iron phosphate solution and receive one coat gloss black enamel. This one-coat system is intended as a primer and it is recommended that a top coat be applied. * BFC Tacoma manufacturing facility produces only pre-galvanized tubing with one spray coat shop primer and one spray coat black enamel. The finishes listed are available from the Tacoma manufacturing facility by special order only.
DESIGN VARIATIONS Beautify with Elegant Variations Available in residential and commercial grades. We will gladly modify any of our styles to accommodate your particular problems or designs, or we will fabricate an entirely new look based on your own specifications.
BFC GATES Customized Gates These are just a few samples of our beautifully designed gates that BFC can manufacture to your specifications. We provide detailed drawings with any required special instructions. Options include custom styles and colors. Call your sales Representative for details.
BOTTOM TRACK CANTILEVER GATE SYSTEM Cantilever Gate Specifications Example: All items are galvanized and recommended finish is applied with matching colors to choose. System Components:
INSTALLATION VARIATIONS Elevation Changes Elevation changes require a post. In other words, a level fence that starts up or down a slope must have a post where the slope starts and ends. Likewise, if a fence changes height (as in step height changes), there must be a post at the point of each height change. Note any slope the fence must cross. Is it uphill or downhill? Attachment Point out any place the fence will attach to existing posts, walls or structures and note how the fence is to be attached. Indicate what is to be attached to and the location for the attachment. Pilasters For pilasters further than 8' apart, a center leg may be put in the middle for support. If the distance is more than 10' between pilasters, or the fence is greater than 5' in height, it is recommended that a post be used in the center. Special Situations List any special conditions that might need consideration such as children or small dogs.
Bias Panels Bias panels are made on an angle to match the ground contours. Such a panel is used when the customer does not want the fence to step or when over the length of the panel, there is more than a 4" drop (for Regal, Napoleon or Empire styles) and more than a 2" drop (for Aristocrat and Modern styles) in question. Measure the length of the biased panel to the next foot and be sure to include a post at the top and the bottom of the bias. Include the dimensions shown in the illustration to the right.
Tapered Panels Tapered panels allow for a fence with a level top line while adjusting for changes in ground elevation, Be sure to note the height of both ends of the tapered panel as viewed from outside the fence line.
Curved or Arched Panels Curved panels are used to soften a corner or to match an existing design or to create a soft flowing fence line. Be sure to include the measurements indicated by the illustration to the right. Show dimensions on the plan if curved panel and on the elevation if arched panel.
Notches A notch is a situation where a corner of a gate or a panel is cut out to facilitate installation around a low wall, or other small obstacle the fence will have to fit around. Fully describe any cut outs in the fence. |
