Loading Dock Bumpers

Loading dock bumpers are typically used at factories, warehouses, distribution centers or any facility where trailer loading and unloading takes place. Loading dock bumpers help protect your $20,000 investment (building, seal or shelter, dock leveler, and vehicle restraint)

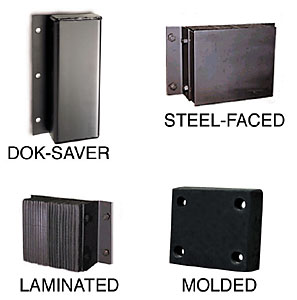

Four Styles: DokSaver®, Steel Faced, Laminated and Molded
Installation: 3/8” structural steel mounting angles allow dock bumpers to be welded, or provide bolting through steel. No assembly required.

DokSaver®
Furnish and install DokSaver® dock bumpers as manufactured by the Rite-Hite Aftermarket Corporation, Milwaukee, WI. Bumpers shall project either 4” or 6” from the wall face (Custom projections, widths and heights are available). DokSaver bumpers shall be manufactured with a ½” thick heavy-duty high carbon steel floating face cap that moves upon impact. Bumper shall have the ability to withstand 75,000 pounds of pressure, and have ¼” mounting plate which has two or three anchor bolt holes as required. (Anchor bolts are supplied by others.) Complete with industry best 10-year warranty.

Steel Faced
Furnish and install steel faced dock bumpers as manufactured by the Rite-Hite Aftermarket Corporation, Milwaukee, WI. All bumpers shall project either 4” or 6” from the wall face (Custom projections, widths and heights are available). Steel faced bumpers shall have a 3/8” thick heavy-duty high carbon steel face that shall be mounted to a laminated dock bumper with elongated holes. The laminated dock bumper shall be manufactured from recycled truck tires, cut to uniform size laminates and punched to receive 3/4" supporting rods.

Bumper shall be closed with two 3" x 3" x 3/8" structural angles. Angles shall be welded to 3/4" rods on both sides, finished off smooth and painted. The structural angle extends a minimum of 3” beyond the rubber surface at either end and contains two or three anchor bolt holes as required. (Anchor bolts are supplied by others.) Complete with 5-year warranty.

Laminated
Furnish and install laminated rubber dock bumpers as manufactured by the Rite-Hite Aftermarket Corporation, Milwaukee, WI. All bumpers shall project either 4” or 6” from the wall face (Custom projections, widths and heights are available). Laminated bumpers shall be manufactured from recycled truck tires, cut to uniform size laminates and punched to receive 3/4" supporting rods. Bumper shall be closed with two 3" x 3" x 3/8" structural angles under approximately 1,500 pounds of pressure. Angles shall be welded to 3/4" rods on both sides, finished off smooth and painted. The structural angle extends a minimum of 3” beyond the rubber surface at either end and contains two or three anchor bolt holes as required. (Anchor bolts are supplied by others.) Complete with 2-year warranty.

Molded:
Furnish and install molded rubber dock bumpers as manufactured by the Rite-Hite Aftermarket Corporation, Milwaukee, WI. All bumpers shall project 4” from the wall face (Custom projections, widths and heights are available). Molded bumpers shall manufactured from reinforced rubber and be one-piece solid rubber. Bumper shall be molded to size to readily accept two or four anchor holes. (Anchor bolts are supplied by others.) Complete with 1-year warranty.
