SlipNOT® vault covers are used by utility companies, municipalities and transportation, companies to keep workers and pedestrians safe in wet and oily condition.
- Available Stock Thickness: ¼" and up
- Available Stock Width: Customer specific
- Available Stock Length: Customer specific
- Customized shapes and sizes can be fabricated to meet job specifications.
- Slip Resistant Standards: Even after years of use, underground vault covers coated with SlipNOT® far exceed all state and local requirements for slip resistance. Underground vault covers exceed all requirements for coefficient of friction specified by ANSI, ASTM, NFPA, ADA and OSHA. SlipNOT®’s coefficient of friction is greater than or equal to .85.
- Approval: Underground vault covers are approved and used by utilities such as: Pacific Gas and Electric, San Diego Gas and Electric, AT&T, Verizon, Seattle, New York, San Francisco, Portland and many more.
ADA Information:
- SlipNOT® Grip Plate® far exceeds all ADA requirements.
Product Information:
- Available SlipNOT® surface: Aluminum, Stainless Steel, Steel
- Available in: Grade 1 (Fine), Grade 2 (Med.), (Grade 3 Coarse, only offered on Steel SlipNOT® surface).
- Available Alloy: 5052, 6061 Aluminum
Product Features:
- Durability: Underground vault covers coated with SlipNOT® have a bond strength of 2000 psi.
- Finishes: Aluminum underground vault covers can be ordered with a mill finish or painted.
- Fabrication: Underground vault covers can be pre-cut to size and fabricated to fit specific meter or pull box frame design. Custom sizes can be purchased and can also be sheared, welded, flame cut, torch cut, laser or water-jet cut, plasma cut, countersunk, drilled and punched for complete versatility both in the shop and field.
Product Information:
- Available SlipNOT® surface: Steel
- Available in Grade 2 (Med.), Grade 3 (Coarse)
Product Features:
- Durability: Underground vault covers coated with SlipNOT® have a file hard surface of over 55 Rc with a bond strength of over 4000 psi.
- Fabrication: Underground vault covers can be pre-cut to size and fabricated to fit specific meter or pull box frame design. Custom sizes can be purchased and can also be sheared, welded, flame cut, torch cut, laser or water-jet cut, plasma cut, countersunk, drilled and punched for complete versatility both in the shop and field.
- Corrosion resistant

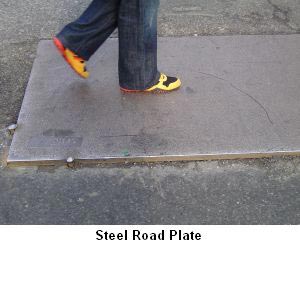

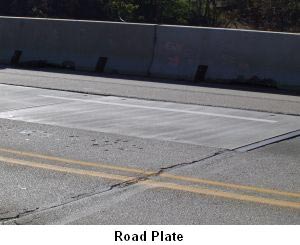

SlipNOT® road plates are used by utility companies, municipalities and transportation companies to keep workers and pedestrians safe in wet and oily conditions.
Product Information:
- Available plate thickness: ¾", 1 ¼", 1 ½" typically
- Available plate width: 4', 5' 6'
- Available plate length: 8, 10', 12'
- Customized shapes and sizes can be fabricated to print specifications.
- Available SlipNOT® surface: Steel
- Available grade: Grade 3 (Coarse)
- Tolerance: Mill
Product Features:
- Advantages: Road plates do not wear smooth or flake after years of high traffic use. SlipNOT® Road plates are ideal in areas where frequent use or exposure to slippery environments increases the risk of accidents and potential public access liability problems.
- Durability: Road plates coated with SlipNOT® have a file hard surface of over 55 Rc with a bond strength of over 4000 psi.
- Finishes: Steel road plates can be ordered with a mill finish, painted, or hot dipped galvanized.
- Slip Resistant Standards: Road plates exceed all requirements for coefficient of friction specified by ANSI, ASTM, NFPA, and OSHA. SlipNOT® ’s coefficient of friction is greater than or equal to .85.
- Fabrication: Road plates can be supplied with lifting handles.
ADA Information:
- SlipNOT® Road plates far exceed all ADA requirements.
