Specialty Deck Systems are available from Epic Metals to enhance the appearance and expand the purpose of a metal deck system. These systems make it unnecessary for a designer to limit the form and function of a building to whatever capabilities basic floor and roof decks possess. The information below is intended to introduce you to Epic Specialty Deck Systems; and to challenge you to incorporate into your next building a product that exceeds ordinary metal deck systems. Please contact Epic Metals for additional information.

Epic has been a manufacturer of quality floor and roof deck products since 1968. Today, our product line features Specialty Deck Systems including:

EPICORE®
Dovetail shaped ribs set this deck section apart from ordinary profiles.

WIDECK
EPIC WIDECK® LONG-SPAN SYSTEMS improvements are the first for long-span metal deck systems since this type of construction was introduced in the 1950’s.

SUPER WIDECK
EPIC METALS SUPER WIDECK® provides the first steel roof and floor system to open the truss or girder spacing in excess of 35 feet.

WIDECK® LONG-SPAN SYSTEMS
Roof or Floor and Ceiling

BENEFITS:
APPEARANCE
Less ribs and joints.

ACOUSTICS
Higher N.R.C. values with the acoustic option.

ECONOMY
A more affordable system.

QUALITY
Roll formed for uniformity and unrestricted lengths.

STRENGTH
Spans up to 32 feet.

VERSATILITY
Ribbed or plated flush appearance.

UTILITY
Eliminates the need for a ceiling system.

DURABILITY
Available in galvanized, prime painted or finish coated.

THE SYSTEM:

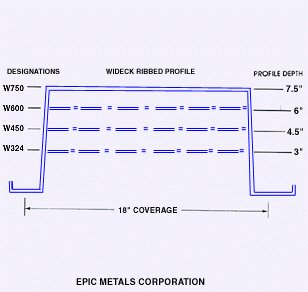

The WIDECK’s profiles with 18 inch coverage are 50% greater than the industry standard profiles width of 12 inches. WIDECK was developed to provide architects and engineers with long-span systems that are attractive and economical for any type of building construction where spanning large open areas is desired.

Design professionals are keenly aware of the benefits that long-span metal deck systems provide. For large clear span areas, most designers prefer the uncluttered appearance of a long-span metal deck system to one that utilizes a maze of steel joists or some other supplementary support. The introduction of WIDECK provides designers with a more affordable long-span metal deck option.

The aesthetically pleasing appearance of the wider profile eliminates the cost and time required for the installation of a suspended ceiling. Additionally, the WIDECK profiles are less costly to produce. Because of their 50% greater profile coverage, they are faster and less expensive to erect. The load carrying capacities of WIDECK compare favorably with that of other long-span metal decks.
