SL60 - thermally broken, aluminum folding panel system

NanaWall SL60 is a thermally broken, aluminum folding panel system designed to provide an opening glass wall or storefront for openings up to 36 feet wide. It is appropriate for mostly residential applications where higher levels of resistance to air and water infiltration are desired. Top hung or floor supported system. Heights up to 9’2" and panel widths up to 3’3" are possible.

Weather-Resistant
The system is engineered to provide weather resistance and high structural performance. The inward-opening unit with raised sill tested to AAMA HGD- R40 with no water entry, even at 18 psf (structural rating not applicable for panels larger than test size). Other independent tests confirm high resistance to water penetration and air infiltration not only when new, but even after 10,000 operation cycles.

Life Cycle Tested-AW
In European life cycle testing (more exacting than AAMA 910-93, with 10,000 cycles instead of 2,500 cycles), the inward opening SL60 had no damage to fasteners, hardware parts, or any other damage that caused the system to be inoperable, and air infiltration and water resistance tests did not exceed Gateway Performance Requirements for Hinged Glass Door, HGD-R40.

NFRC-Approved Thermal Performance
The SL60 with raised sill has been rated, certified and labeled in accordance with NFRC 100.

Acoustical Performance
The SL60 system has been tested by an independent acoustic lab for acoustical performance. The SL60 with STC 39 laminated glass achieved STC and Rw values of 38.

Superior Thermal Break
The system is thermally broken with a 9/16" (14 mm) polyamide plastic reinforced with glass fibers. This thermal barrier provides increased strength, superior humidity control, improved acoustics and energy savings.

Top-Hung or Floor-Mounted
On the top-hung SL 60/o, the main weight is carried by the head track. On the floor-mounted SL 60/u, the lower running carriages ride on top of the sill track. Variable interlocking profiles minimize expansion problems.

Especially for High-Rises: Easy Cleaning Feature

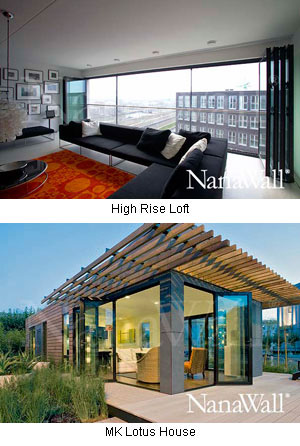

For balcony applications, there is an easy hinge removal option, facilitating glass cleaning from the inside.

Dual Color Options
Hundreds of high quality anodized and powder-coated finishes are available. For the SL60, the option of different finishes on the inside and outside is also available.

Performance Criteria
See attached technical data and 3-part Specification for a full list of features and options. And, visit www.nanawall.com for compliance with testing standards and complete details.
